Console, Floor: Removal

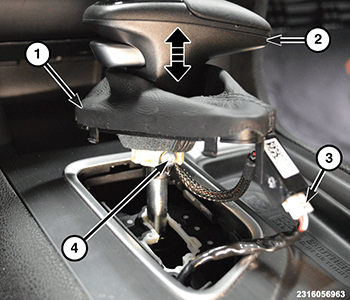

GC0170308Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Using a trim stick or equivalent, carefully release the retaining clips and lift the shifter bezel (1).
  3. Remove the shifter knob (2). Refer to REMOVAL .

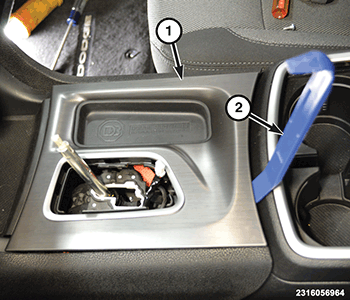

    GC0170250Courtesy of CHRYSLER GROUP, LLC
  4. Using a trim stick (2) or equivalent, remove the shifter bezel (1).
    GC0170662Courtesy of CHRYSLER GROUP, LLC
  5. Remove the two screws (2) securing the storage bin (1).
  6. Pull the storage bin out to release the retaining clips.
  7. Disconnect the wire harness connectors and remove the storage bin.

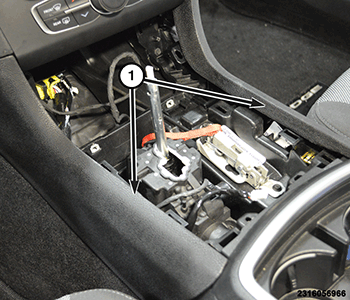

    GC0170726Courtesy of CHRYSLER GROUP, LLC
  8. Using a trim stick or equivalent, remove the floor console side close out panels (1).

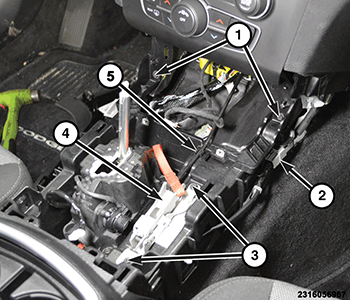

    GC0170620Courtesy of CHRYSLER GROUP, LLC
  9. Disconnect the wire harness connector (2).
  10. Remove the two screws (1) at the front of the floor console.
  11. Unclip the manual park release cable (5), if equipped.
  12. Remove the two screws (3) and position the manual park release (4) aside, if equipped.
    GC0170776Courtesy of CHRYSLER GROUP, LLC
  13. Open the floor console lid and remove the coin holder bin and the mat bin.
  14. Remove the four screws (1) from the rear bin that secure the floor console to the floor.
    GC0170695Courtesy of CHRYSLER GROUP, LLC
  15. Slide the floor console slightly rearward and tilt up. Disconnect the wire harness connectors and remove the floor console.
