Cap, Instrument Panel End: Removal

NOTE:

Left side shown in illustration, right side similar.

GC0170791Courtesy of CHRYSLER GROUP, LLC
  1. Lift the cowl side trim panel (1) at the rear, then pull rearward and remove.

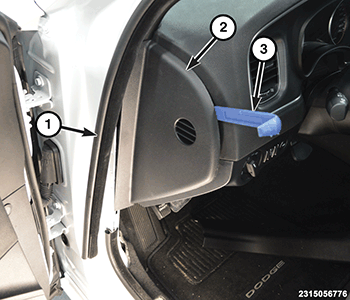

    GC0170793Courtesy of CHRYSLER GROUP, LLC
  2. Partially remove the front door weatherstrip (1).
  3. Using a trim stick (3) or equivalent, remove the instrument panel end cap (2).
