Absorber, Front Energy: Removal

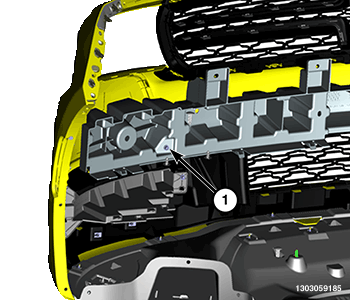

GC0170640Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .
  2. Remove the two screws (1).

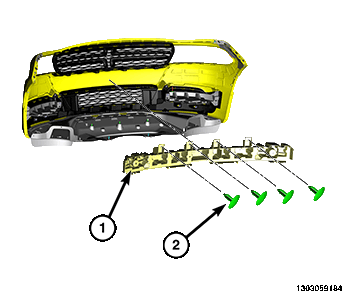

    GC0170604Courtesy of CHRYSLER GROUP, LLC
  3. Remove the push pin fasteners (2) and remove the absorber.
