Lamp, Fog: Removal: Lamp

  1. Disconnect and isolate the battery negative cable.
  2. Raise and support the vehicle.
  3. Remove the front belly pan from the underbody. Refer to BELLY PAN, REMOVAL .
    GC0170749Courtesy of CHRYSLER GROUP, LLC

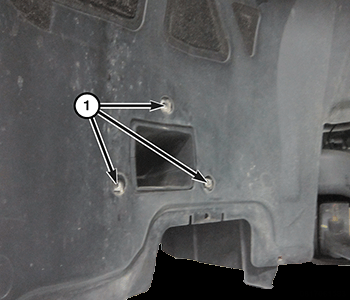

  4. Remove three ventilation plenum screws (1) located on the front portion of the wheel well liner.
    GC0170673Courtesy of CHRYSLER GROUP, LLC

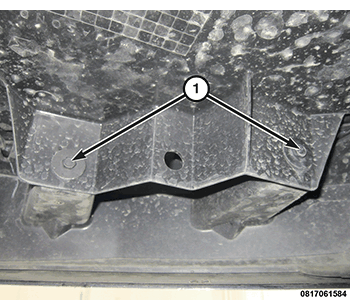

  5. Remove two screws (1) that secure the ventilation plenum to the fascia.
  6. Disconnect the wiring harness connector from the back of the fog lamp assembly.
  7. Remove three bolts securing the fog lamp assembly to the vehicle.
  8. Pull the plastic pin connecting the fog lamp wiring harness to the fog lamp assembly.
  9. Remove the fog lamp assembly from the vehicle.
