Instrument Cluster (Service Information): Installation
- Position the cluster into instrument panel opening and connect the wire harness connector.

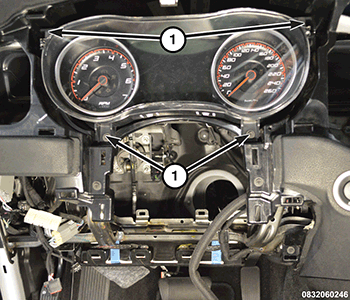

- Install the four screws (1) that secure the instrument cluster to the instrument panel. The column does not need to be removed to access the screws. Illustration shown with steering column removed for clarity only.
- Install the instrument cluster bezel. Refer to BEZEL, INSTRUMENT CLUSTER, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.NOTE:
If the cluster has been replaced, the replacement cluster should be programmed with the correct mileage. Use the scan tool to verify the correct mileage.
