Bezel, Instrument Cluster: Installation

STANDARD MODEL

Courtesy of CHRYSLER GROUP, LLC

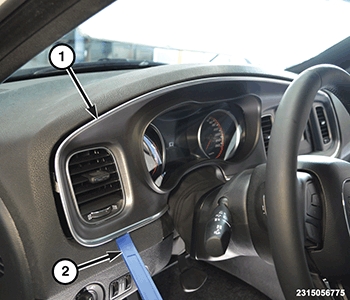

1. Position the instrument cluster bezel (1) and hand tap to engage the retaining clips.

PURSUIT MODEL

Courtesy of CHRYSLER GROUP, LLC

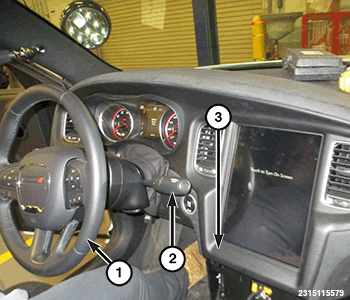

1. Position the instrument cluster bezel (3) and hand tap to engage the retaining clips.

   Courtesy of CHRYSLER GROUP, LLC

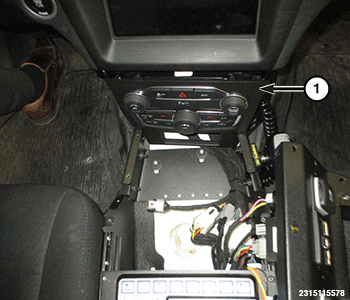

2. Position the HVAC controls (1) and hand tap to engage the retaining clips.

   Courtesy of CHRYSLER GROUP, LLC

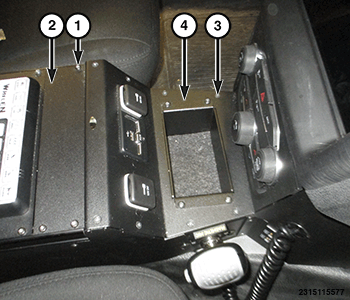

3. Install the front plate (4), then the spacer plate (2).
