Striker, Seat Back, Second Row: Removal

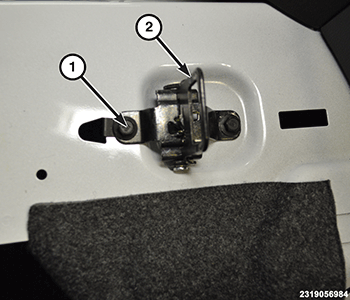

GC0170619Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear shelf panel. Refer to PANEL, REAR SHELF, REMOVAL .
  2. Remove the bolts (1) and the seat back striker (2).
