Panel, Rear Shelf: Removal

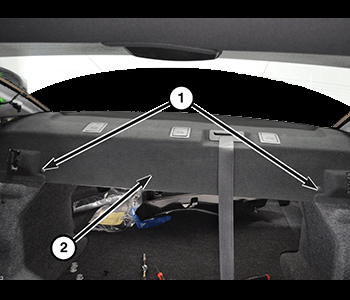

GC0170820Courtesy of CHRYSLER GROUP, LLC
  1. Remove the upper C-pillar trim panels. Refer to PANEL, C-PILLAR TRIM, REMOVAL .
  2. Remove the rear seat belt anchor nut. Refer to RETRACTOR, SEAT BELT, REMOVAL .
  3. Remove the two push fasteners (1).
  4. Pull the rear shelf trim (2) forward to disengage the retaining hook from the rear shelf.
  5. Feed the rear seat belt through the opening in the rear shelf panel and remove.
