Glove Box

Courtesy of CHRYSLER GROUP, LLC

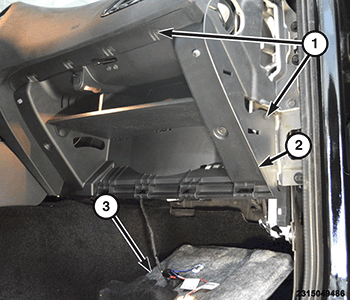

NOTE:

Shown with the glove box door removed, but not necessary.

Remove the instrument panel end cap. Refer to CAP, INSTRUMENT PANEL END, REMOVAL .
Remove the push fasteners, disconnect the wire harness connector and remove the instrument panel closeout (3).
Remove the eight screws (1).
Pull out on the glove box (2) to release the retainer clips.
Disconnect the wiring harness connectors from the glove box and remove.
