Plate, Carrier: Removal

Courtesy of CHRYSLER GROUP, LLC

Raise the window to it's fully up position.
Remove the exterior handle. Refer to HANDLE, EXTERIOR, REMOVAL .
Remove the screw (1) from under the exterior handle.
Disconnect and isolate the battery negative cable.
Remove the rear door trim. Refer to PANEL, REAR DOOR TRIM, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

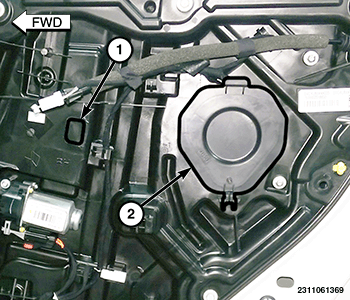

Carefully remove the closeout plug (1) covering the front window regulator access hole.

Courtesy of CHRYSLER GROUP, LLC

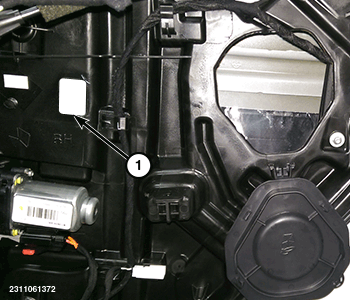

Temporarily install the window switch pod, reconnect the negative battery cable and lower the window until the white regulator tab is visible in the access hole (1).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Typical glass shown in illustration, 300 is similar.
Using a small round bladed tool (2) or equivalent, release the door glass (1) from the window regulator glass sliders (3).
Secure the window glass into place with a wedge or tape.
Disconnect the negative battery cable and remove the window switch pod.
Disconnect the door harness from the vehicle body harness.

Courtesy of CHRYSLER GROUP, LLC
Open the latch access panel (3).
Remove the screws (2) from the harness grommet/bracket (1).
Remove the harness grommet/bracket (1) from the door.

Courtesy of CHRYSLER GROUP, LLC

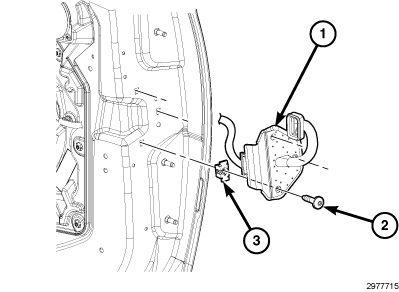

Remove the exterior door handle. Refer to HANDLE, EXTERIOR, REMOVAL .

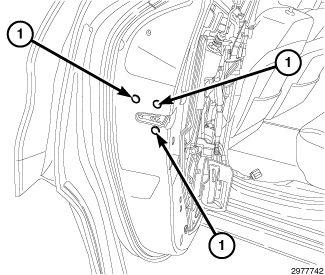

Remove the rear door latch screws (1).

Courtesy of CHRYSLER GROUP, LLC

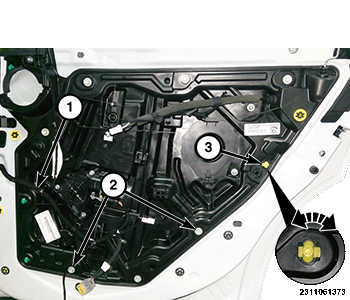

Disconnect the rear door wiring harness (1) from all door carrier motors, sensors and the latch.
Remove the seven carrier plate bolts (2).
Disengage the three carrier plate torx head retainers (3).

Courtesy of CHRYSLER GROUP, LLC

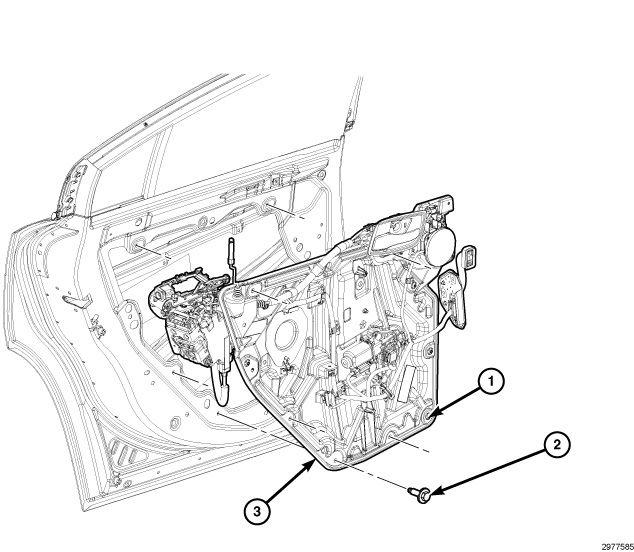

Remove the carrier plate (3) from the rear door.
