Handle, Exterior: Removal

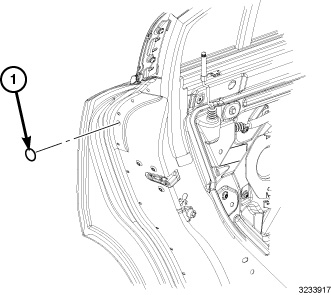

GC0145206Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the outside door handle fastener cover (1).
  3. Through the access hole, remove the T-20 torx fastener from the handle.

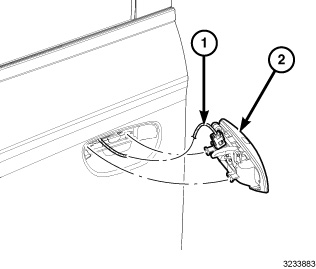

    GC0145205Courtesy of CHRYSLER GROUP, LLC
  4. Push the handle (1) forward and outward to disengage from the door.
  5. Disconnect the electrical connector (1), if equipped.
  6. Remove the handle from the outside of the door.
