Plate, Carrier, Police: Removal

Courtesy of CHRYSLER GROUP, LLC

Raise the window to it's fully up position.
Disconnect and isolate the battery negative cable.

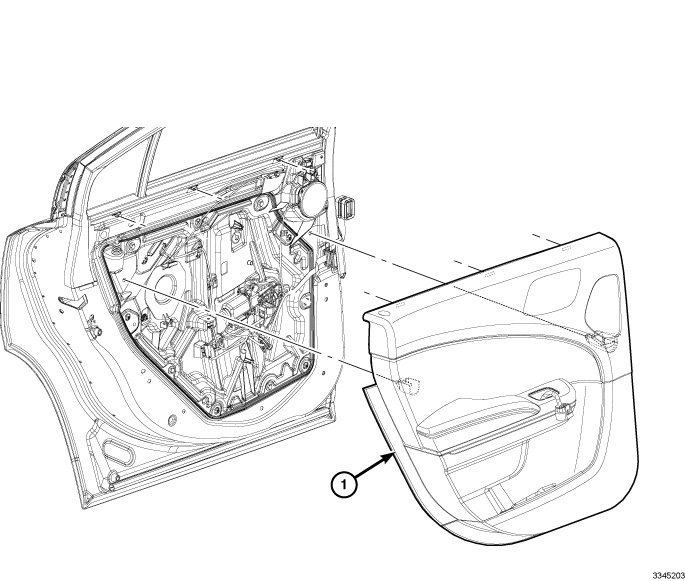

Remove the rear door trim (1). Refer to PANEL, REAR DOOR TRIM, POLICE, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

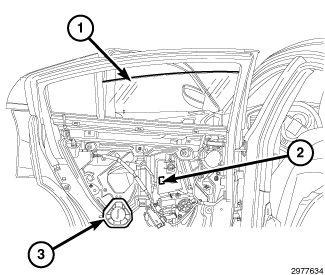

Open the latch access panel (3).
Remove the cover from the access hole (2).
Temporarily install the window switch pod, reconnect the negative battery cable and lower the window until the white regulator tab is visible in the access hole (2, 3).
With the help of an assistant holding the glass (1), release the window regulator tab and lift the window up.
Secure the window glass (1) into place with a wedge or tape.
Disconnect the negative battery cable and remove the window switch pod.
Disconnect the door harness from the vehicle body harness.

Courtesy of CHRYSLER GROUP, LLC
Remove the screws (2) from the harness grommet/bracket (1).
Remove the harness grommet/bracket (1) from the door.

Courtesy of CHRYSLER GROUP, LLC

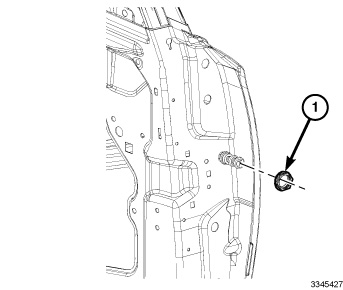

Remove the retaining nut (1) securing the manual lock knob to the door.

Courtesy of CHRYSLER GROUP, LLC
Remove the exterior door handle. Refer to HANDLE, EXTERIOR, REMOVAL .
Remove the rear door latch screws (1).

Courtesy of CHRYSLER GROUP, LLC

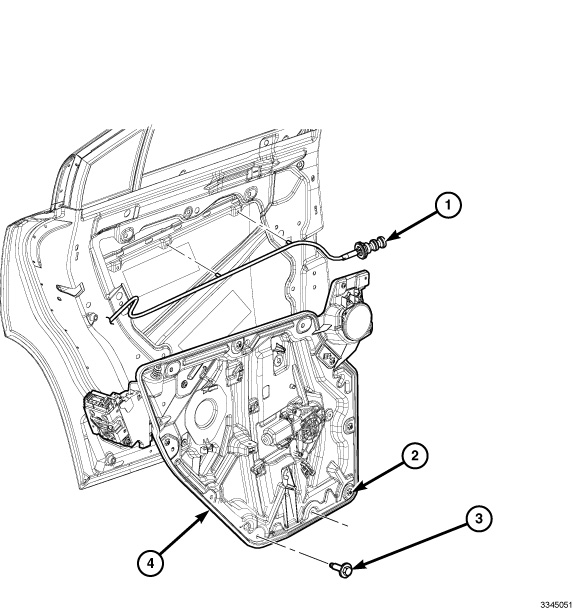

Remove the seven carrier plate bolts (3).
Disengage the four carrier plate torx head retainers (2).
Re-position the carrier plate (4) away from the rear door.
Unclip the manual lock knob assembly (1) from the retaining clips located inside the door cavity.
Remove the carrier plate (4) from the rear door.
