Plate, Carrier: Removal

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the battery negative cable.
Remove the exterior handle. Refer to HANDLE, EXTERIOR, REMOVAL .

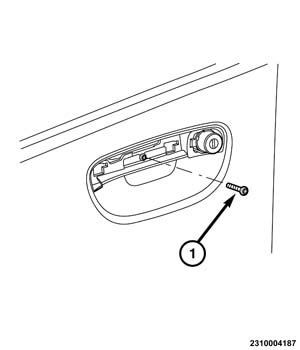

Remove the screw (1) from under the exterior handle.
Remove the front door trim, Refer to PANEL, DOOR TRIM, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Open the latch access panel (1) located on the carrier plate near the lock rod assembly.

Courtesy of CHRYSLER GROUP, LLC

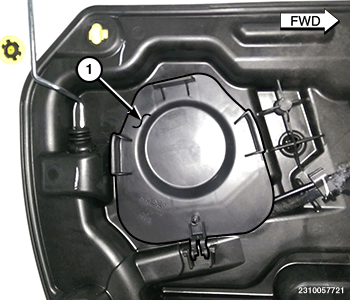

Carefully remove the closeout plug (1) covering the front window regulator access hole located just behind the electronic mirror module.

Courtesy of CHRYSLER GROUP, LLC

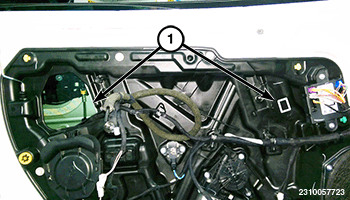

Temporarily install the window switch pod, reconnect the negative battery cable and lower the window until the white regulator tabs are visible in both access holes (1).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Typical glass shown in illustration, Charger is similar.
Using a small round bladed tool (2) or equivalent, release the door glass (1) from the window regulator glass sliders (3).
Secure the window glass into place with a wedge or tape.
Disconnect the negative battery cable and remove the window switch pod.

Courtesy of CHRYSLER GROUP, LLC

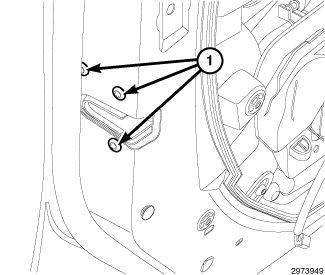

Remove the front door latch mounting screws (1).

Courtesy of CHRYSLER GROUP, LLC

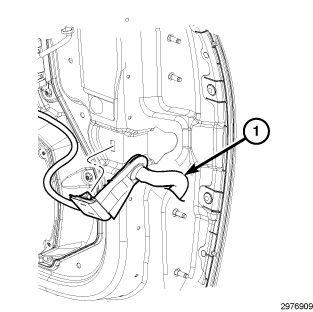

Remove the front door harness wiring (1) bracket from the front of the door.

Courtesy of CHRYSLER GROUP, LLC

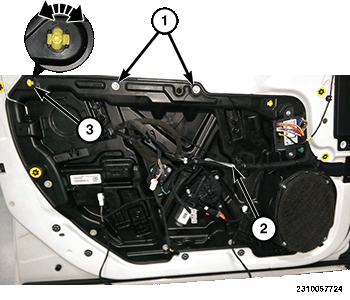

Disconnect the front door wiring harness (2) from all door carrier motors, modules, sensors and the latch.
Remove the front door wiring harness (2) from the front door carrier plate.
If necessary, disconnect the link rods from the rear of the exterior handle assembly.
Remove the six carrier plate bolts (1).
Disengage the four carrier plate torx head retainers (3).

Courtesy of CHRYSLER GROUP, LLC

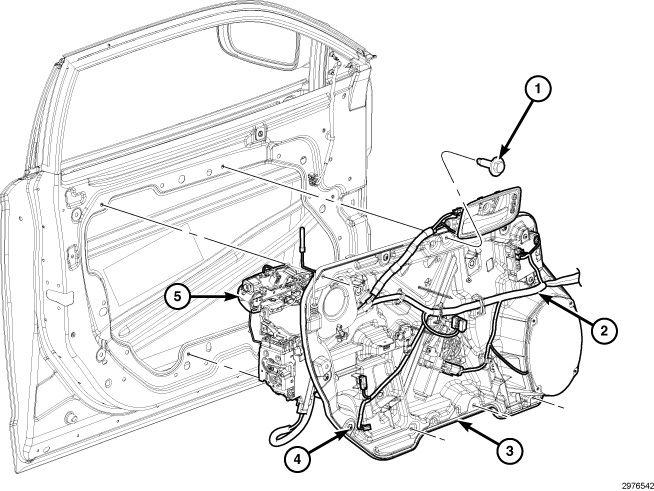

Remove the carrier plate (3) from the front door.
If servicing the latch, separate the presenter and the latch from the carrier plate.
