Striker, Latch: Removal

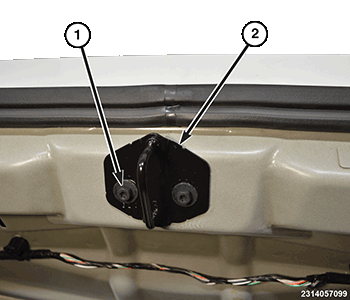

GC0170606Courtesy of CHRYSLER GROUP, LLC
  1. Remove the trunk trim panel. Refer to PANEL, TRUNK TRIM, REAR, REMOVAL .
  2. Using a grease pencil or equivalent, mark the position of the decklid latch striker (2) to aid in installation.
  3. Remove the bolts (1) and the decklid latch striker.
