Panel, Trunk Trim, Rear: Removal

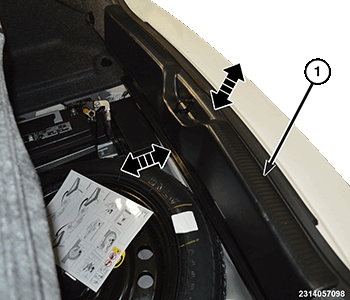

GC0170838Courtesy of CHRYSLER GROUP, LLC
  1. Open the load floor.
  2. Pull forward at the bottom of the trunk trim panel (1) to release the lower retaining clips.
  3. Lift the trunk trim panel up to release the upper retaining clips and remove.
