EGR Cooler Leak Test

WARNING: This page is about a different car, the 2016 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

multimedia:A supplement to the article is available.

First perform a cooling system pressure test. Refer to PRESSURE TESTER METHOD .
NOTE:
If the cooling system has been losing coolant and there are no external leaks showing, the EGR cooler may be leaking internally.
If the leak has not been found, using this method, it may be necessary to remove the EGR cooler and perform a bench test.
Remove the EGR cooler and place on a bench for testing. Refer to COOLER, EXHAUST GAS RECIRCULATION (EGR), REMOVAL .

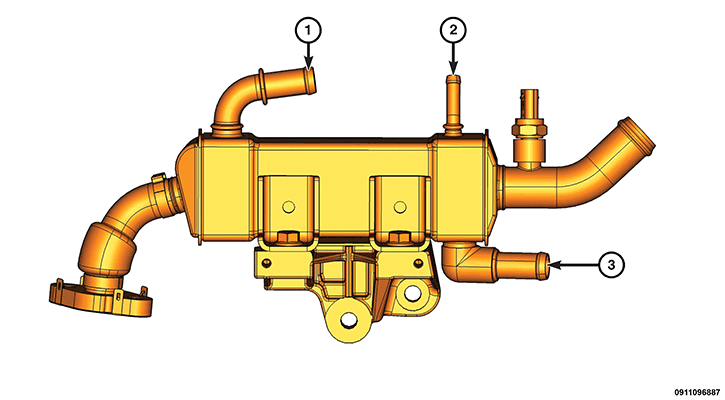

Fig 1: EGR Cooler Coolant Inlet Port, Smaller Inlet Port & Outlet Port
Courtesy of CHRYSLER GROUP, LLC
Install a plug into the EGR cooler coolant inlet port (1) and outlet port (3).
In the smaller inlet port (2), install the vacuum test adapter.
NOTE:
The plug and the adapter must have an air tight fit to prevent misdiagnosis.
Pump up the commercially available vacuum tool, while observing the pressure gauge, the vacuum should remain steady.
If the EGR cooler does not hold a vacuum, the EGR cooler has an internal leak and must be replaced.
If the EGR cooler holds vacuum, then refer to the engine internal leakage inspection. Refer to INTERNAL LEAKAGE INSPECTION .
