Idler Bracket

5.7L IDLER BRACKET

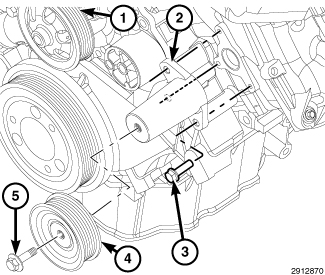

NOTE: The idler bracket takes the place of the power steering pump on the vehicles that use electronic power steering.





1. Remove the accessory drive belt Serpentine Accessory Drive Belt - Removal.
2. Remove the idler pulley (4) from the idler bracket (2).
3. Remove the three mounting bolts (3) that hold the idler bracket (2) to the block.
