Headlamp Leveling Motor - Export: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the appropriate headlamp unit (Refer to HEADLAMP UNIT - REMOVAL ).
  3. Disconnect the headlamp leveling motor electrical connector (Fig 1). Depress the steel retaining clip while pulling the connector from the motor.

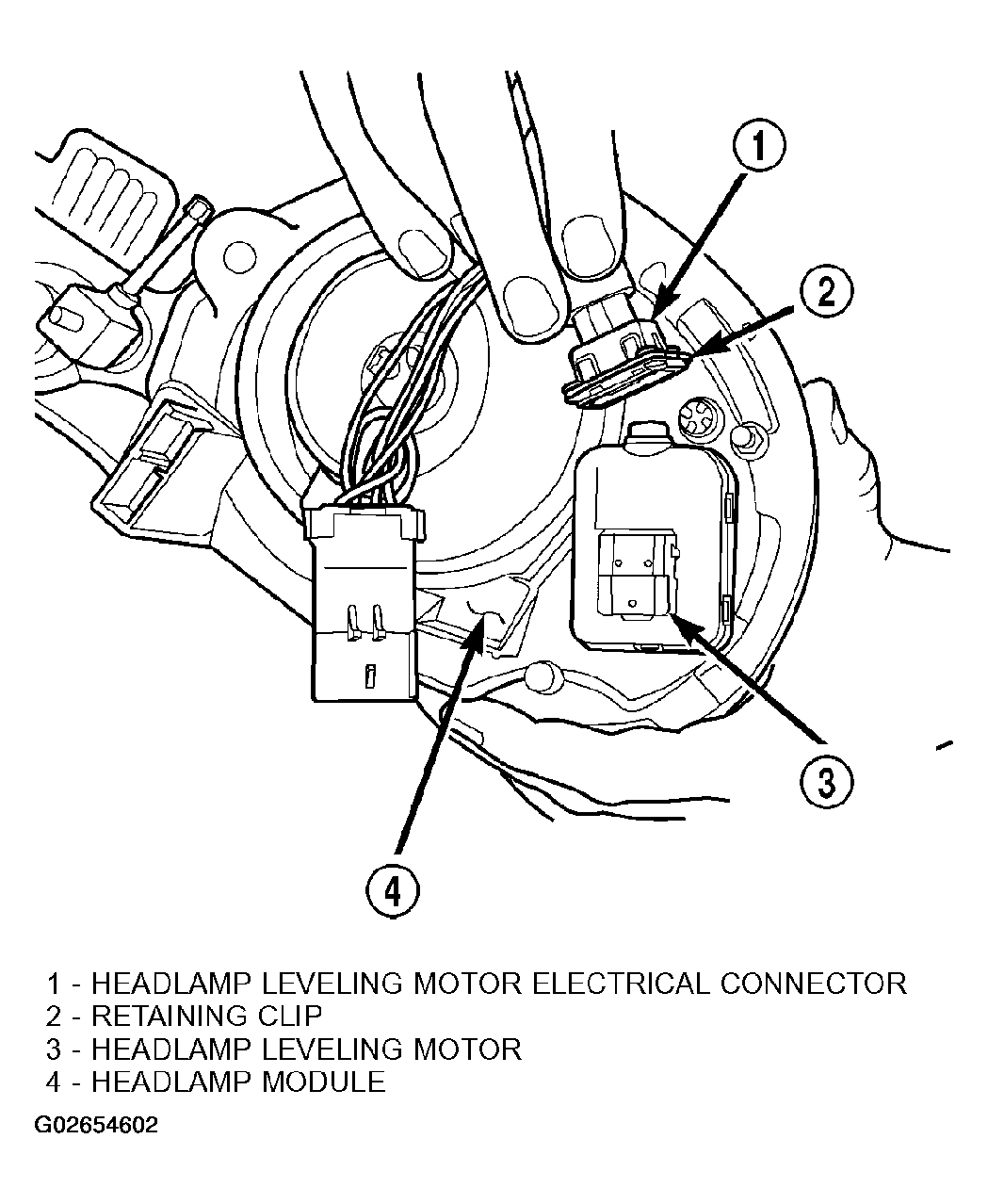

    Fig 1: Connecting Headlamp Leveling Motor Electrical Connector
    G02654602Courtesy of DAIMLERCHRYSLER CORP.
  4. Rotate the headlamp leveling motor and pull it straight out of the headlamp module (Fig 1).
    5. NOTE: Significant force will be required to unsnap the ball and socket connection between the headlamp leveling motor and the headlamp unit.
  5. Separate the ball and socket from the motor.
