Headlamp Unit: Removal

  1. Disconnect and isolate the battery negative cable.

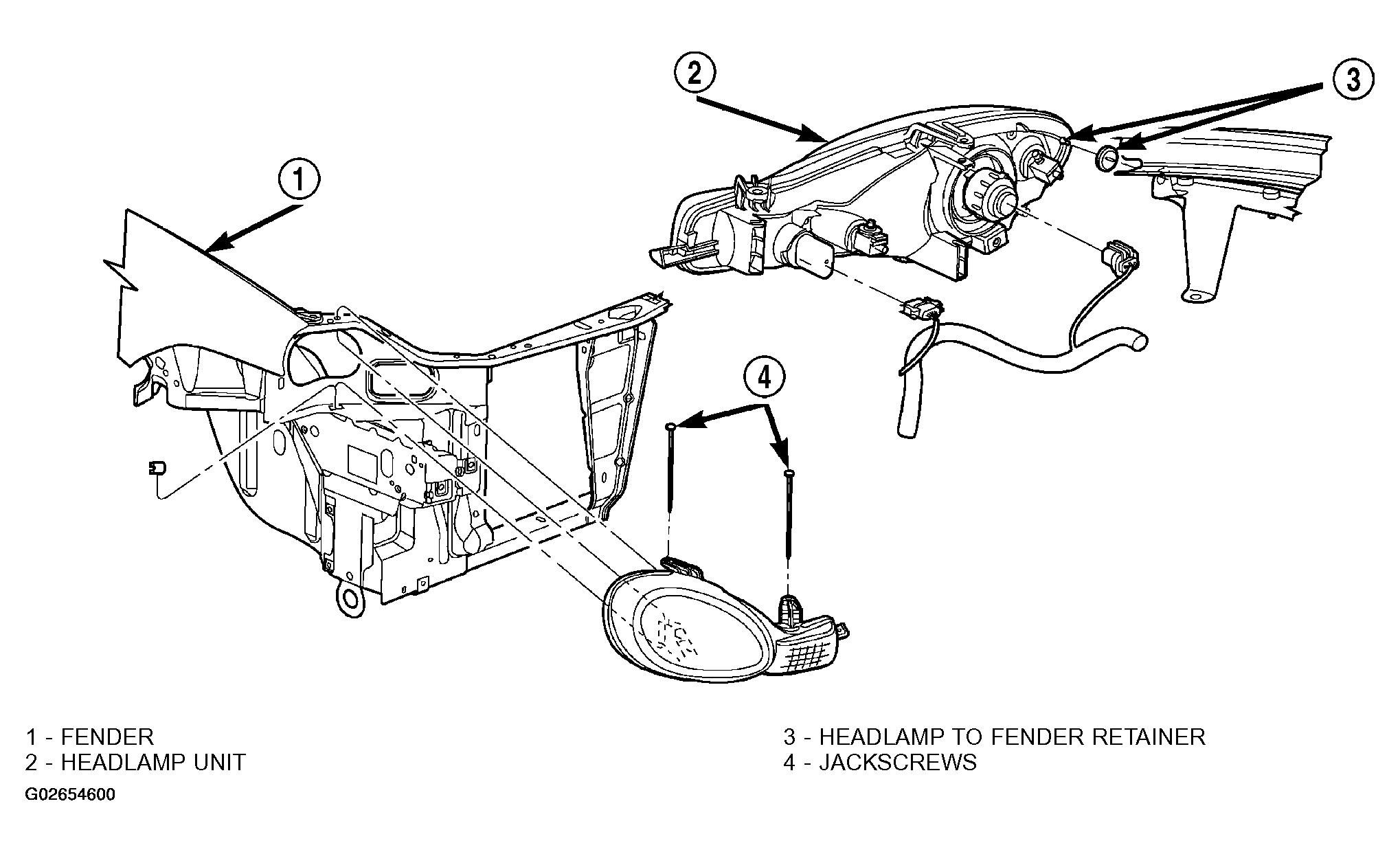

  2. Remove screws attaching headlamp module to upper crossmember.
  3. Remove headlamp module from vehicle.

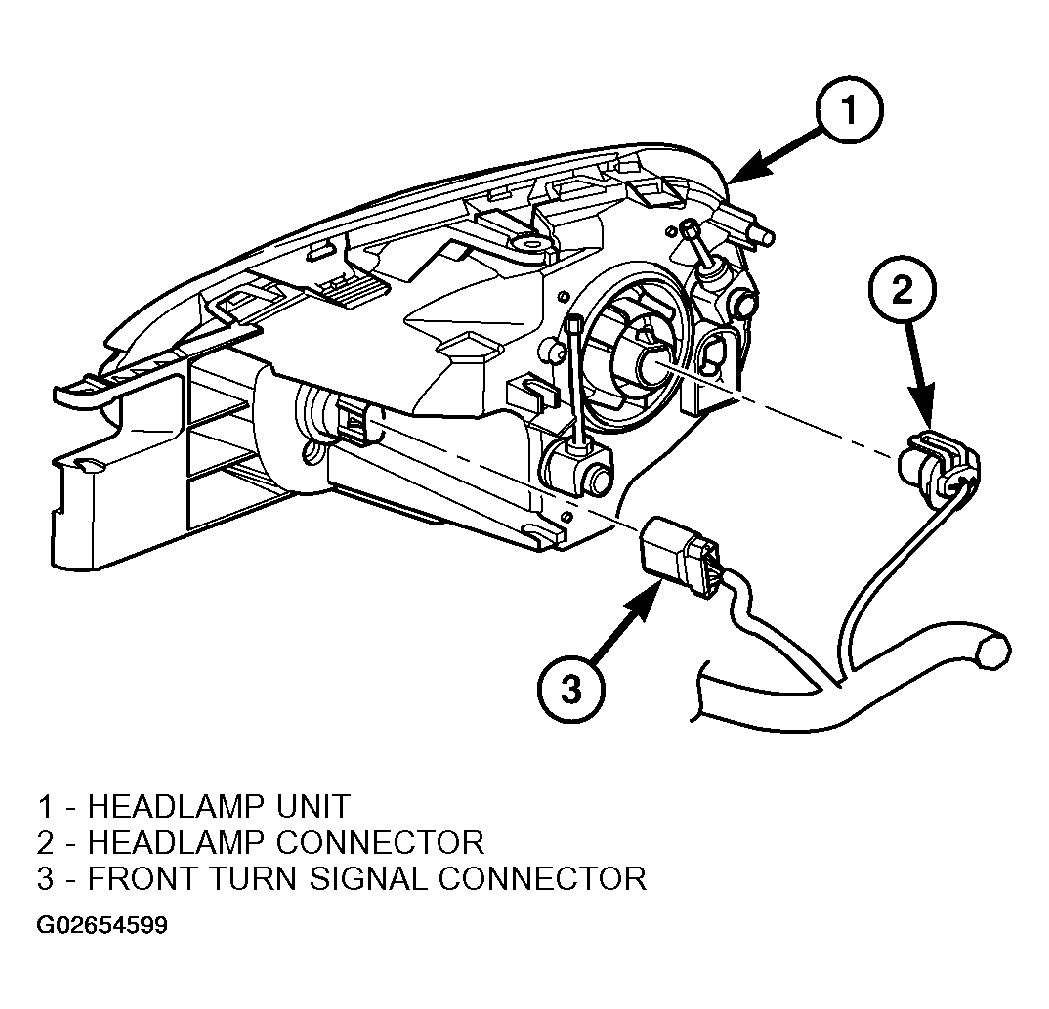

  4. Disconnect wire connector from back of headlamp (Figure).
  5. Remove bulb from headlamp unit (Figure).
