Valve Body: Operation: Notes

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Refer to SCHEMATICS AND DIAGRAMS ) for a visual Fluid in determining valve location, operation and design.

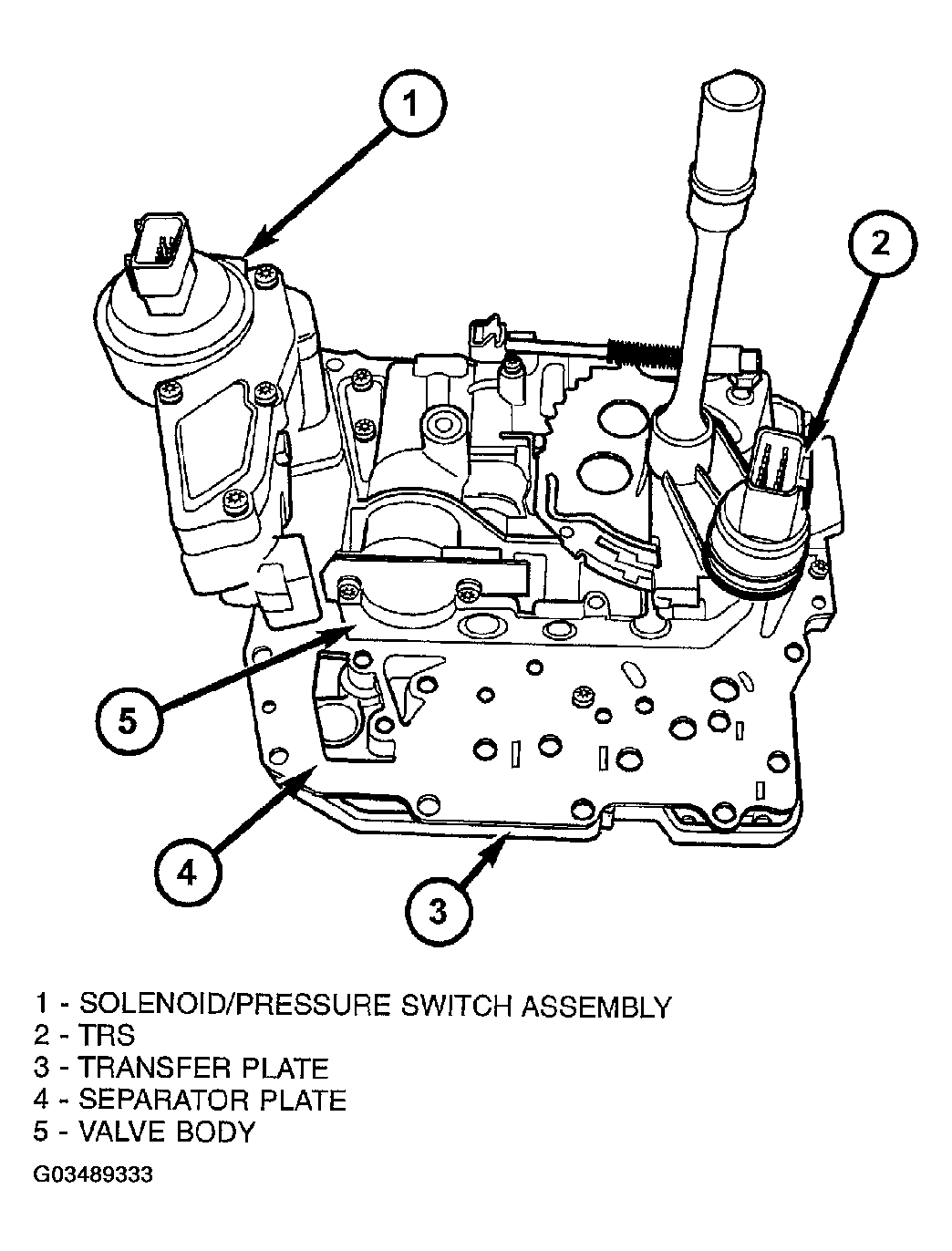

Fig 1: Identifying Components Valve Body Assembly

Courtesy of DAIMLERCHRYSLER CORP.
