Schematics And Diagrams - 42RLE Transmission

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

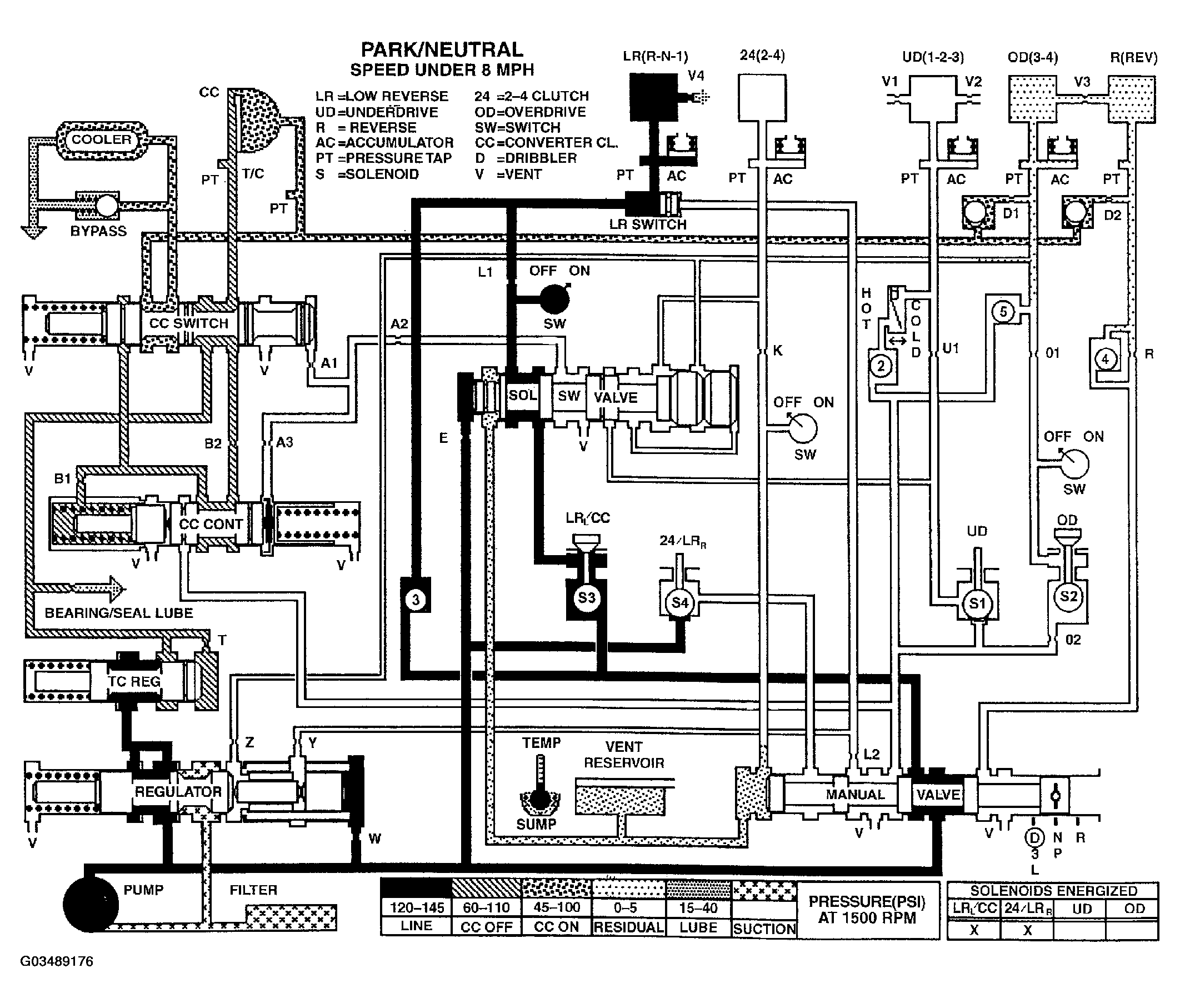

Fig 1: Schematics Diagrams - Park/Neutral

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Schematics Diagrams - Neutral

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Schematics Diagrams - Reverse

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Schematics Diagrams - Reverse Block

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Schematics Diagrams - First Gear

Courtesy of DAIMLERCHRYSLER CORP.

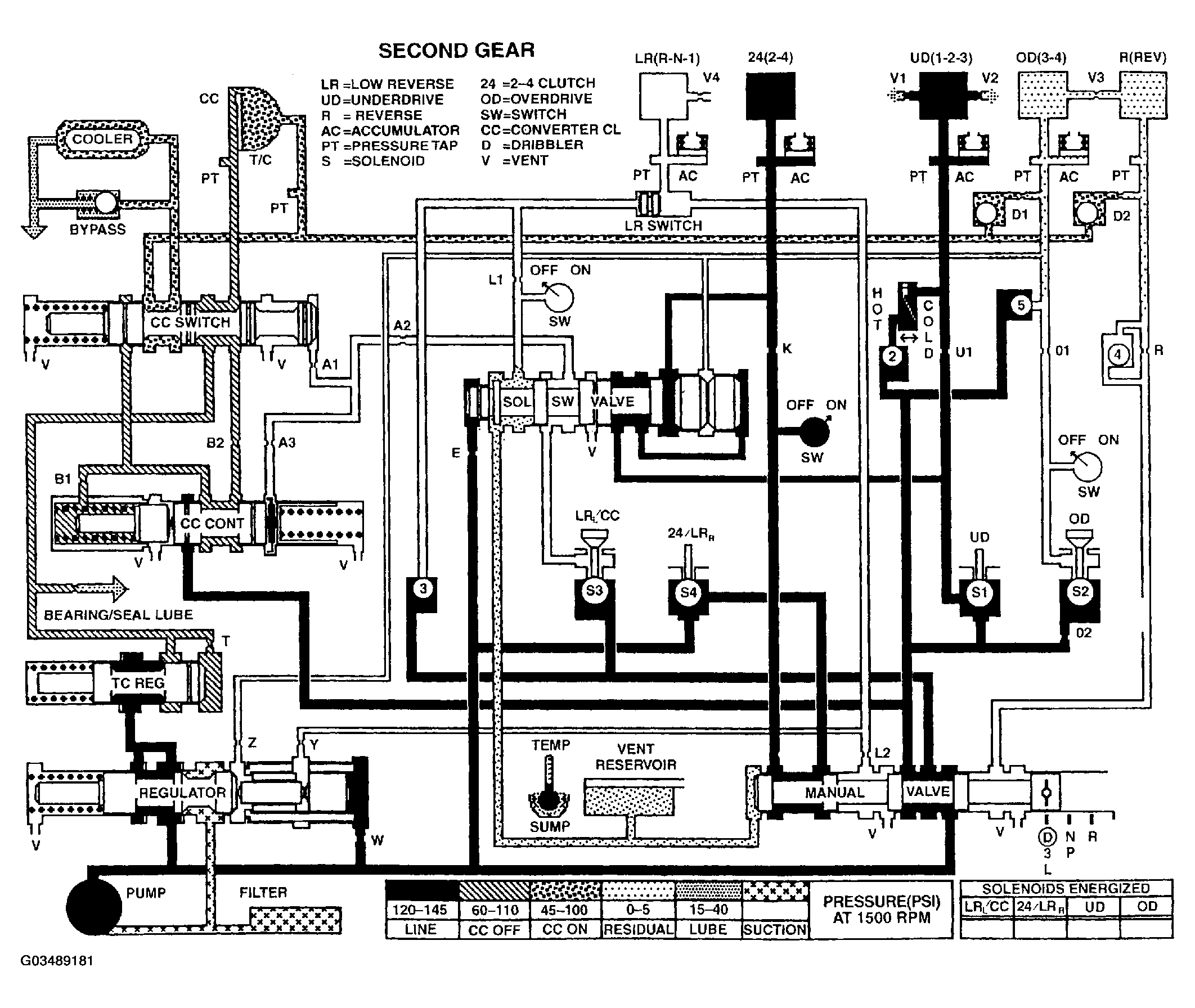

Fig 6: Schematics Diagrams - Second Gear

Courtesy of DAIMLERCHRYSLER CORP.

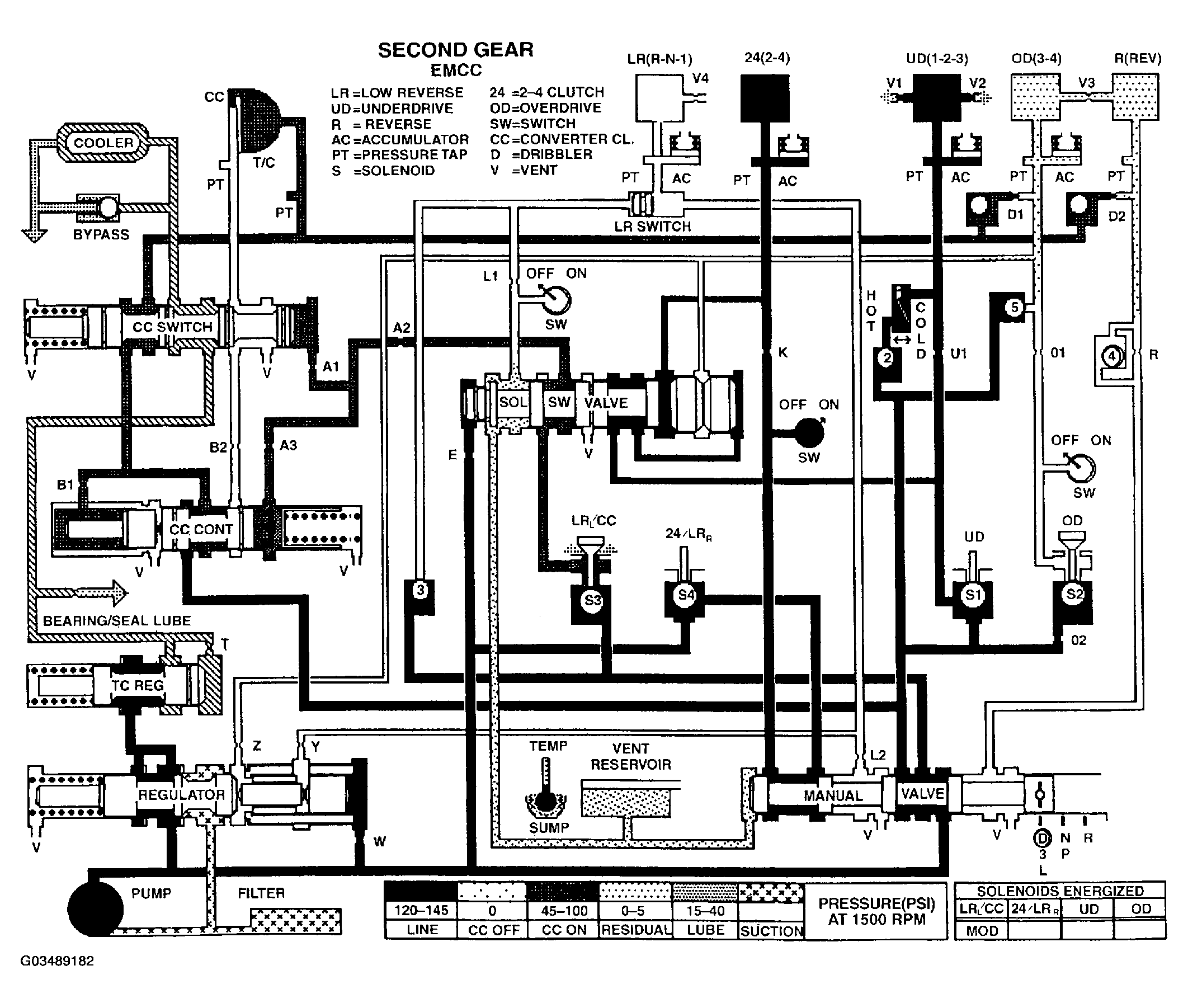

Fig 7: Schematics Diagrams - Second Gear (EMCC)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Schematics Diagrams - Direct Gear

Courtesy of DAIMLERCHRYSLER CORP.

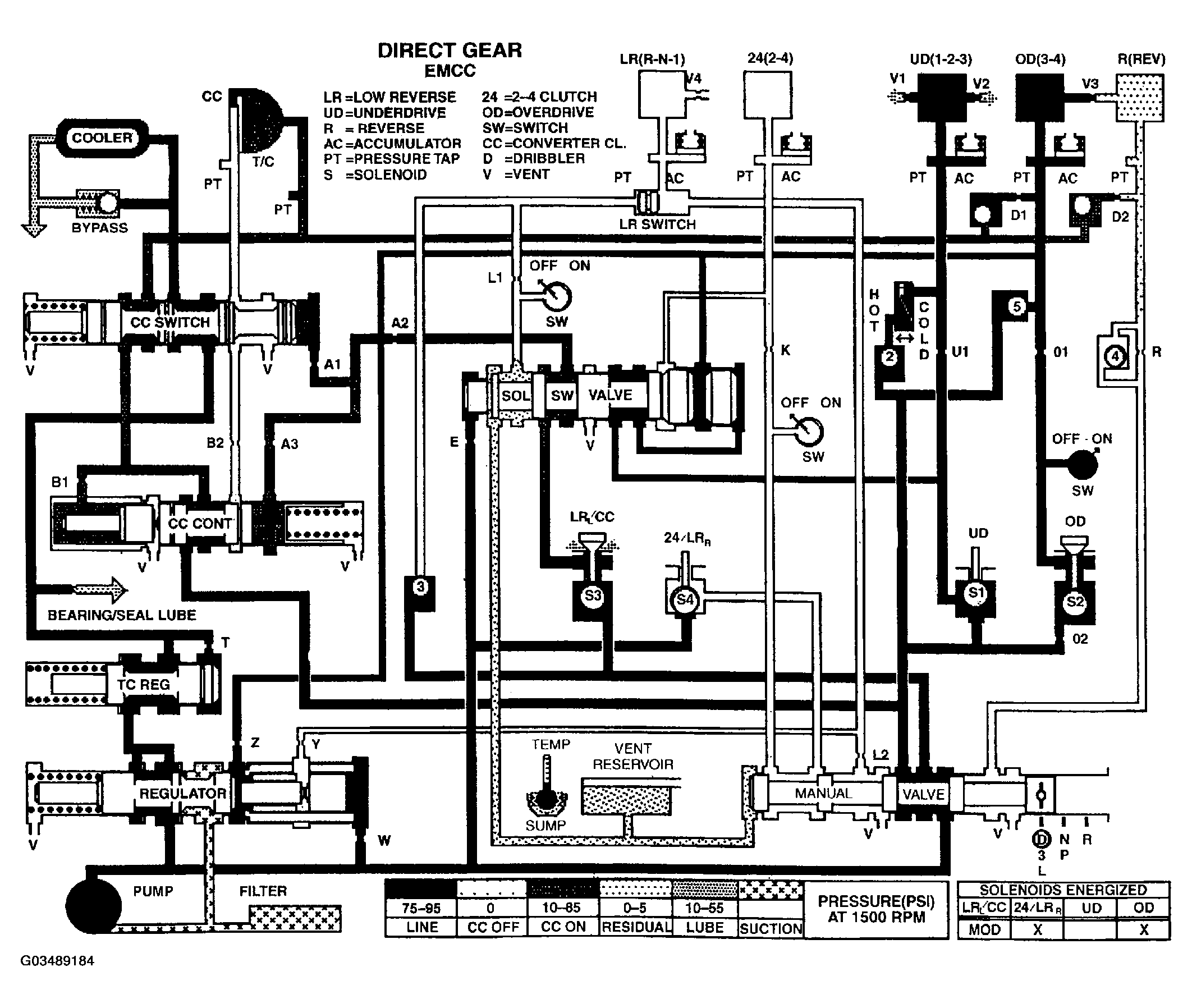

Fig 9: Schematics Diagrams - Direct Gear (EMCC)

Courtesy of DAIMLERCHRYSLER CORP.

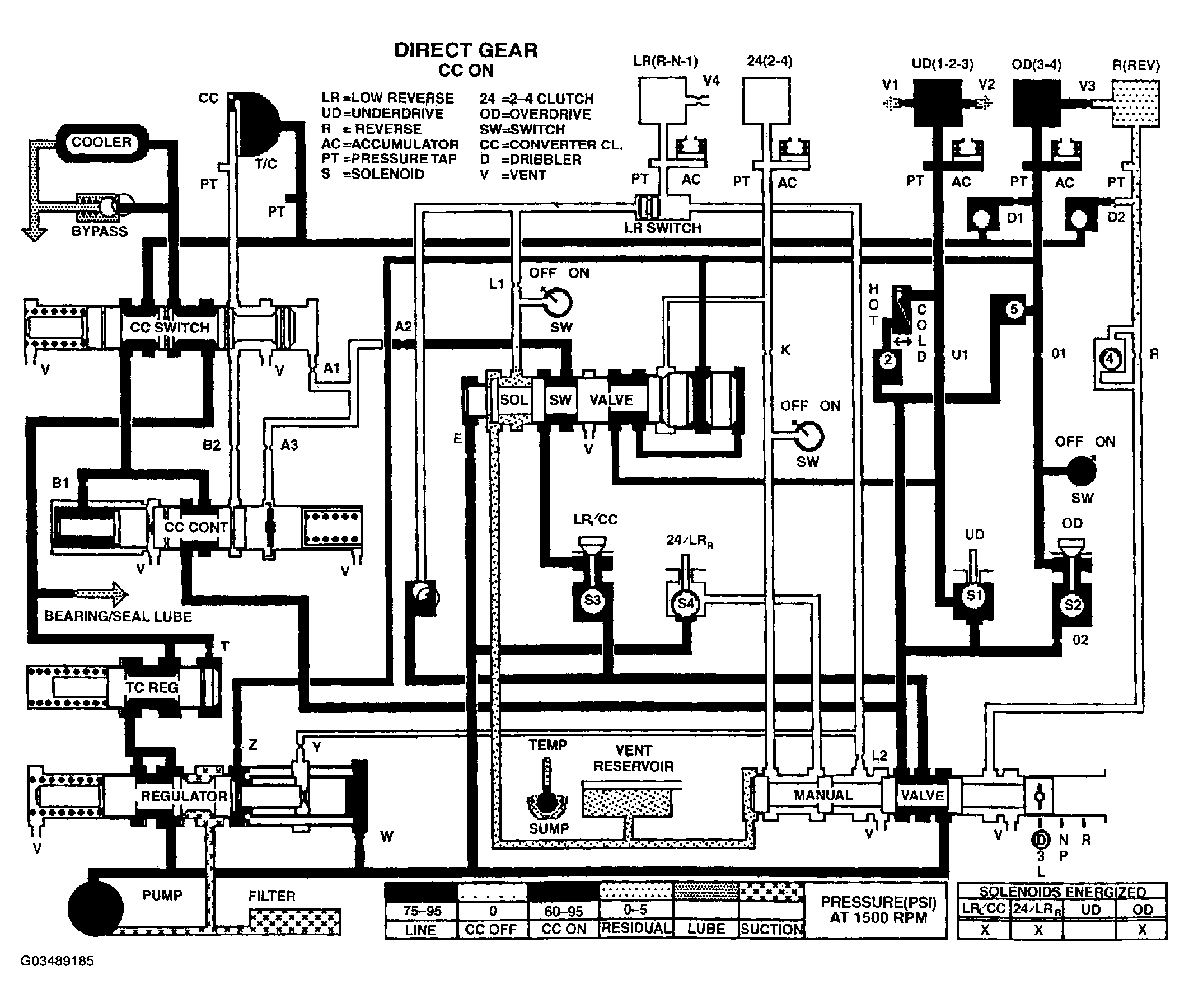

Fig 10: Schematics Diagrams - Direct Gear (CC On)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Schematics Diagrams - Overdrive

Courtesy of DAIMLERCHRYSLER CORP.

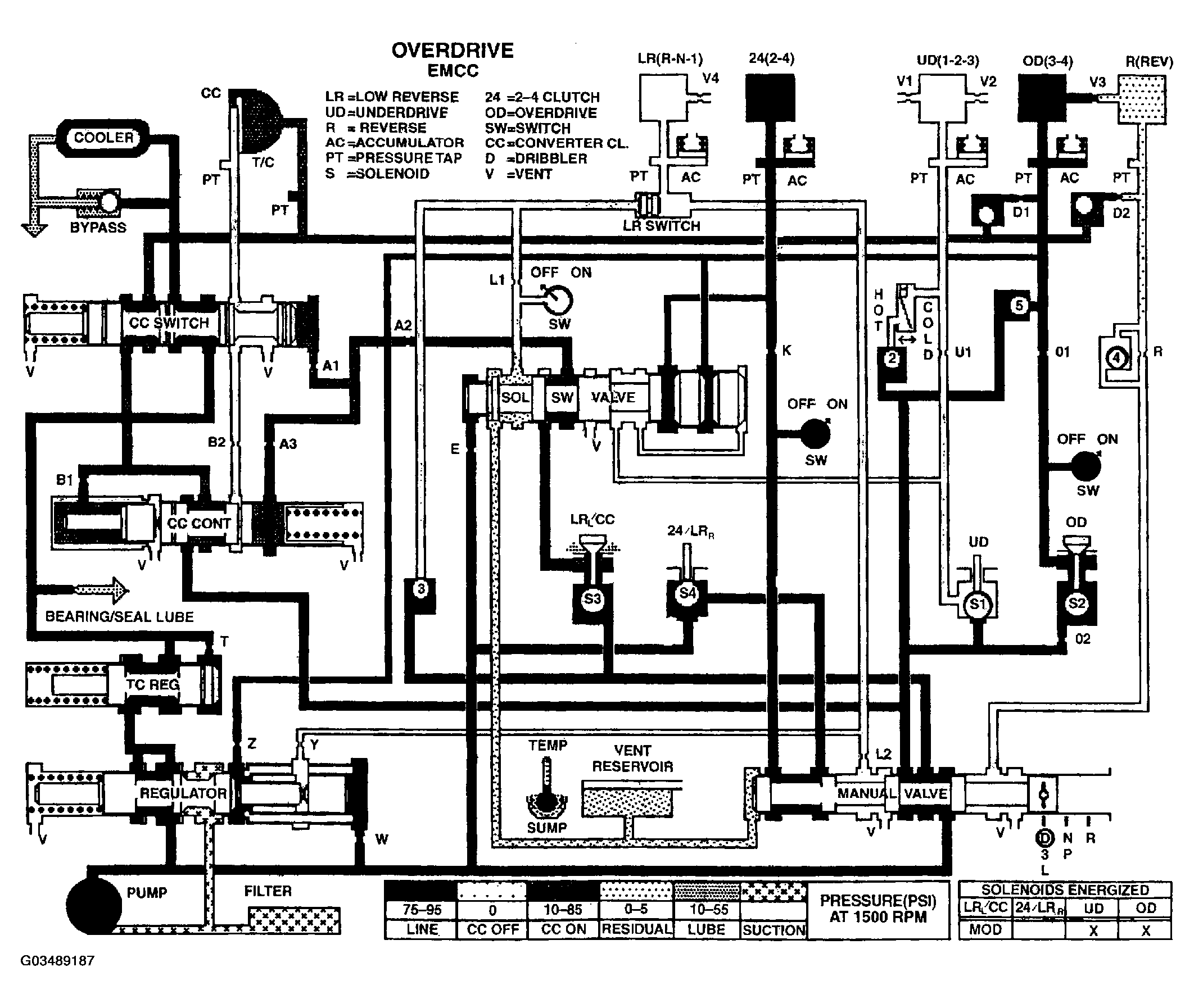

Fig 12: Schematics Diagrams - Overdrive (EMCC)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Schematics Diagrams - Overdrive (CC On)

Courtesy of DAIMLERCHRYSLER CORP.
