Timing Belt / Chain Cover(S): Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable.
  2. Drain cooling system (Refer to STANDARD PROCEDURE - DRAINING COOLING SYSTEM ).
  3. Remove electric cooling fan and fan shroud assembly (Refer to RADIATOR FAN - ELECTRIC ).
  4. Remove fan and fan drive assembly (Refer to RADIATOR FAN - VISCOUS ).
  5. Disconnect both heater hoses at timing cover.
  6. Disconnect lower radiator hose at engine.
  7. Remove accessory drive belt tensioner assembly (Fig 1 ).

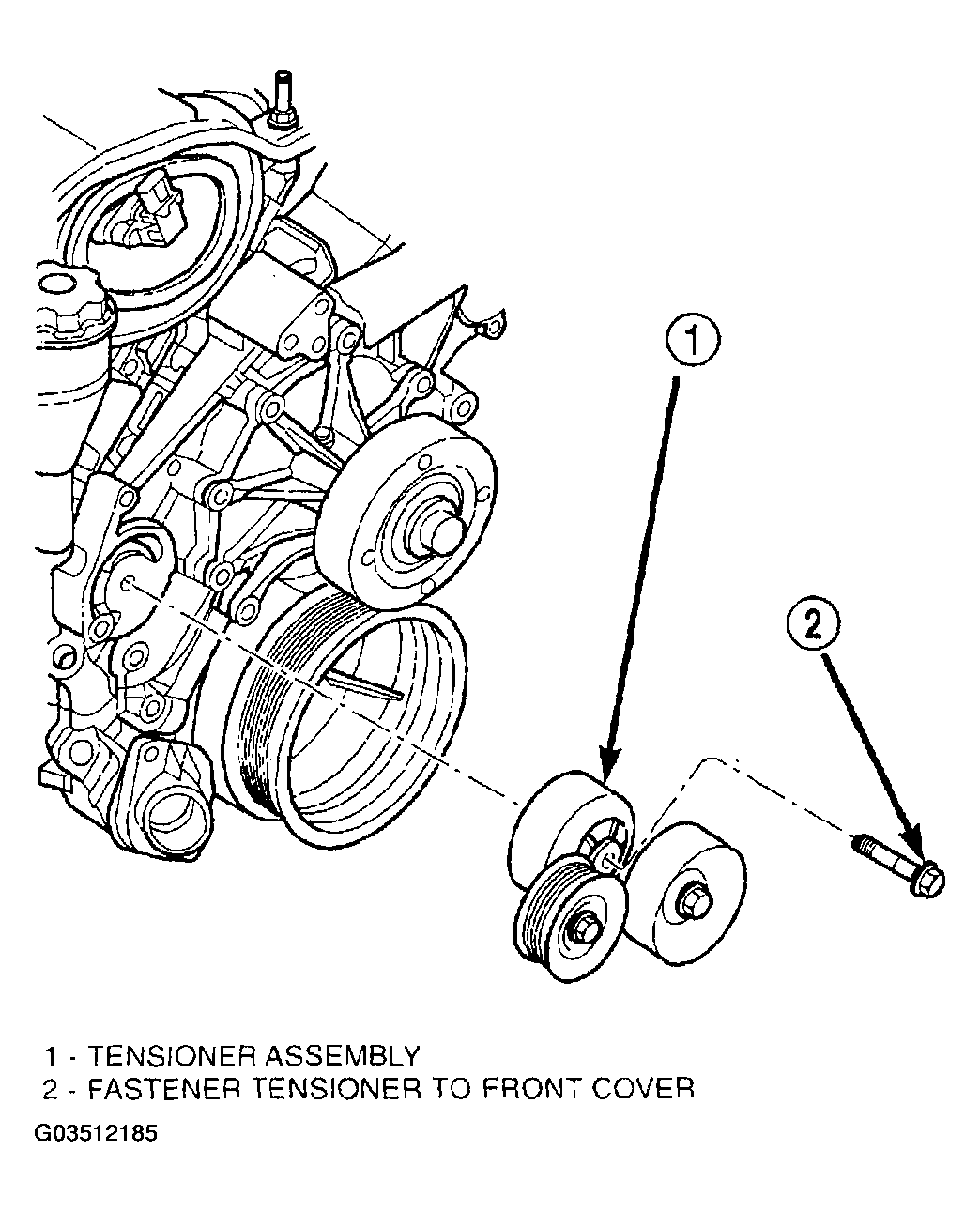

    Fig 1: Identifying Accessory Drive Belt Tensioner
    G03512185Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove crankshaft damper (Refer to REMOVAL  ).
  9. Remove the generator (Refer to GENERATOR ).
  10. Remove A/C compressor (Refer to A/C COMPRESSOR ).
    CAUTION: The 3.7L engine uses an anerobic sealer instead of a gasket to seal the front cover to the engine block, from the factory. For service, Mopar(R) Engine RTV sealant must be substituted.
    NOTE: It is not necessary to remove the water pump for timing cover removal.
  11. Remove the bolts holding the timing cover to engine block (Fig 2 ).

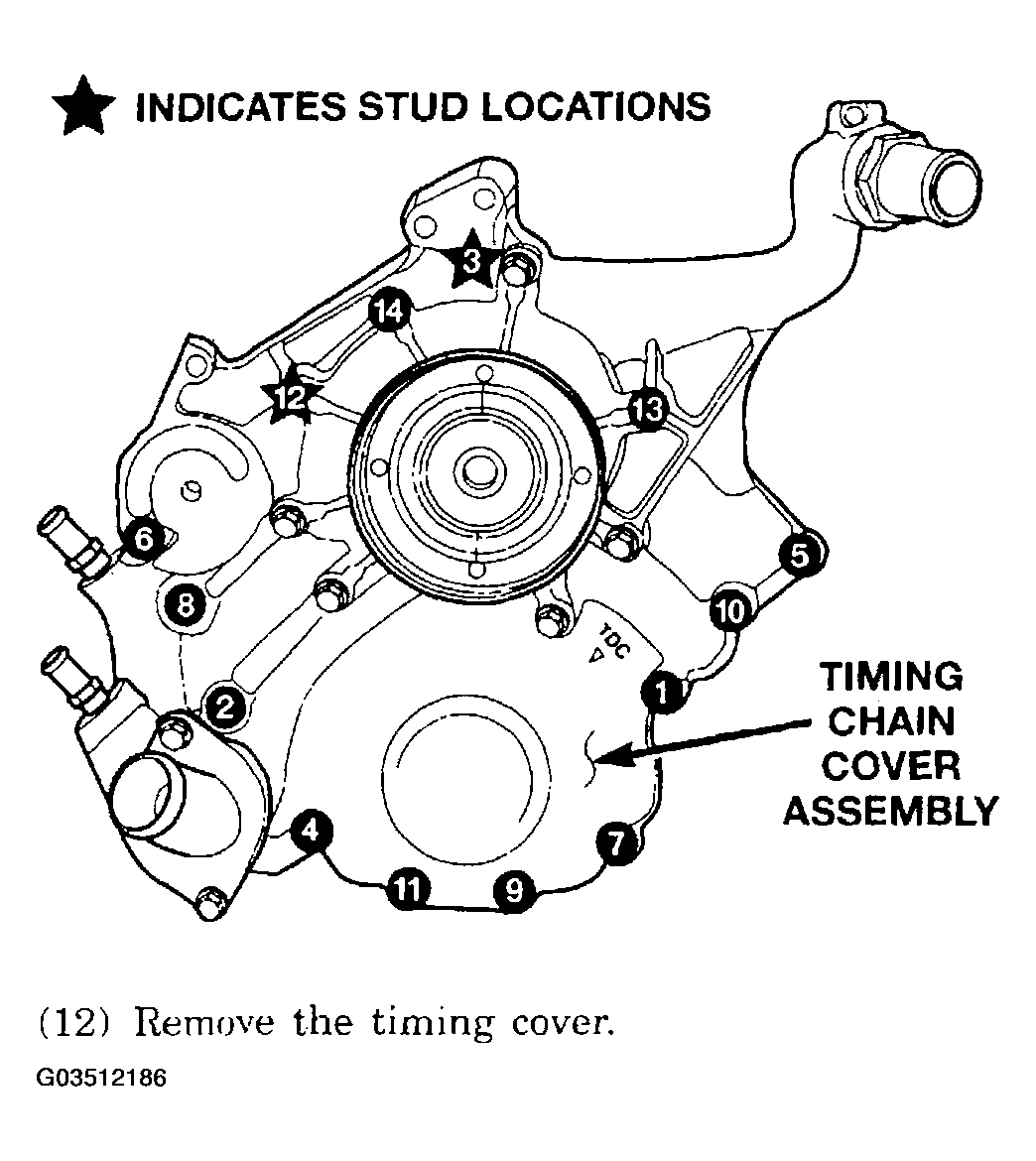

    Fig 2: Identifying Timing Chain Cover Fasteners
    G03512186Courtesy of DAIMLERCHRYSLER CORP.
  12. Remove the timing cover.
