Vibration Damper: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable from battery.
  2. Remove accessory drive belt (Refer to ACCESSORY DRIVE ).
  3. Drain cooling system (Refer to STANDARD PROCEDURE - DRAINING COOLING SYSTEM ).
  4. Remove radiator upper hose.
  5. Remove upper fan shroud.
  6. Using Special Tools 6958 Spanner with Adapter Pins 8346, loosen fan and viscous assembly from water pump (Fig 1 ).
  7. Remove fan and viscous assembly.
  8. Disconnect electrical connector for fan mounted inside radiator shroud.

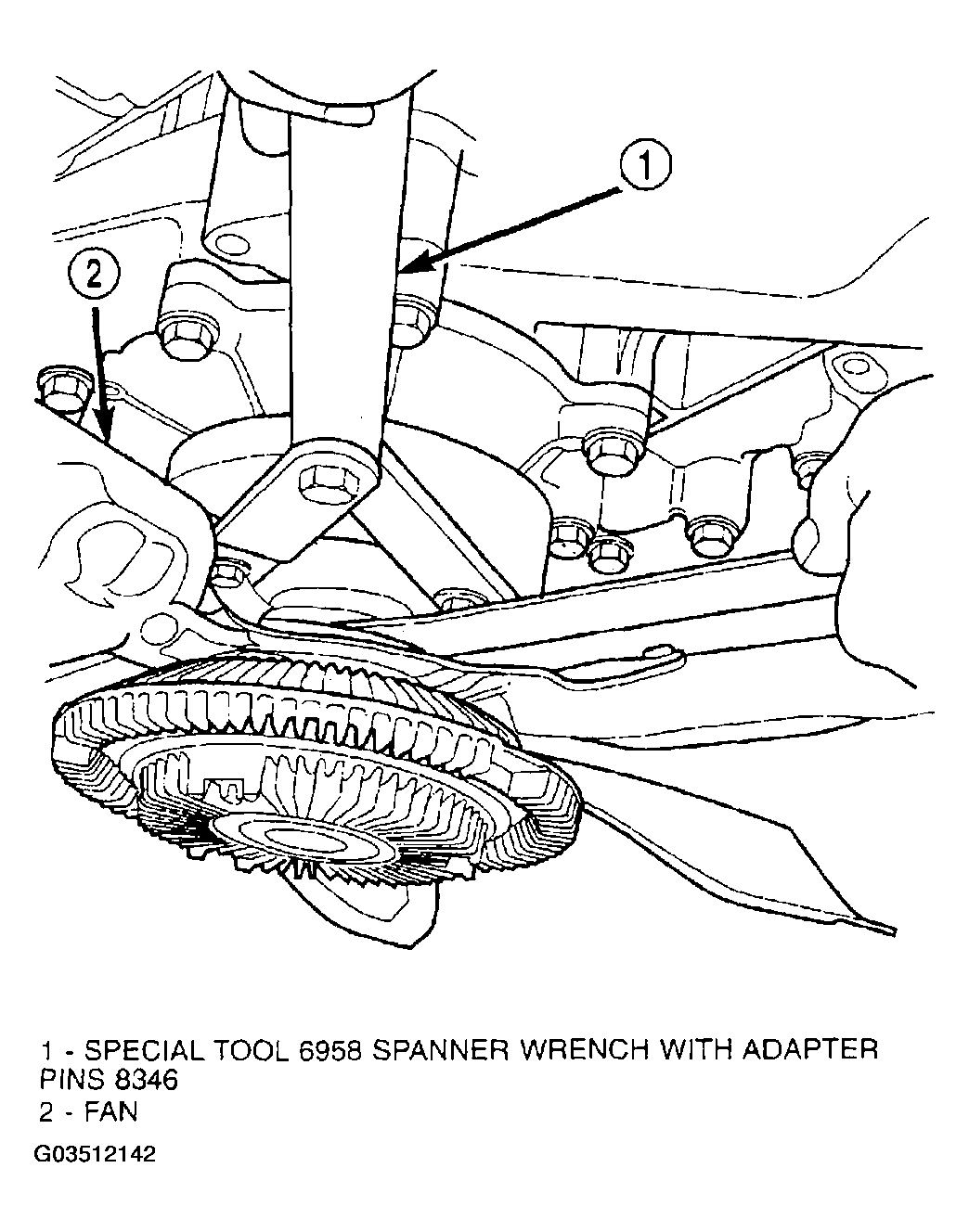

    Fig 1: Using Special Tool 6958 Spanner Wrench and Adapter Pins 8346
    G03512142Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: Transmission cooler line snaps into shroud lower right hand corner.
  9. Remove crankshaft damper bolt.
  10. Remove damper using Special Tools 8513 Insert and 1026 Three Jaw Puller (Fig 2 ).

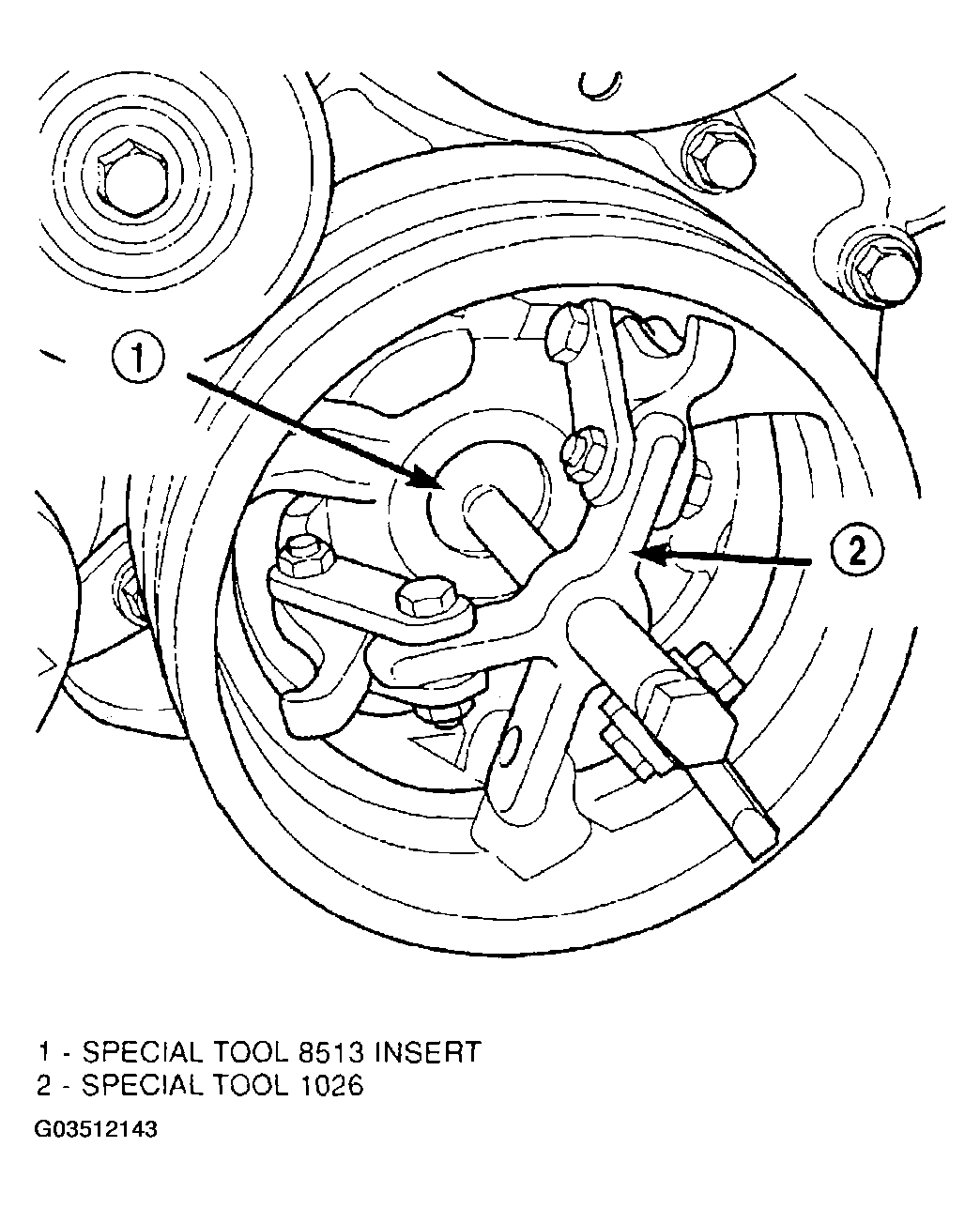

    Fig 2: Removing Crankshaft Damper
    G03512143Courtesy of DAIMLERCHRYSLER CORP.
