Cylinder Head - Left: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts should be replaced.

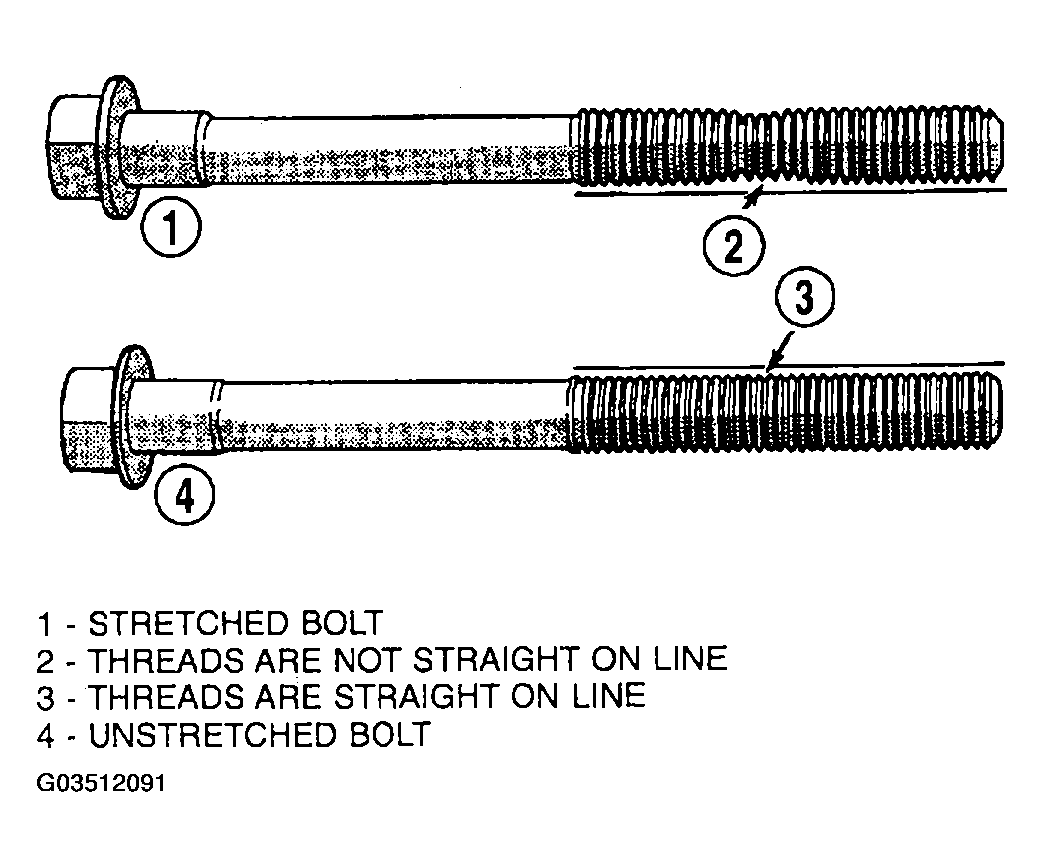

Necking can be checked by holding a straight edge against the threads. If all the threads do not contact the scale, the bolt should be replaced (Fig 1 ).

Fig 1: Checking for Stretched Bolts
G03512091Courtesy of DAIMLERCHRYSLER CORP.
CAUTION: When cleaning cylinder head and cylinder block surfaces, DO NOT use a metal scraper because the surfaces could be cut or ground. Use only a wooden or plastic scraper.

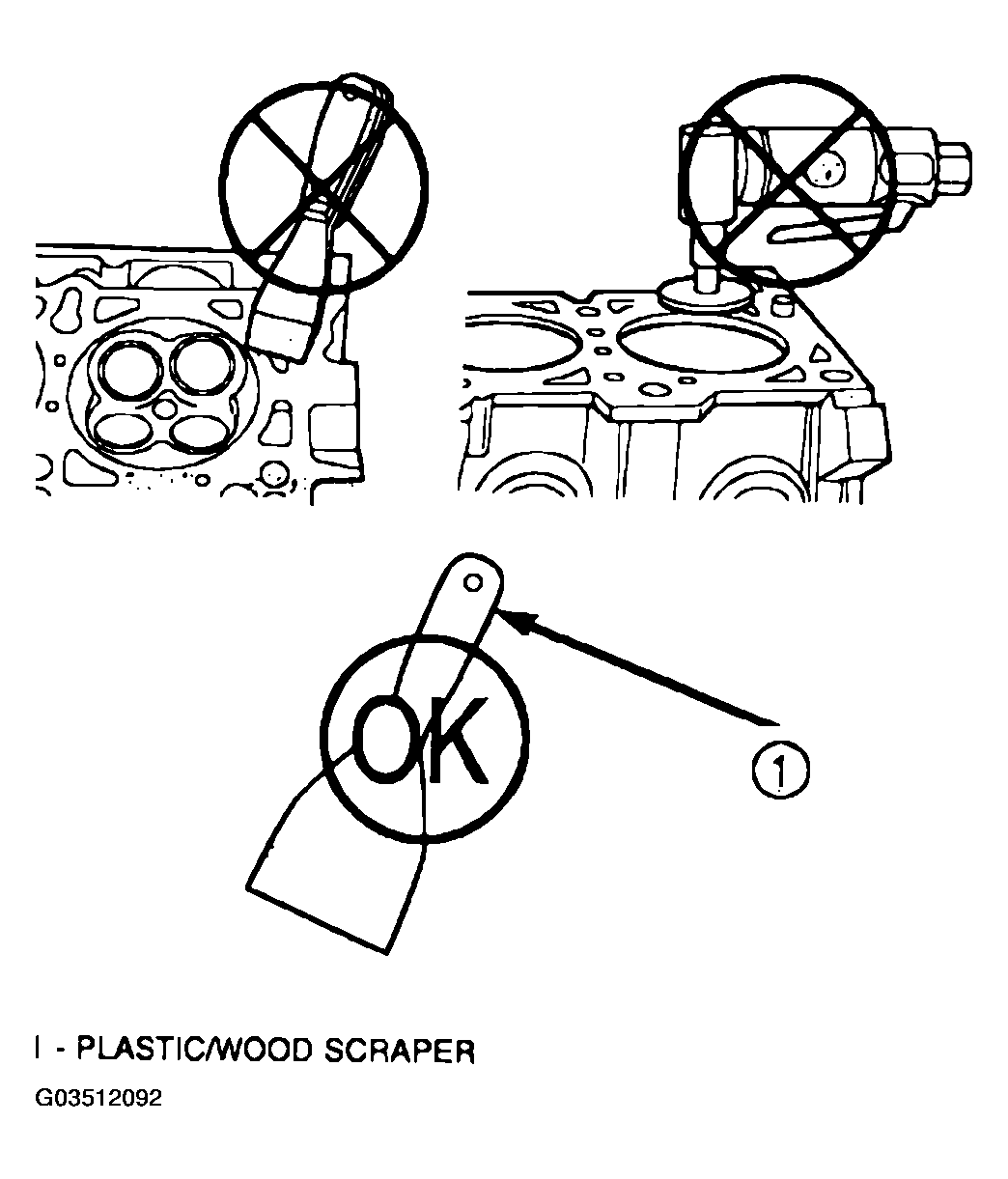

  1. Clean the cylinder head and cylinder block mating surfaces (Fig 2 ).
    Fig 2: Identifying Proper Tool Usage For Surface Preparation
    G03512092Courtesy of DAIMLERCHRYSLER CORP.
  2. Position the new cylinder head gasket on the locating dowels.
    CAUTION: When installing cylinder head, use care not damage the tensioner arm or the guide arm.
  3. Position the cylinder head onto the cylinder block. Make sure the cylinder head seats fully over the locating dowels.
    NOTE: The four smaller cylinder head mounting bolts require sealant to be added to them before installing. Failure to do so may cause leaks.
  4. Lubricate the cylinder head bolt threads with clean engine oil and install the eight M11 bolts.
  5. Coat the four M8 cylinder head bolts with Mopar(R) Lock and Seal Adhesive  then install the bolts.
    NOTE: The cylinder head bolts are tightened using an angle torque procedure, however, the bolts are not a torque-to-yield design.
  6. Tighten the bolts in sequence using the following steps and torque values:
    • Step 1: Tighten bolts 1-8, 27 N.m (20 ft. lbs.).
    • Step 2: Verify that bolts 1-8, all reached 27 N.m (20 ft. lbs.), by repeating step 1 without loosening the bolts. Tighten bolts 9 thru 12 to 14 N.m (10 ft. lbs.).

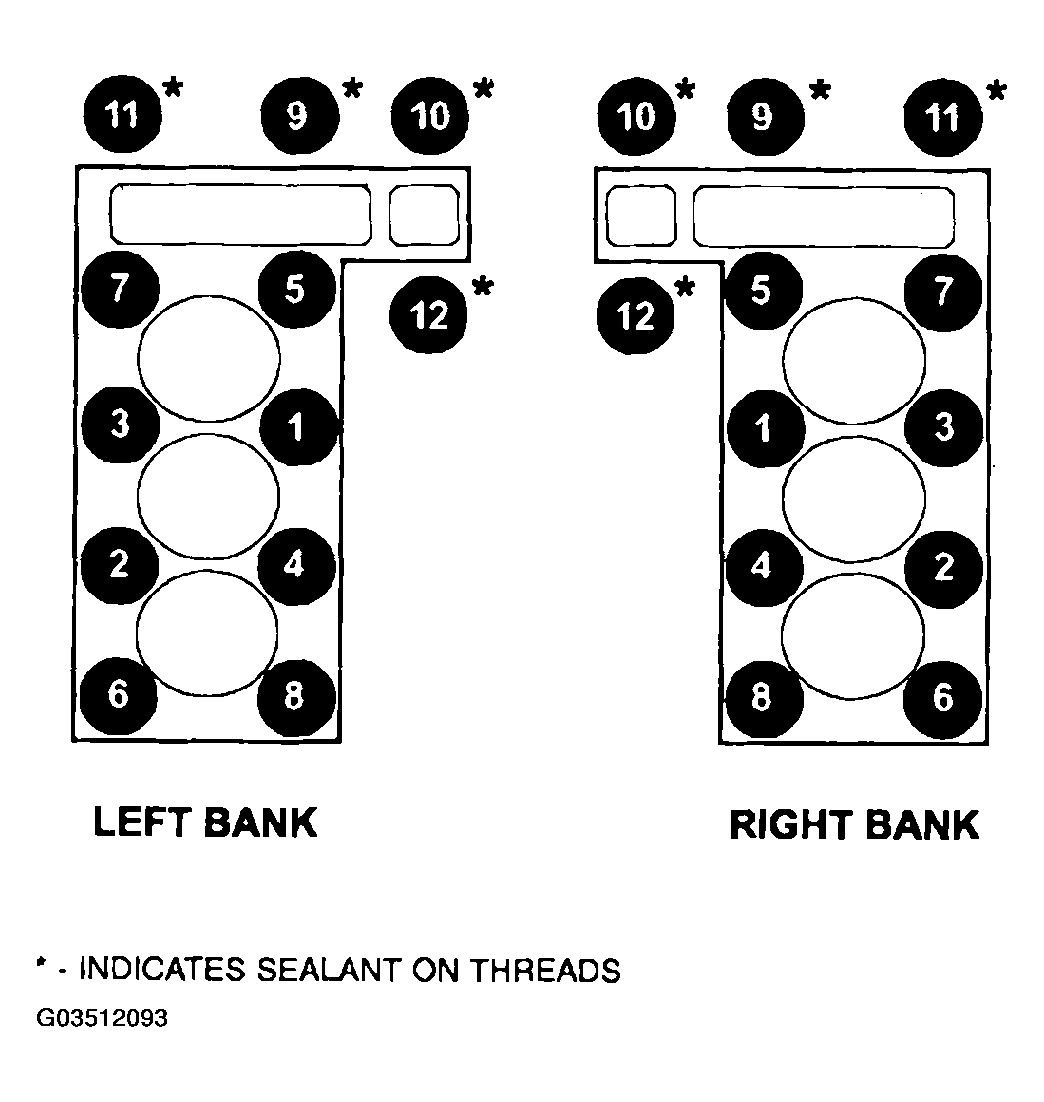

    • Step 3: Tighten bolts 1-8, 90 degrees (Fig 3 ).
    • Step 4: Tighten bolts 1-8, 90 degrees, again. Tighten bolts 9-12, 26 N.m (19 ft. lbs.)
      Fig 3: Identifying Cylinder Head Tightening Sequence
      G03512093Courtesy of DAIMLERCHRYSLER CORP.
  7. Position the secondary chain onto the camshaft drive gear, making sure one marked chain link is on either side, of the V6 mark on the gear then using Special Tool 8428 Camshaft Wrench, position the gear onto the camshaft.
    CAUTION: Remove excess oil from camshaft sprocket retaining bolt before reinstalling bolt. Failure to do so may cause over-torqueing of bolt resulting in bolt failure.
  8. Install the camshaft drive gear retaining bolt.
  9. Install the left side secondary chain guide (Refer to INSTALLATION  ).
  10. Install the cylinder head access plug.
  11. Re-set and install the left side secondary chain tensioner (Refer to INSTALLATION  ).
  12. Remove Special Tool 8429.
  13. Install the timing chain cover (Refer to INSTALLATION  ).
  14. Install the crankshaft damper (Refer to INSTALLATION  ). Tighten damper bolt 175 N.m (130 Ft. Lbs.).
  15. Install the power steering pump.
  16. Install the fan blade assembly and fan shroud (Refer to RADIATOR FAN - ELECTRIC ).
  17. Install the cylinder head cover (Refer to CYLINDER HEAD COVER  ).
  18. Install the master cylinder and booster assembly (Refer to POWER BRAKE BOOSTER ).
  19. Install the intake manifold (Refer to INSTALLATION  ).
  20. Refill the cooling system (Refer to STANDARD PROCEDURE - REFILLING COOLING SYSTEM ).
  21. Raise the vehicle.
  22. Install the exhaust pipe onto the left exhaust manifold.
  23. Lower the vehicle.
  24. Connect the negative cable to the battery.
  25. Start the engine and check for leaks.
