Vibration Damper: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To prevent severe damage to the Crankshaft, Damper or Special Tool 8512-A, thoroughly clean the damper bore and the crankshaft nose before installing Damper.

Align crankshaft damper slot with key in crankshaft. Slide damper onto crankshaft slightly
CAUTION: Special Tool 8512-A, is assembled in a specific sequence. Failure to assemble this tool in this sequence can result in tool failure and severe damage to either the tool or the crankshaft.
Assemble Special Tool 8512-A as follows, The nut is threaded onto the shaft first. Then the roller bearing is placed onto the threaded rod (The hardened bearing surface of the bearing MUST face the nut). Then the hardened washer slides onto the threaded rod (Fig 1 ). Once assembled coat the threaded rod's threads with Mopar(R) Nickel Anti-Seize or equivalent.

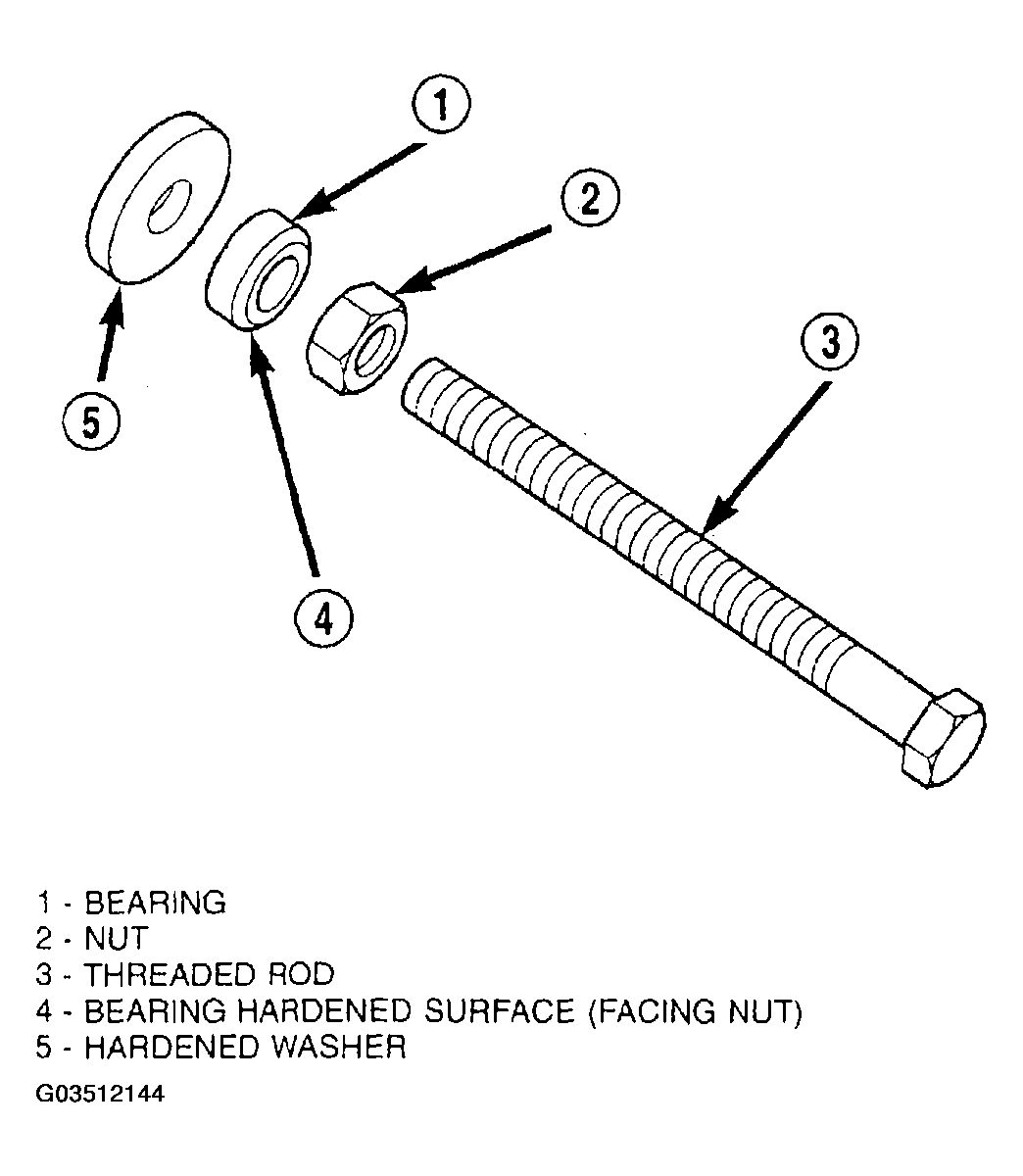

Fig 1: Identifying Proper Assembly Method For Special Tool 8512
Courtesy of DAIMLERCHRYSLER CORP.
Using Special Tool 8512-A, press damper onto crankshaft (Fig 2 ).

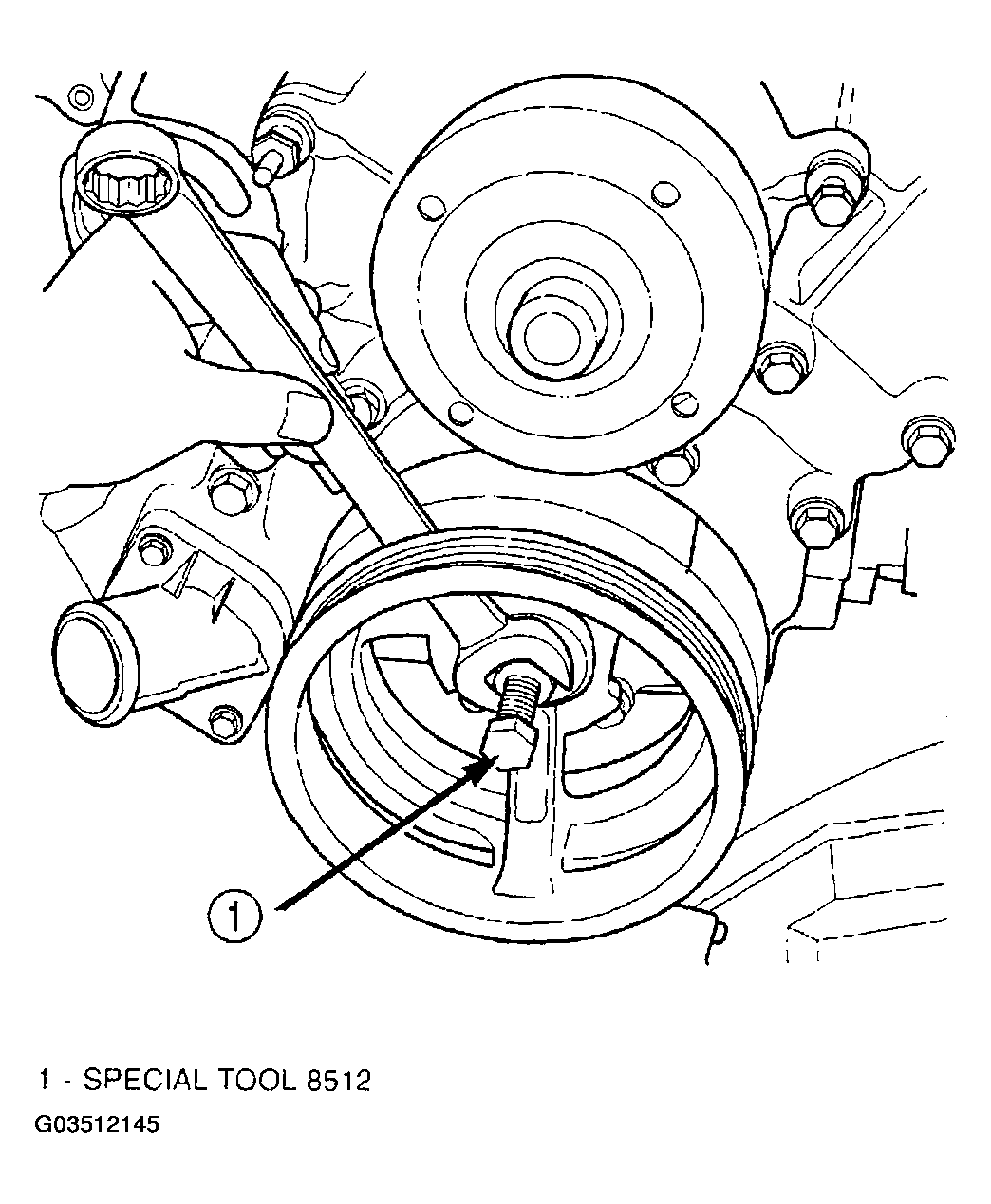

Fig 2: Installing Crankshaft Damper
Courtesy of DAIMLERCHRYSLER CORP.
Install then tighten crankshaft damper bolt to 75 N.m (130 ft. lbs.).
Install fan blade assembly (Refer to RADIATOR FAN - VISCOUS ).
Install radiator upper shroud and tighten fasteners to, 11 N.m (95 in. lbs.).
Connect electrical connector for shroud fan.
Install radiator upper hose.
Install accessory drive belt (Refer to ACCESSORY DRIVE ).
Refill cooling system (Refer to STANDARD PROCEDURE - REFILLING COOLING SYSTEM ).
Connect negative cable to battery.
