Front Door Weatherstrip: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove A-pillar trim. (Refer to REMOVAL )
  2. Remove cowl trim panel. (Refer to REMOVAL )
  3. Remove the door sill trim. (Refer to REMOVAL )
  4. Remove upper turning loop anchor bolt.
  5. Pull B-pillar trim/quarter panel trim outward to access weatherstrip.
  6. Pull weatherstrip from pinch flange around door opening (Fig 1 ).

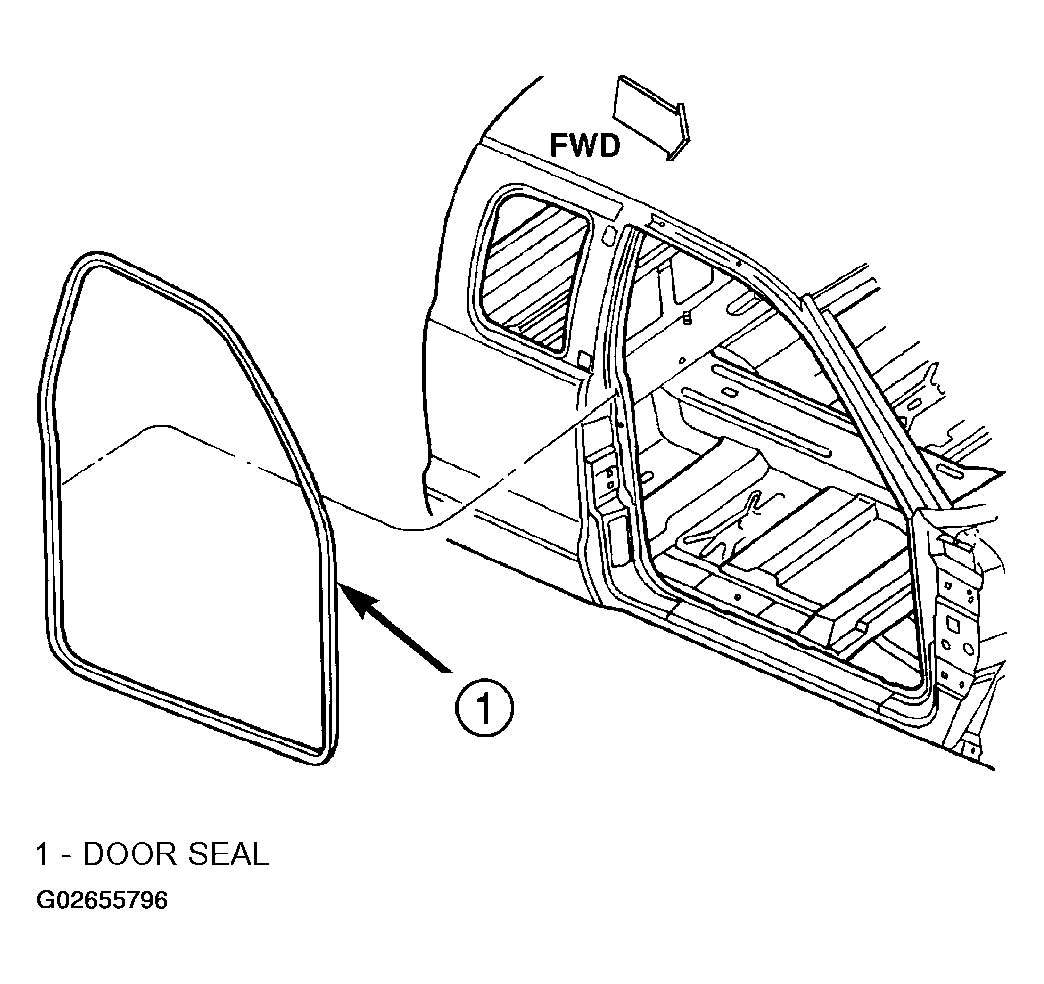

    Fig 1: Removing Door Seal From Pinch Flange Around Door Opening
    G02655796Courtesy of DAIMLERCHRYSLER CORP.
