Seat Track-Front Bucket: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. (Refer to BODY/SEATS/SEAT-FRONT BUCKET-REMOVAL  )
  2. Adjust the seat track to gain access to the torx bolts attaching the seat track to the cushion frame.
  3. Remove the torx bolts (Fig 1 ).
  4. Remove the push nuts from the seat lever adjuster.
  5. Separate the seat track from the frame.

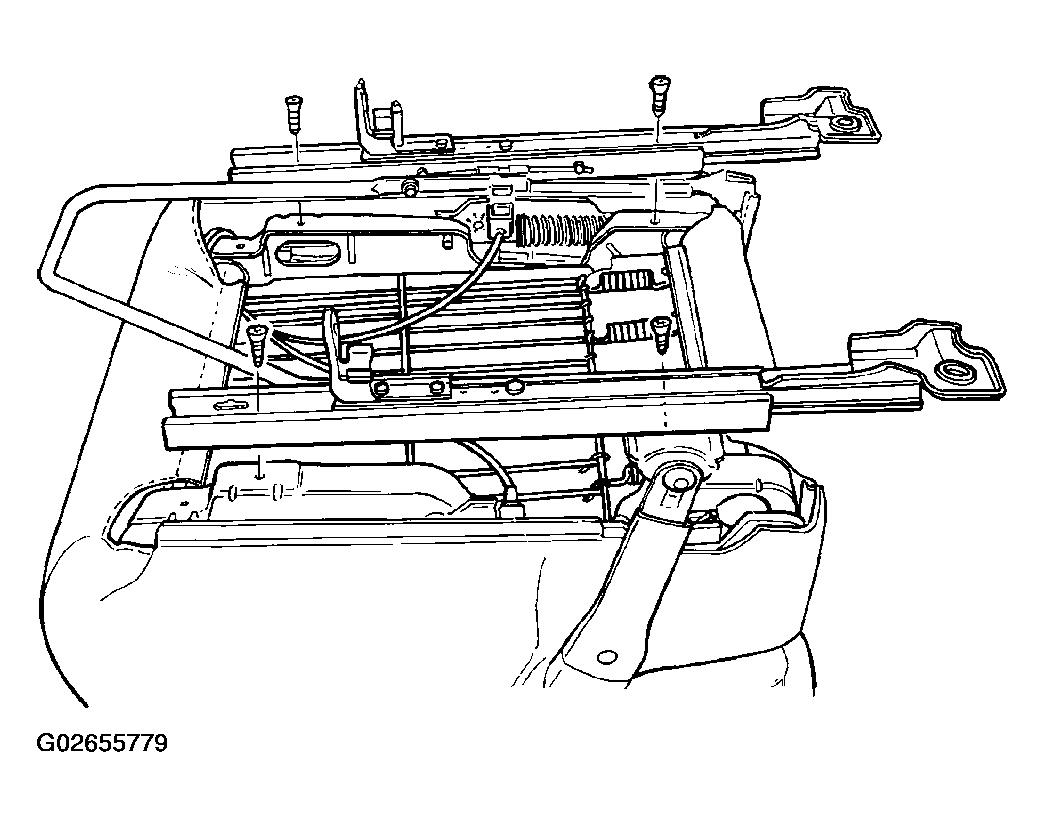

    Fig 1: Removing Torx Bolts
    G02655779Courtesy of DAIMLERCHRYSLER CORP.
