Seat Cushion Cover-Front Bucket: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. (Refer to BODY/SEATS/SEAT-FRONT BUCKET-REMOVAL  )

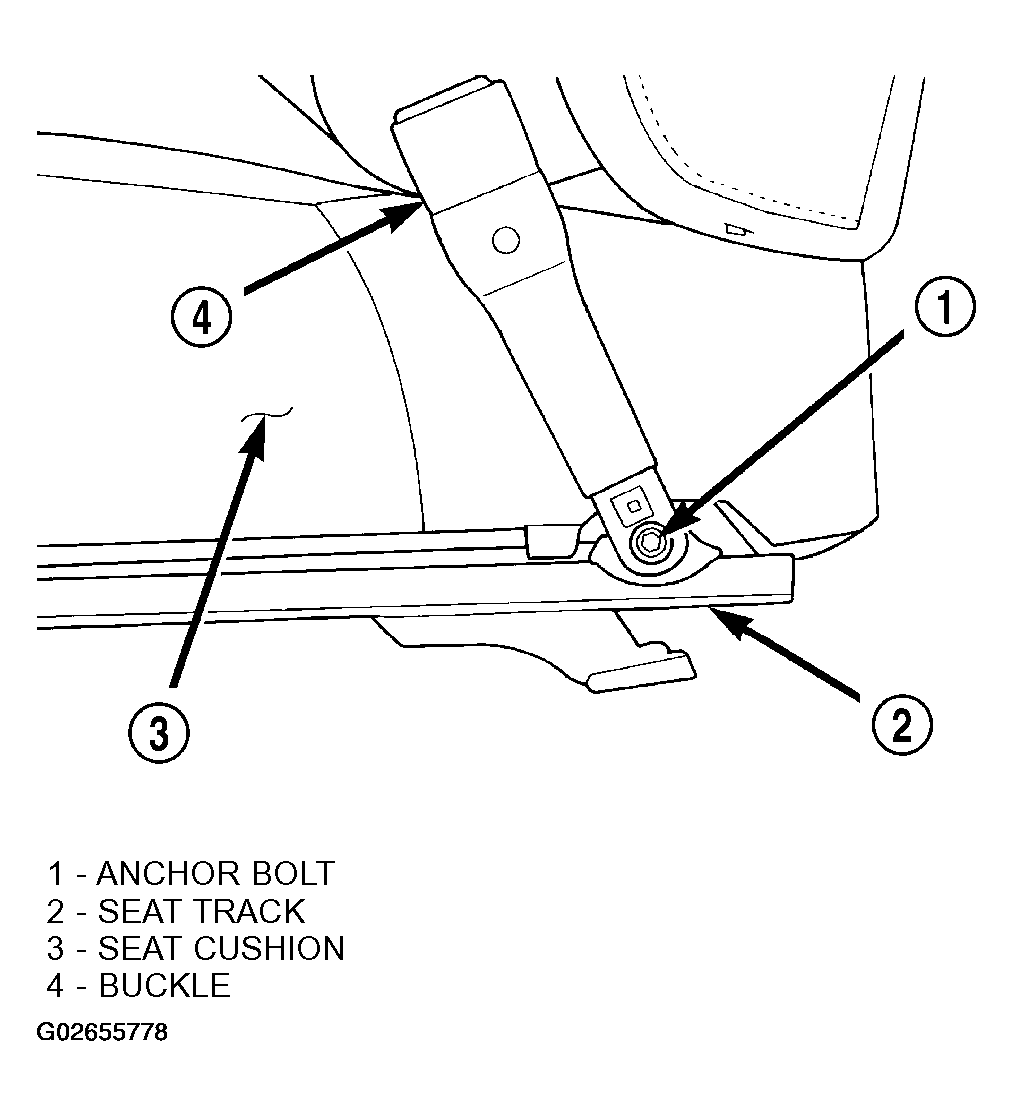

  2. Remove the anchor bolt attaching the buckle to the seat track (Figure ).
  3. Remove the screw attaching the recliner handle to the recliner mechanism.
  4. Disengage the rearward corner J-straps.
  5. Disengage the side J-straps.
  6. Disengage the front J-strap.
  7. Disengage the rear J-strap.
  8. Separate the cushion/cover from the frame.
