Center Seat Cushion Cover: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center seat armrest/console. (Refer to BODY/SEATS/CENTER SEAT ARMREST / CONSOLE-REMOVAL  )
  2. Remove the seat back/console lid. (Refer to BODY/SEATS/CENTER CONSOLE LID-REMOVAL  )

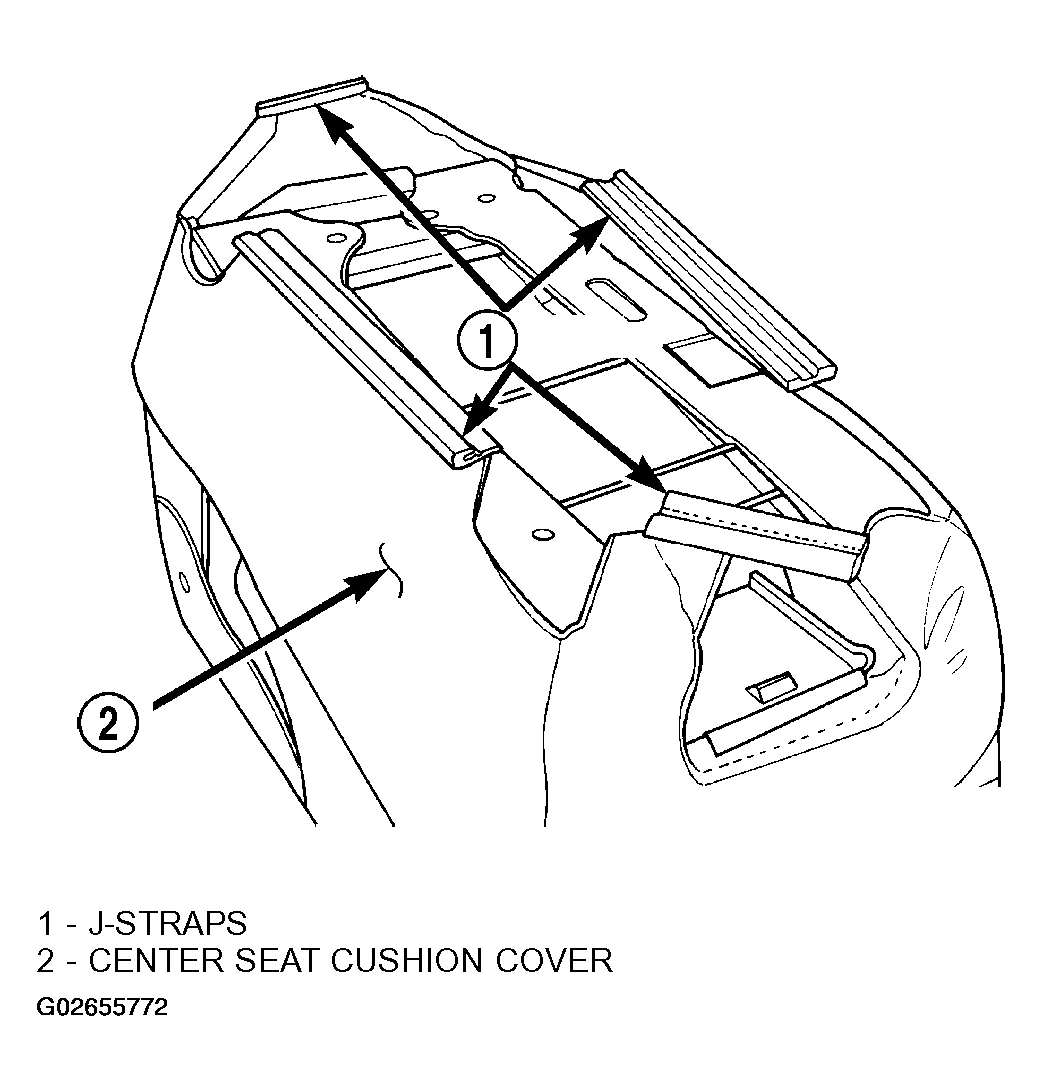

  3. Disengage the J-straps from the cushion frame (Figure ).
  4. Separate the cushion/cover from the frame.
