Removal-Center Seat/Console

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove bucket seats. (Refer to BODY/SEATS/SEAT-FRONT BUCKET-REMOVAL  )
  2. Remove the bolts attaching the center seat to the bucket seat inboard seat tracks (Fig 1 ).
  3. Route the seat belt buckles through the elastic retaining straps.
  4. Separate the center seat/console from the bucket seats.

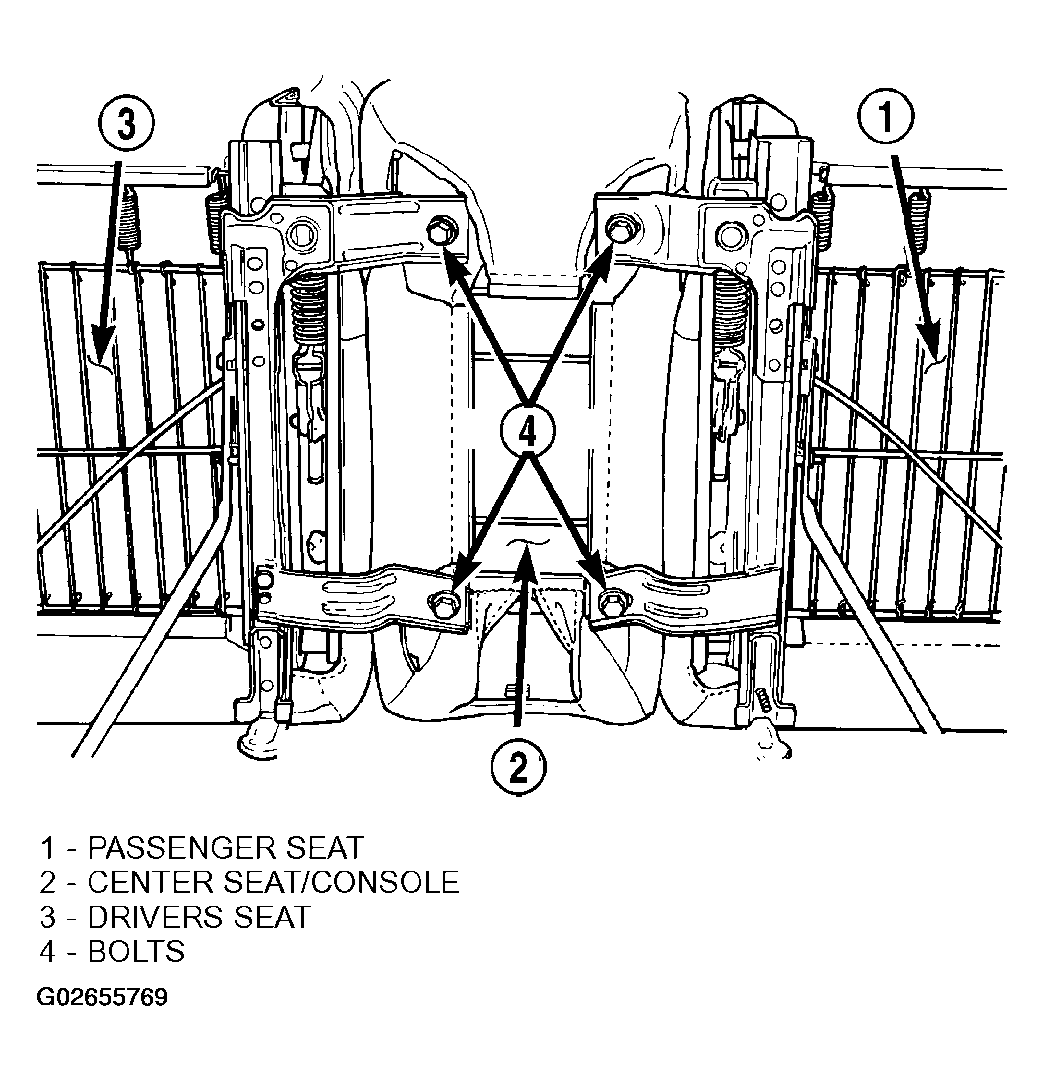

    Fig 1: Removing Bolts Attaching Center Seat To Bucket Seat Inboard Seat Tracks
    G02655769Courtesy of DAIMLERCHRYSLER CORP.
