Installation-Center Seat/Console

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Position the center seat/console onto the bucket seat inboard seat tracks.

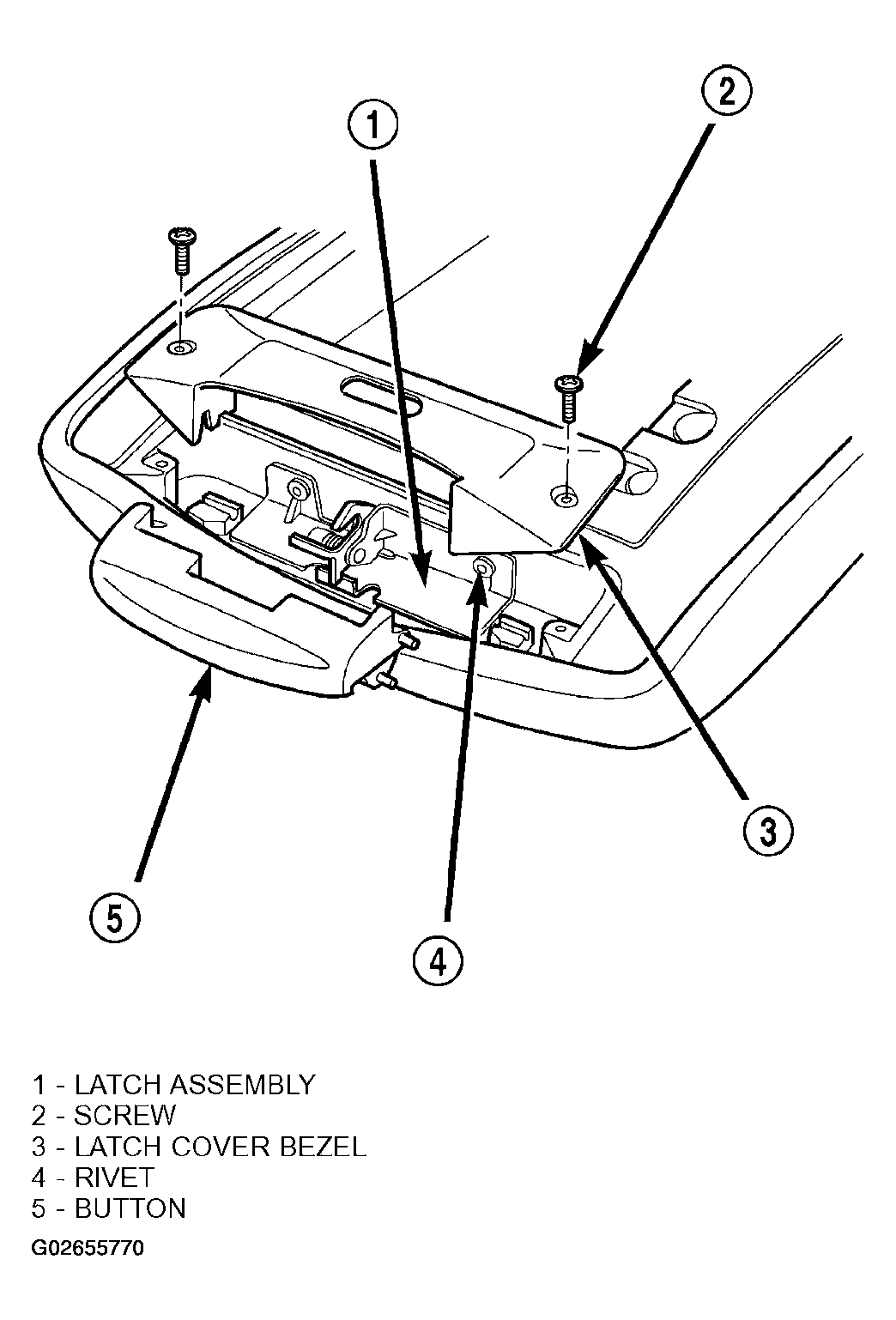

Fig 1: Removing Latch Cover Bezel And Latch Button
Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Removing Screw Securing Cover To Inertia Latch
Courtesy of DAIMLERCHRYSLER CORP.
Route the seat belt buckles through the elastic retaining straps.
Install the bolts attaching the center seat to the bucket seat inboard tracks and tighten to 24 N.m (17 ft. lbs.).
Install bucket seats. (Refer to BODY/SEATS/SEAT-FRONT BUCKET-INSTALLATION )
