Shift Bezel: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Remove shift boot(s). (Refer to BODY/INTERIOR/4WD FLOOR SHIFT BOOT-REMOVAL )
Lift bin cup holder and remove bolts attaching shift bezel to floor pan (Fig 1 ).
Remove screw under shift boot attaching patch plate to floor pan.
Disengage 4WD shift indicator lamp connector, if equipped (Fig 2 ) and (Figure ).
Separate shift bezel from vehicle.

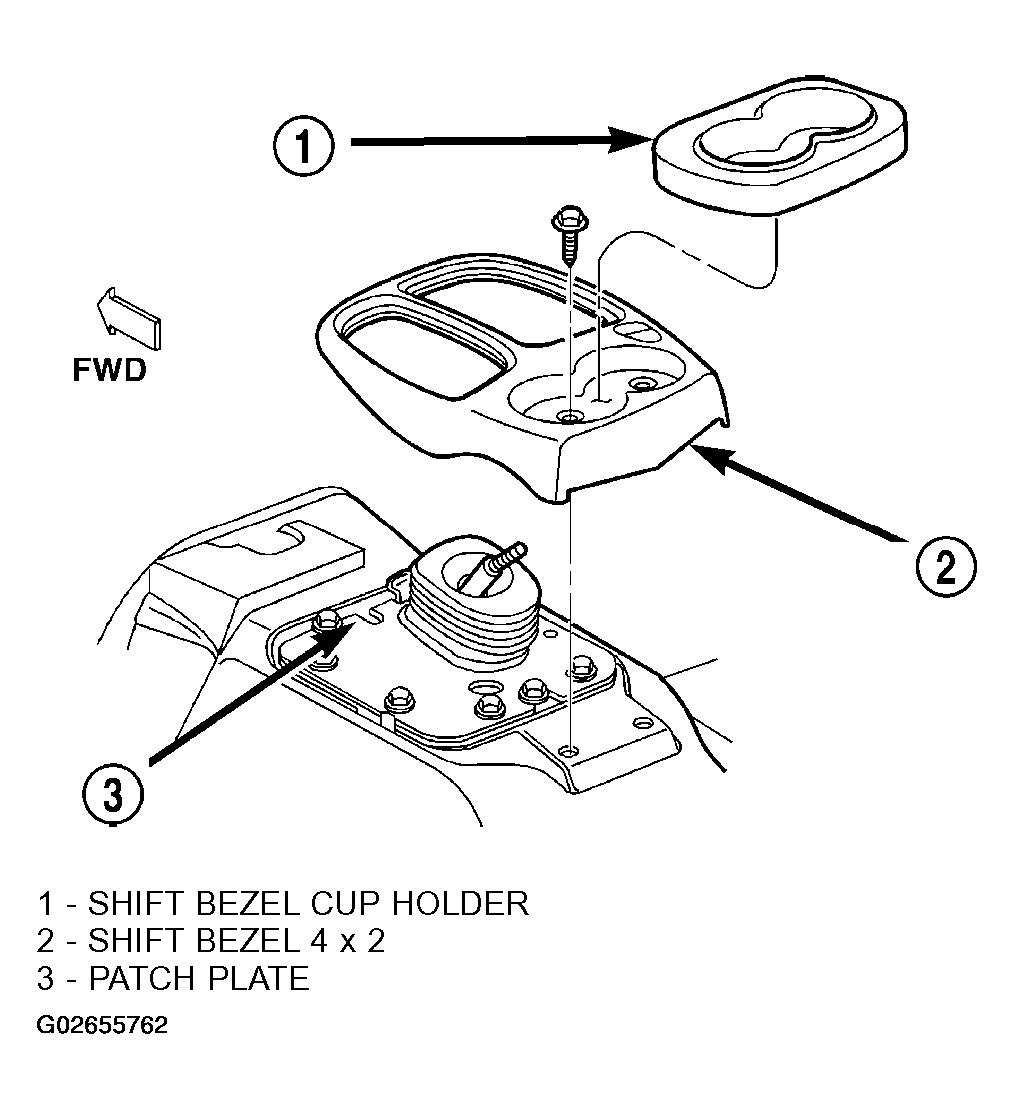

Fig 1: Removing/Installing Shift Bezel 4X2
Courtesy of DAIMLERCHRYSLER CORP.

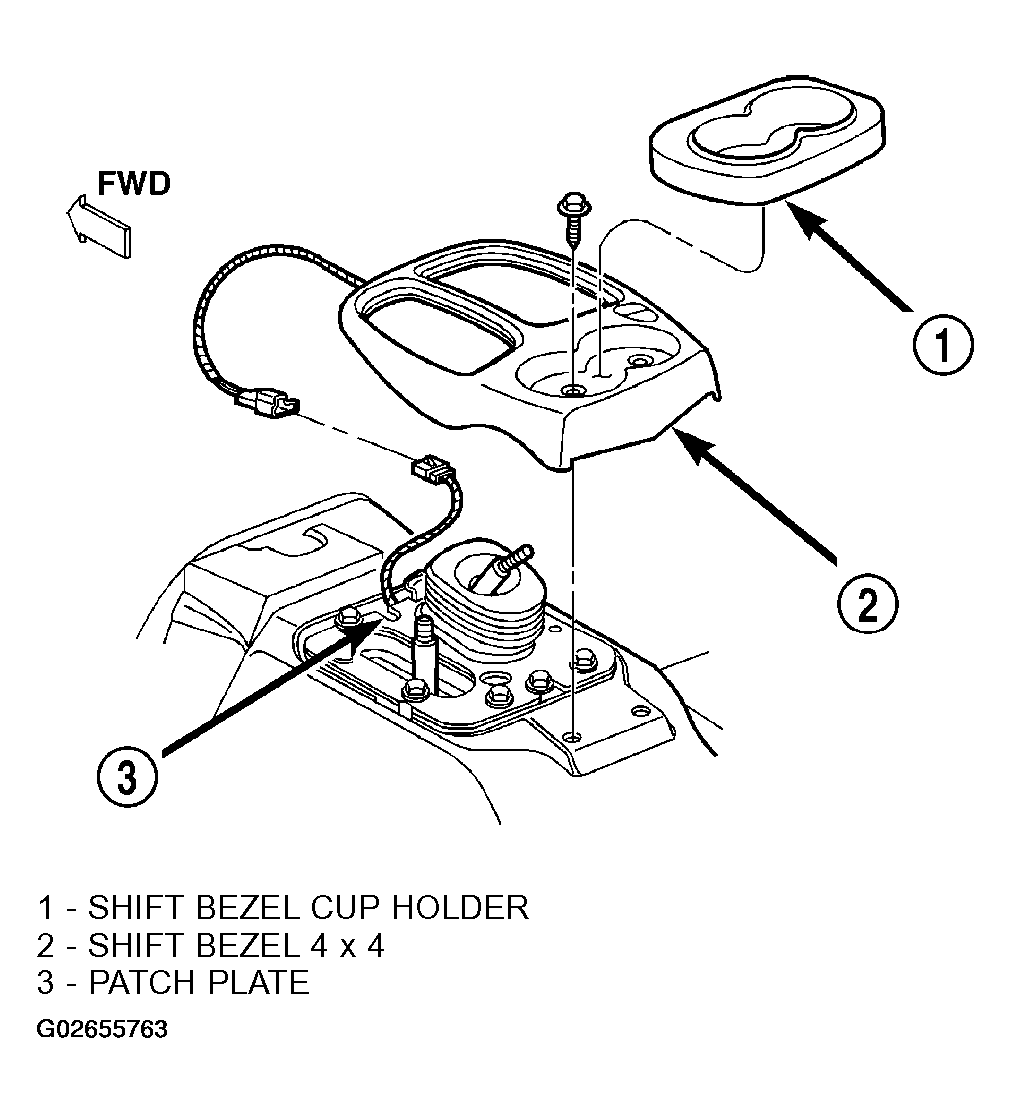

Fig 2: Removing/Installing Shift Bezel 4X4 Manual Transmission
Courtesy of DAIMLERCHRYSLER CORP.
