Rear Cab Back Panel Trim: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The rear cab back panel trim is attached to the cab with push-in fasteners.

Grasp rear cab back panel trim and firmly pull to release from cab (Fig 2 ) and (Fig 3 ).

Fig 1: Removing/Installing Headliner
Courtesy of DAIMLERCHRYSLER CORP.

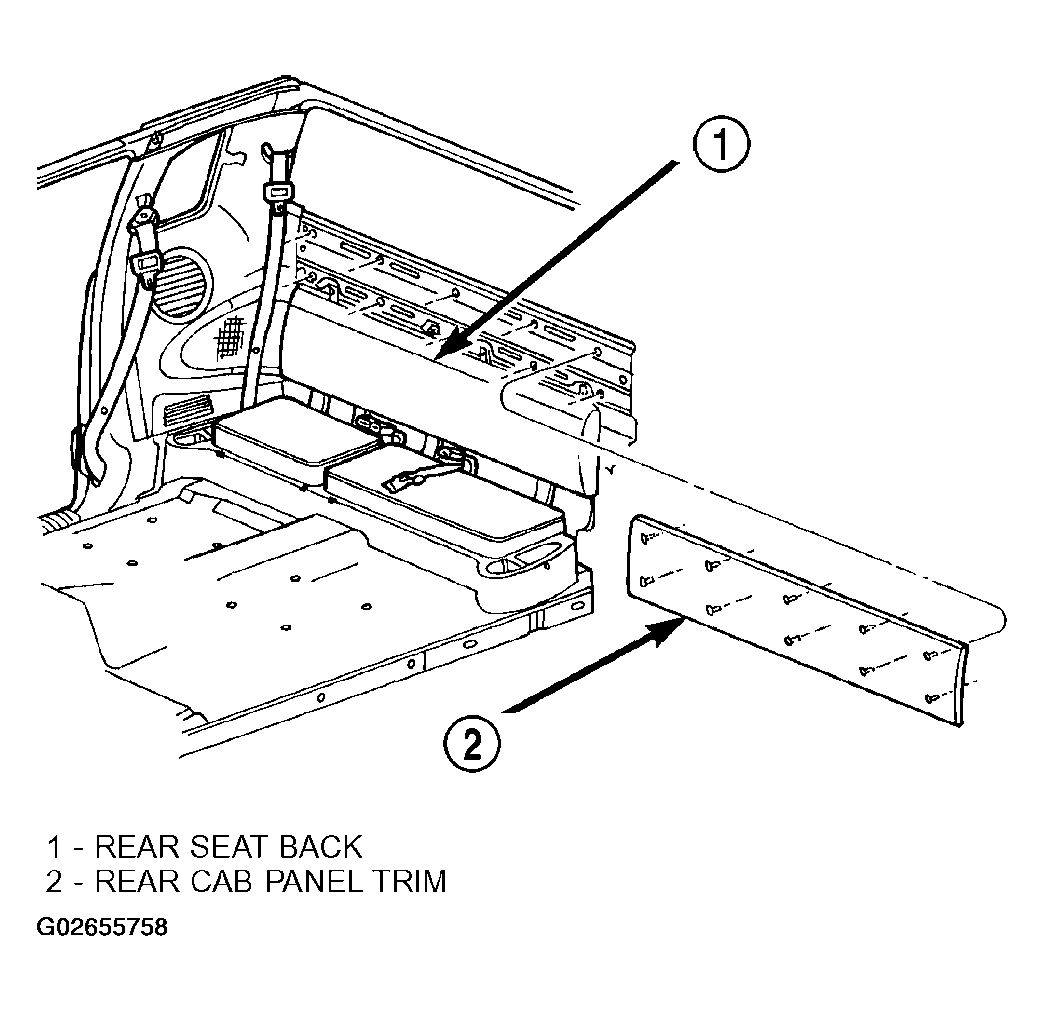

Fig 2: Removing/Installing Rear Cab Back Panel Trim
Courtesy of DAIMLERCHRYSLER CORP.

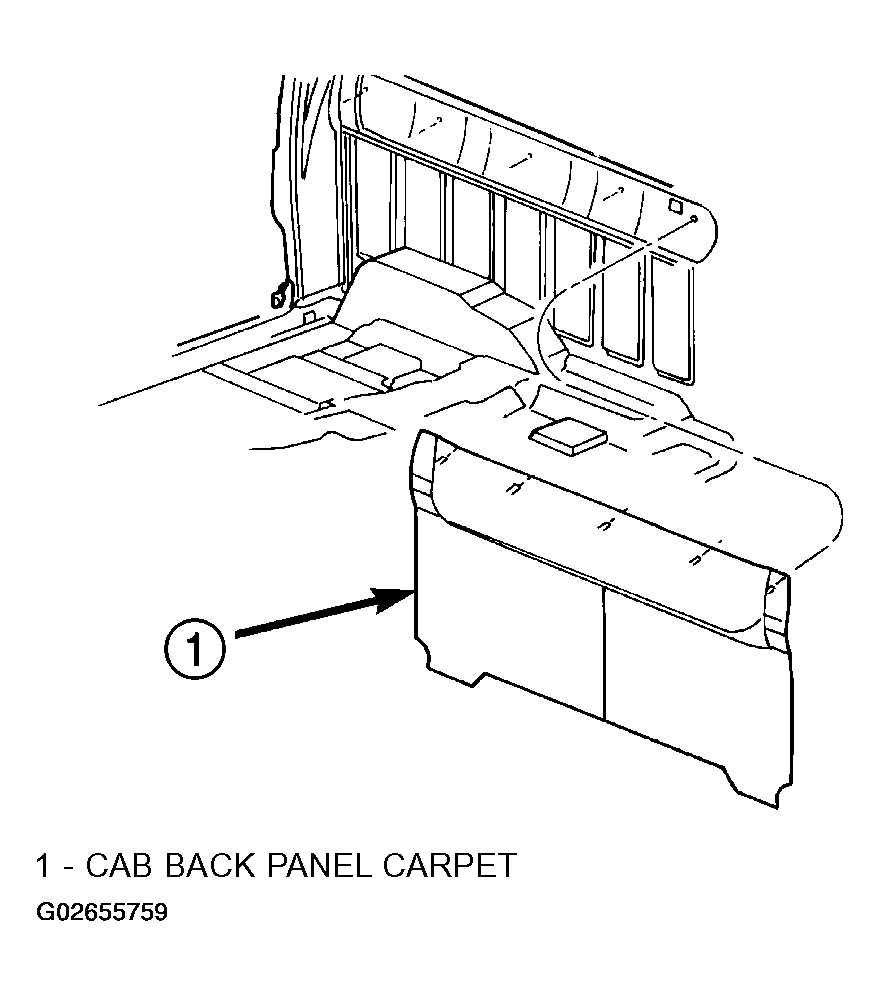

Fig 3: Removing/Installing Rear Cab Back Panel Trim With Carpet
Courtesy of DAIMLERCHRYSLER CORP.
