Section 67 (Interior Trim): Headliner: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position headliner in vehicle.
  2. Install C-pillar trim. (Refer to BODY/INTERIOR/C-PILLAR TRIM-INSTALLATION  )
  3. Install B-pillar trim. (Refer to BODY/INTERIOR/B-PILLAR TRIM-INSTALLATION  )
  4. Install A-pillar trim. (Refer to BODY/INTERIOR/A-PILLAR TRIM-INSTALLATION  )

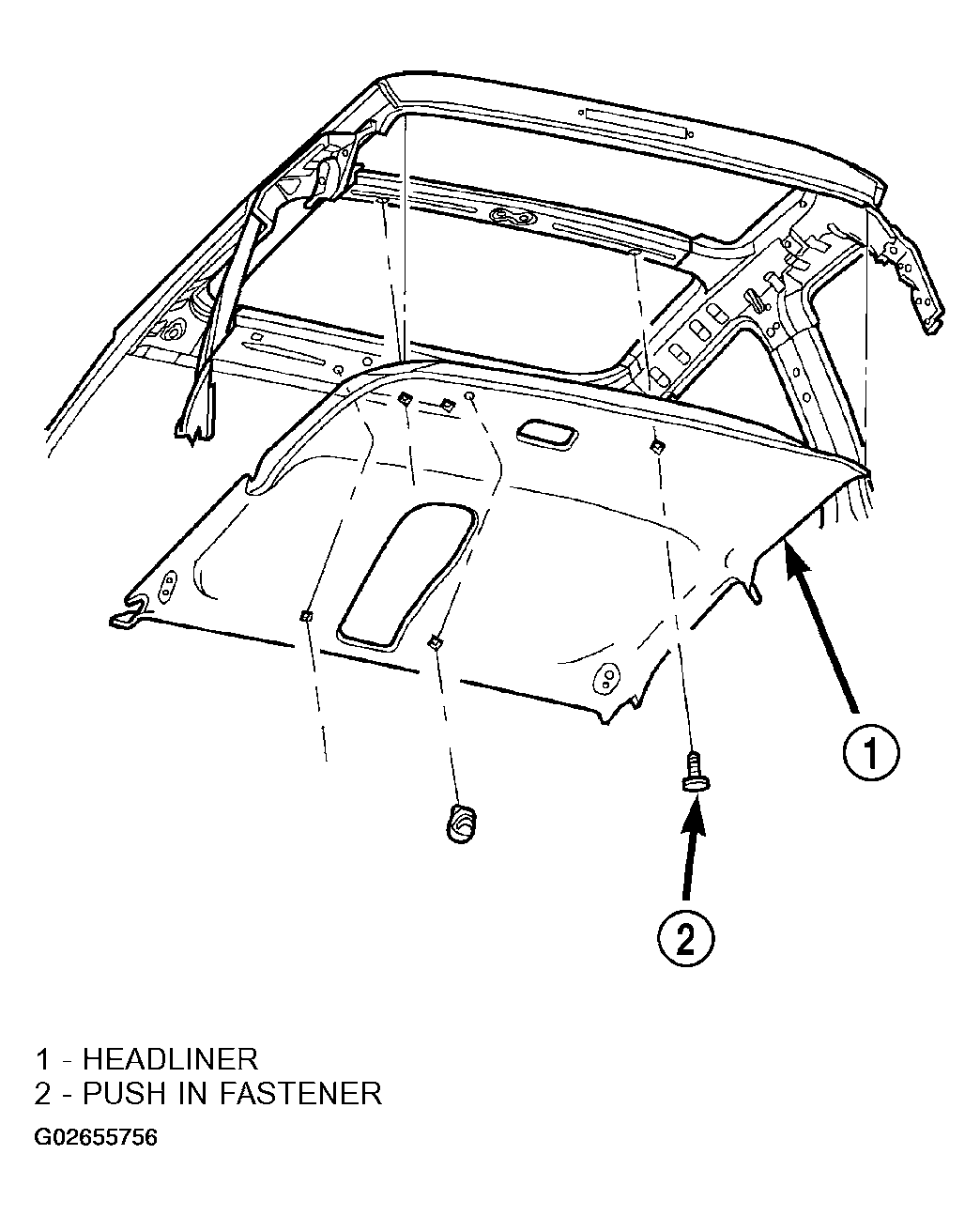

    Fig 1: Removing/Installing Quad Cab Headliner
    G02655756Courtesy of DAIMLERCHRYSLER CORP.
  5. Install overhead console, if equipped. Refer to OVERHEAD CONSOLE .
  6. Install dome lamp.
  7. Install coat hooks. (Refer to BODY/INTERIOR/COAT HOOK-INSTALLATION  )
  8. Install sun visors. (Refer to BODY/INTERIOR/SUN VISOR-INSTALLATION  )
