Section 64 (Doors - Rear): WATERDAM: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door trim panel. (Refer to BODY/DOORS-REAR/TRIM PANEL-REMOVAL  )
  2. Peel the waterdam from the door.
  3. Route the latch rods and wire harnesses through the waterdam.
  4. Separate the waterdam from the door inner panel (Fig 1 ).

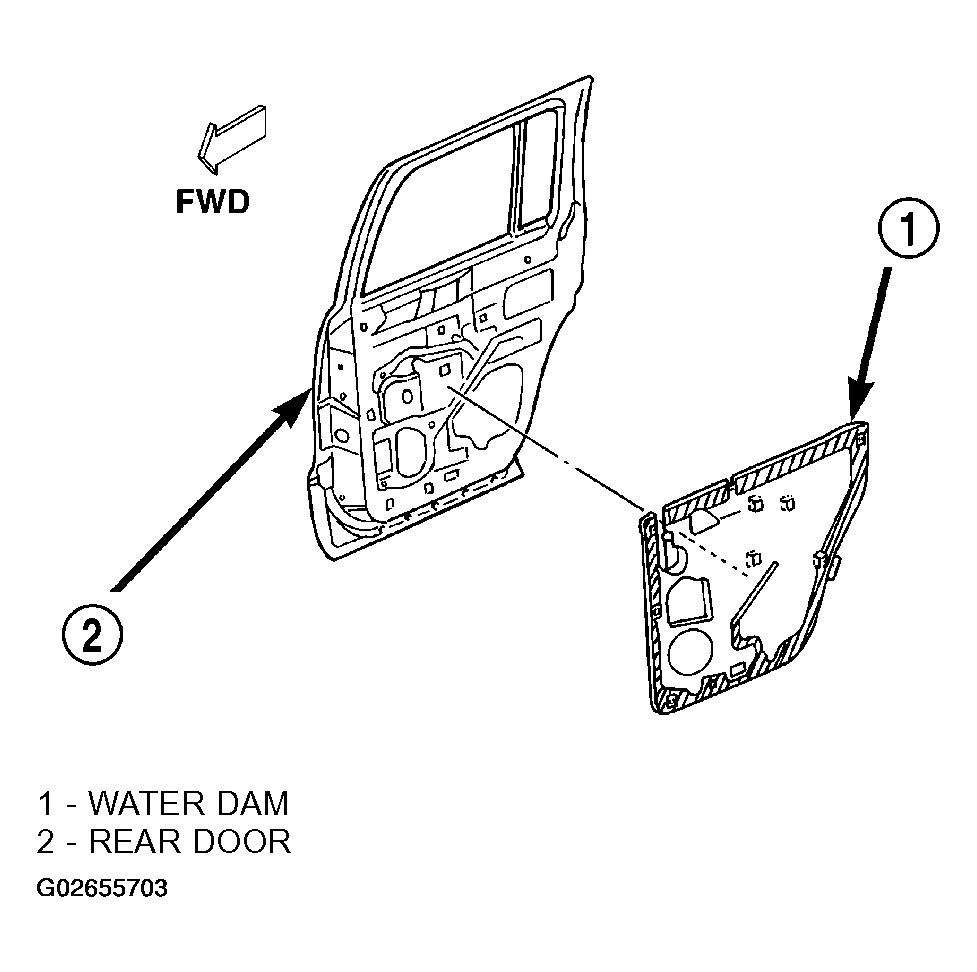

    Fig 1: Removing Rear Door Waterdam
    G02655703Courtesy of DAIMLERCHRYSLER CORP.
