Trim Panel: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Roll window down.
  3. Remove window crank (Fig 1 ,) if equipped.
  4. Remove screws attaching trim panel to door.
    CAUTION: Do not forcibly pull trim panel from door, damage to trim panel may occur.
  5. Simultaneously lift upward and outward to release retainer steps from inner door panel (Fig 2 ).
  6. Disengage inside handle linkage rod from inside handle.

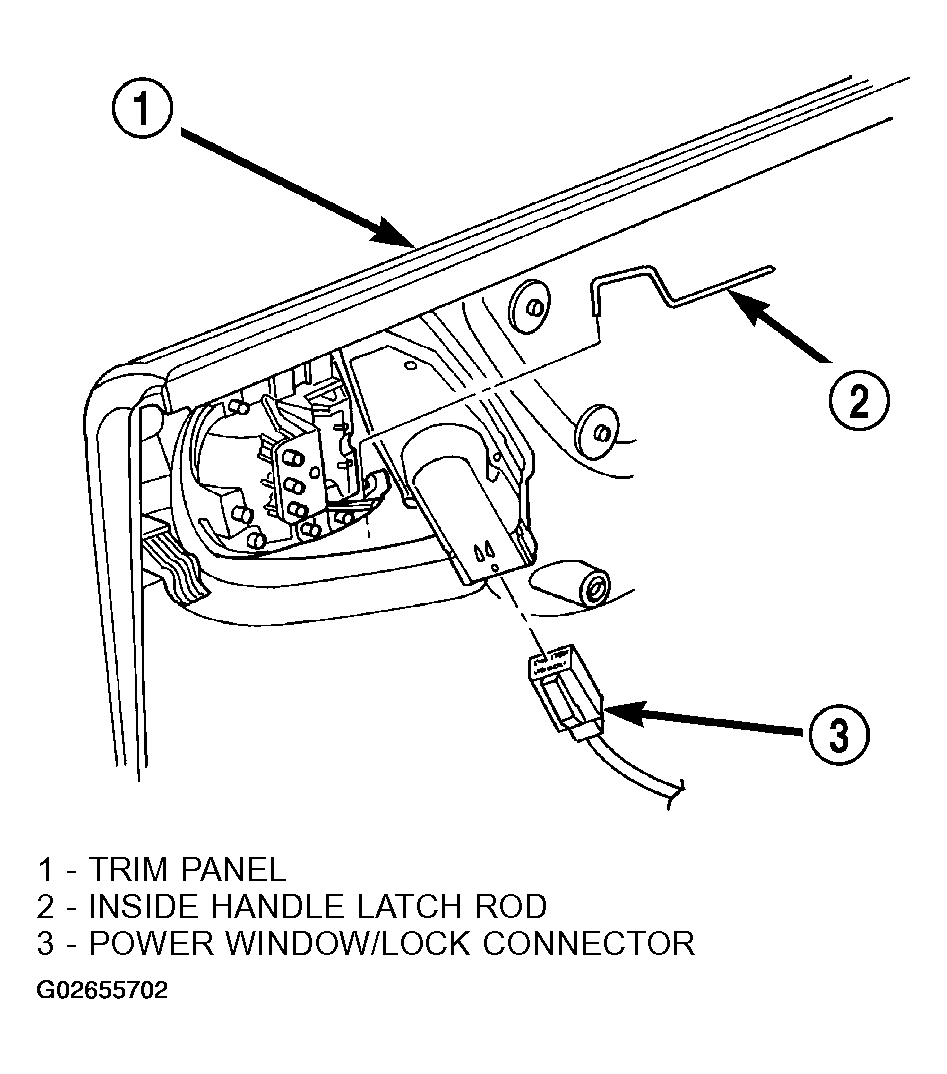

  7. Disconnect power widow/lock harness connector, if equipped (Figure ).
  8. Separate door trim panel from vehicle.
  9. If necessary, pull upper trim extension outward to disengage from rear door.

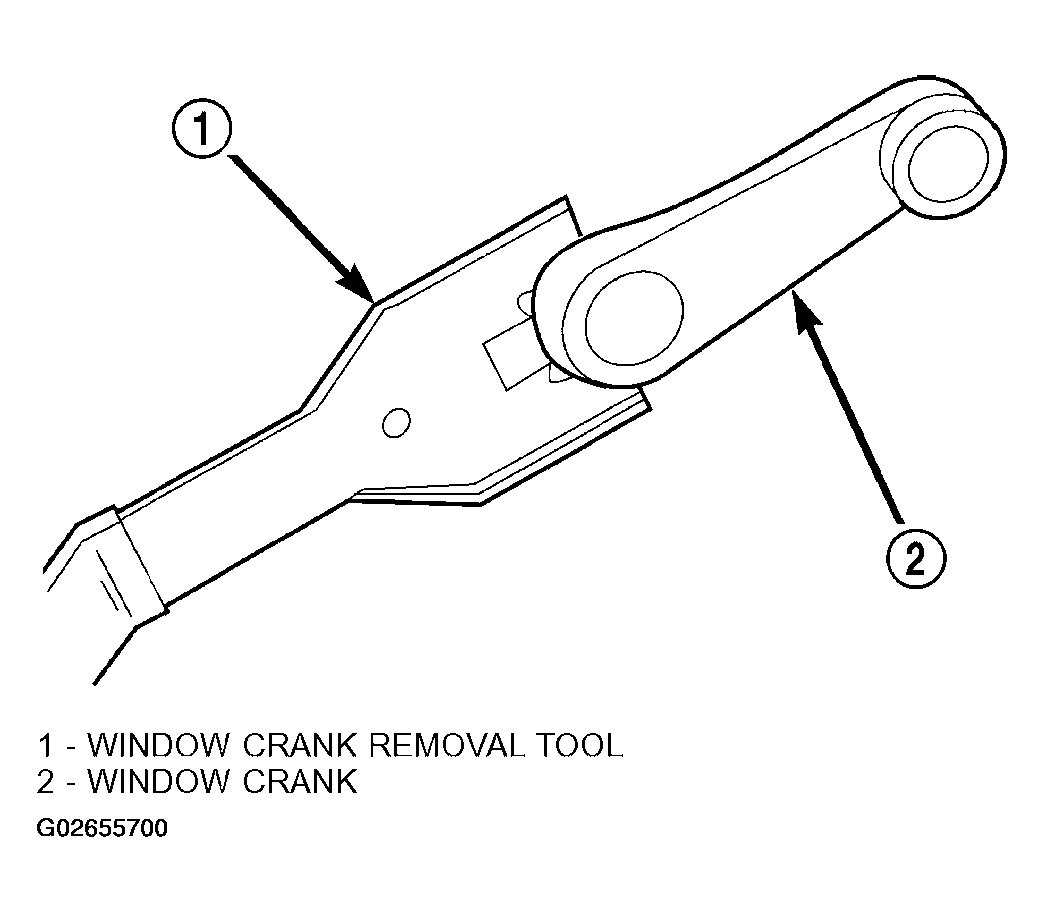

    Fig 1: Removing Window Crank-Typical
    G02655700Courtesy of DAIMLERCHRYSLER CORP.

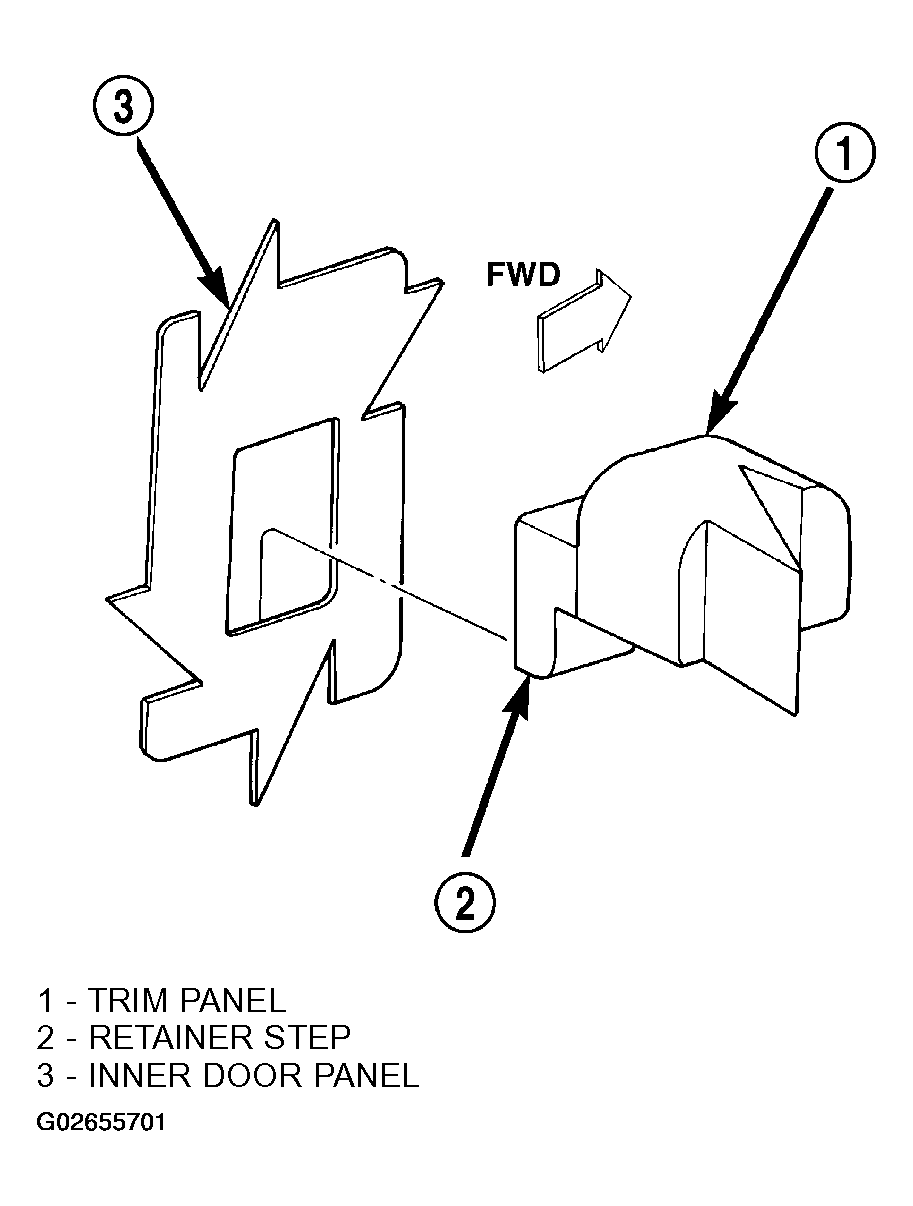

    Fig 2: Removing Trim Panel Retainer
    G02655701Courtesy of DAIMLERCHRYSLER CORP.
