Section 64 (Doors - Rear): Latch: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trim panel. (Refer to BODY/DOORS-REAR/TRIM PANEL-REMOVAL  )
  2. Peel waterdam back to access latch.
  3. Disconnect latch rods from latch (Fig 1 ).
  4. Disconnect the latch harness connector.
  5. Remove screws attaching latch to rear door (Fig 2 ).

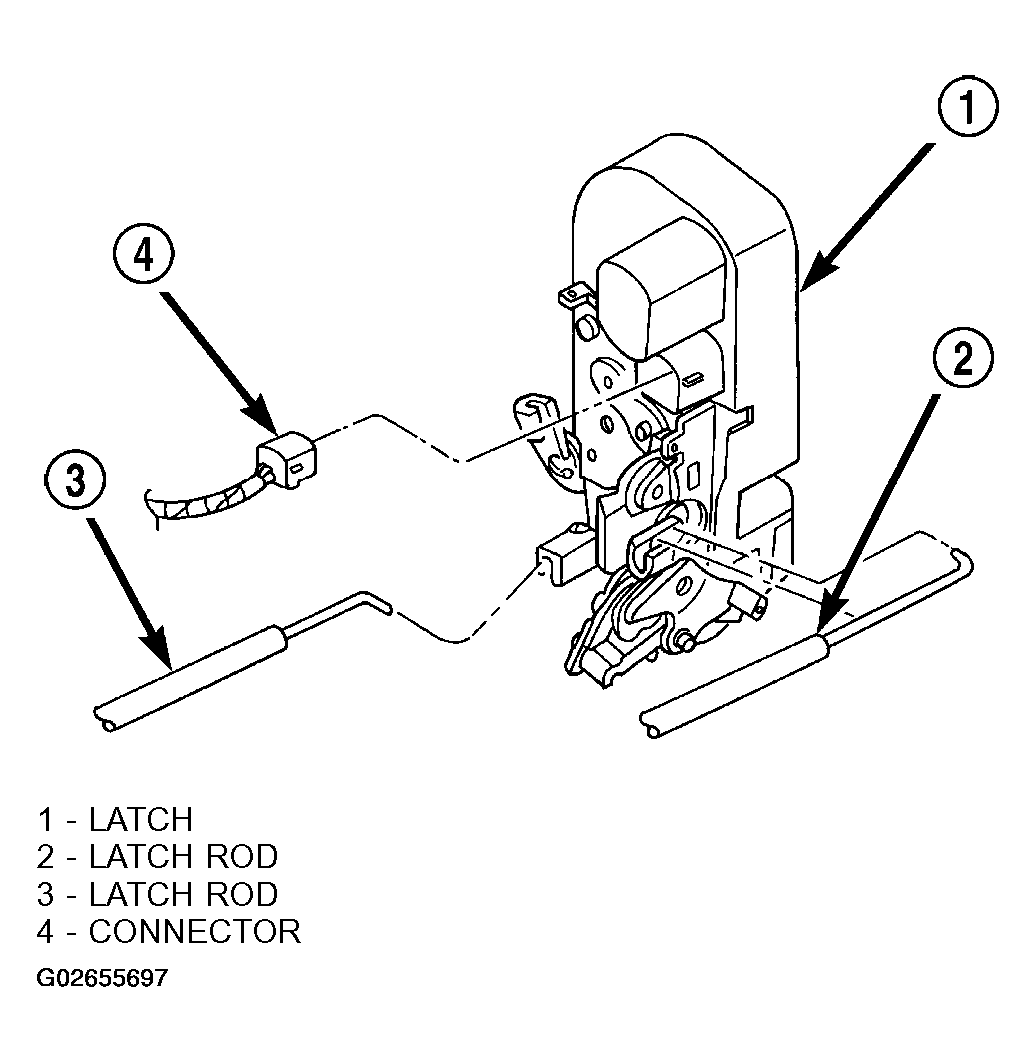

    Fig 1: Disconnecting Rear Door Latch Rods
    G02655697Courtesy of DAIMLERCHRYSLER CORP.

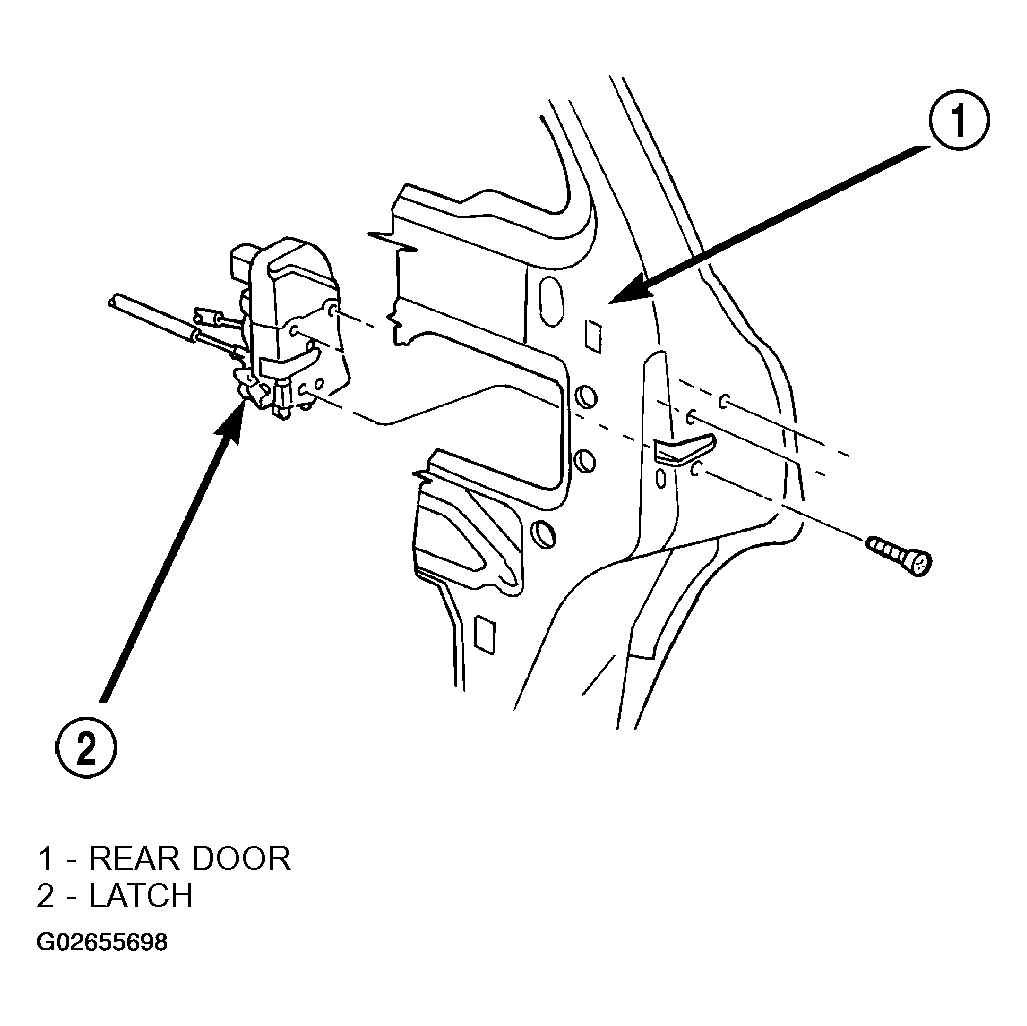

    Fig 2: Removing Rear Door Latch
    G02655698Courtesy of DAIMLERCHRYSLER CORP.
