Section 64 (Doors - Rear): Door: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align and position door on vehicle.

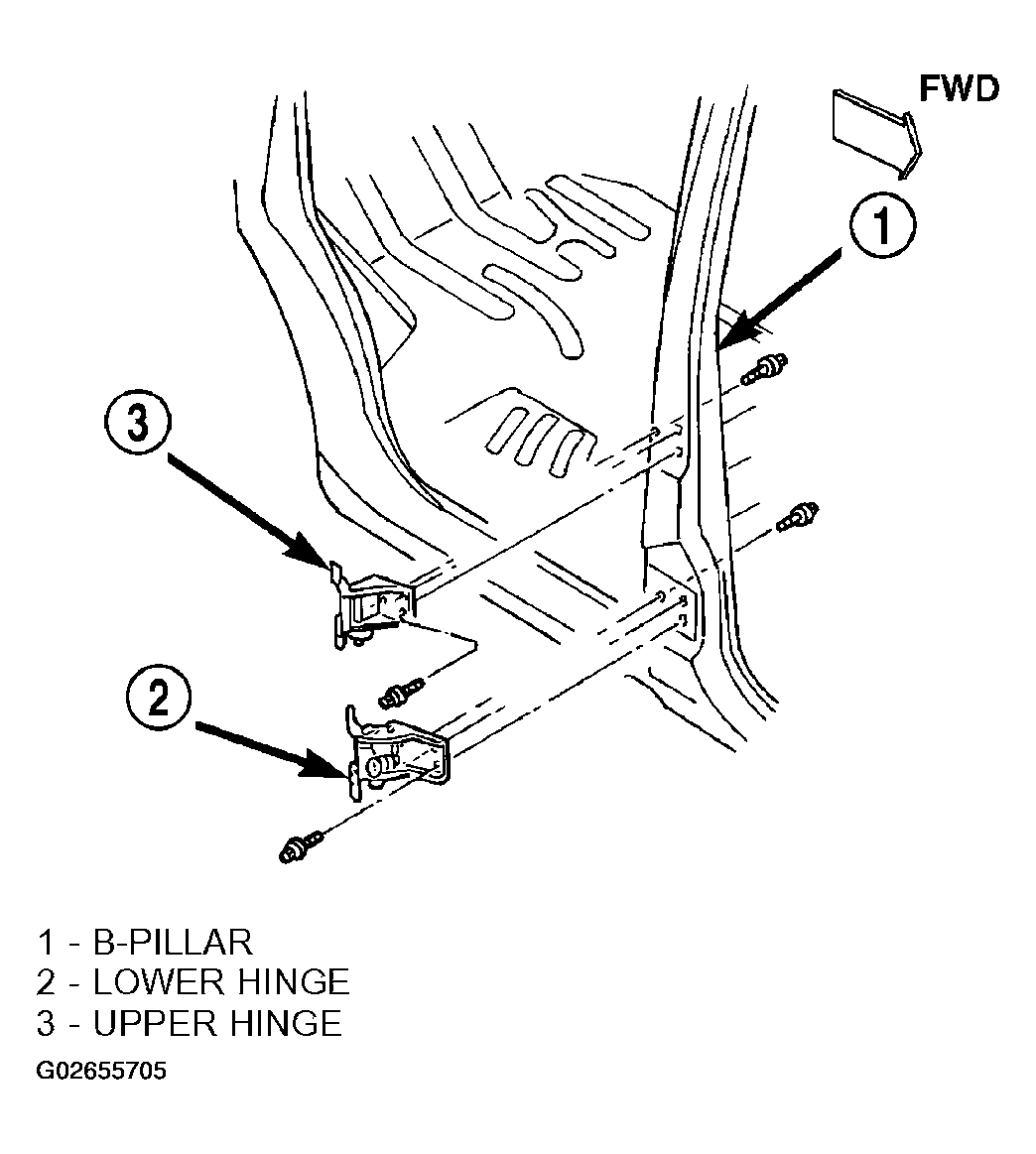

  2. Install bolts attaching hinge to B-pillar (Figure ) and tighten to 28 N.m (21 ft. lbs.).
  3. Connect door wire harness connector.
  4. Install B-pillar trim. (Refer to INSTALLATION )
