Door Glass: Removal
WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Remove inner beltline weatherstrip. (Refer to REMOVAL )
- Remove outer beltline weatherstrip. (Refer to REAR DOOR OUTER BELT WEATHERSTRIP )
- Remove the door waterdam. (Refer to BODY/DOORS-REAR/WATERDAM-REMOVAL )

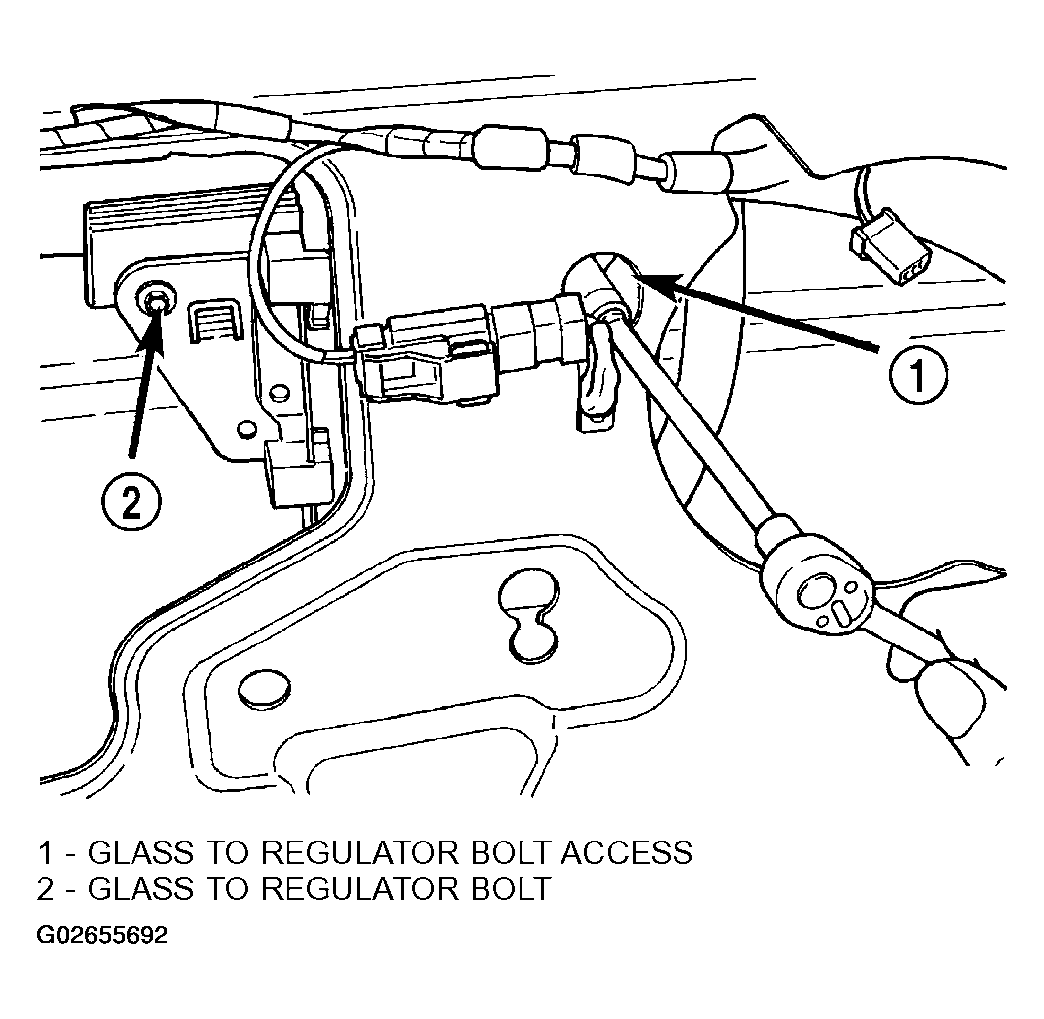

- Lower the window glass enough to access the regulator bolt (Figure ).
- Remove the window glass to regulator bolts.
- Raise the window glass manually.
- Remove the front lower glass run channel. (Refer to BODY/DOORS-REAR/GLASS RUN CHANNEL-REMOVAL )
- Lower the glass.

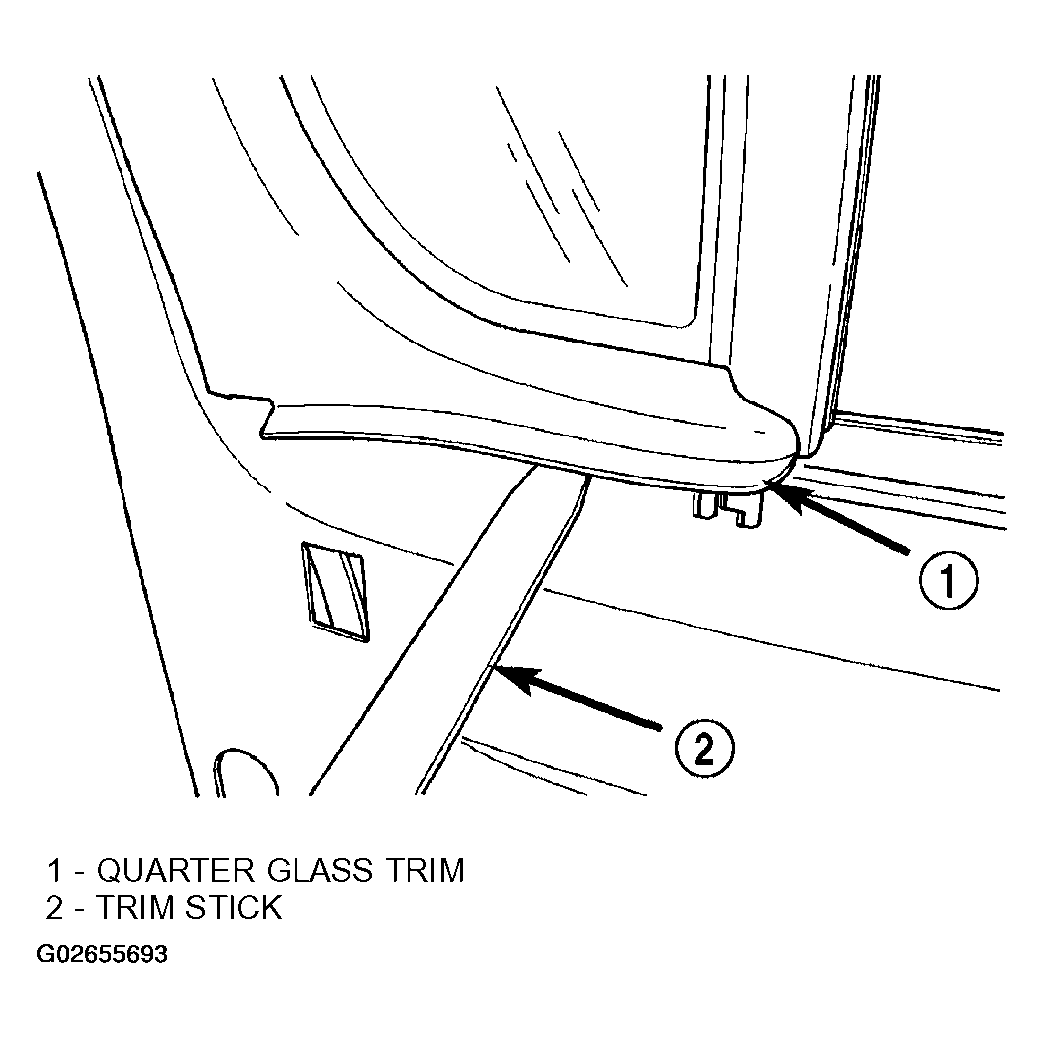

- Using a trim stick C-4755 or equivalent, pry up the inside edge of the quarter glass trim (Figure ).
- Partially remove front upper window weatherstrip.
- Raise the glass and remove.
