Oil Pan: Removal: Removal-4X4

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: 4X4 vehicles equipped with a 4.7L engine must have the front axle removed before the oil pan can be removed.
  1. Remove the front axle from vehicle. Refer to FRONT AXLE-C205F .
  2. Remove the structural dust cover (Refer to ENGINE/ENGINE BLOCK/STRUCTURAL COVER -REMOVAL ) (Fig 1) using sequence shown.

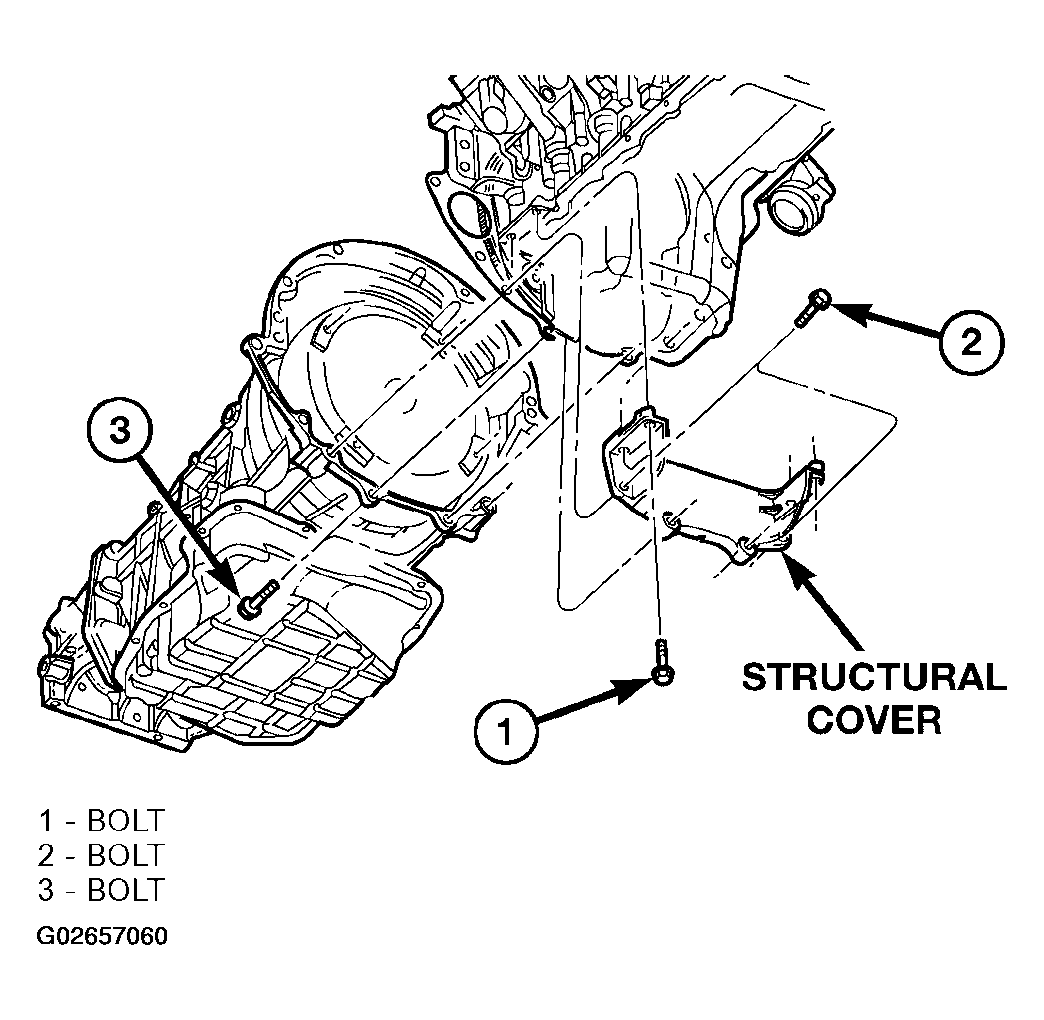

    Fig 1: Removing Structural Dust Cover
    G02657060Courtesy of DAIMLERCHRYSLER CORP.
  3. Drain the engine oil and remove oil filter.
    NOTE: Do not pry on oil pan or oil pan gasket. Gasket is mounted to engine and does not come out with oil pan.
  4. Remove the oil pan mounting bolts and oil pan (Fig 2).
    Fig 2: Removing Oil Pan Mounting Bolts and Oil Pan
    G02657061Courtesy of DAIMLERCHRYSLER CORP.
  5. Unbolt oil pump pickup tube and remove tube and oil pan gasket from engine.
