Structural Cover: Removal
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Raise vehicle on hoist.
- Remove the left hand exhaust pipe from exhaust manifold.
- Loosen the right hand exhaust manifold-to-exhaust pipe retaining bolts.

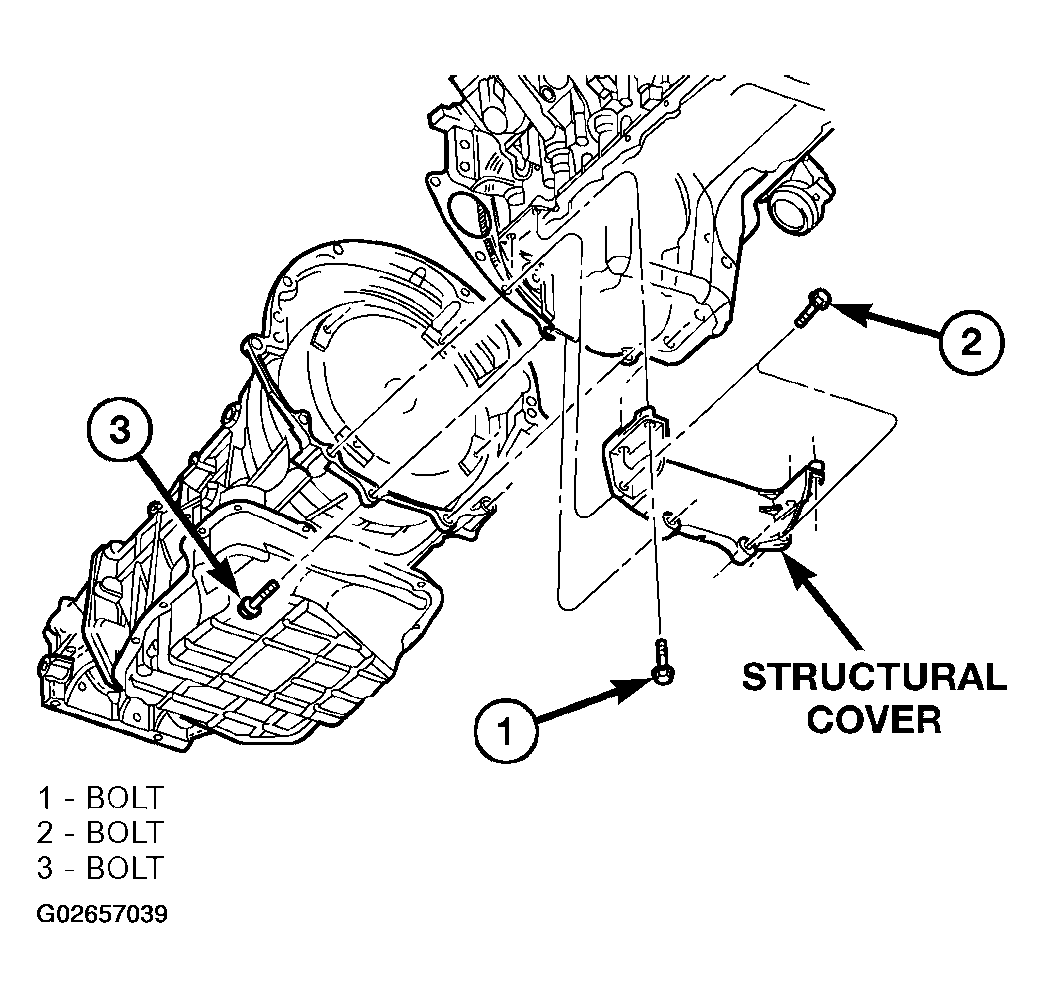

- Remove the eight bolts retaining structural cover (Fig 1) in the sequence shown.
- Pivot the exhaust pipe downward and remove the structural cover.
