Oil Pan: Installation: Installation-4X4

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the oil pan gasket mating surface of the bedplate and oil pan.
  2. Position the oil pan gasket and pickup tube with new o-ring. Install the mounting bolt and nuts. Tighten bolt and nuts to 28 N.m (20 ft. lbs.).

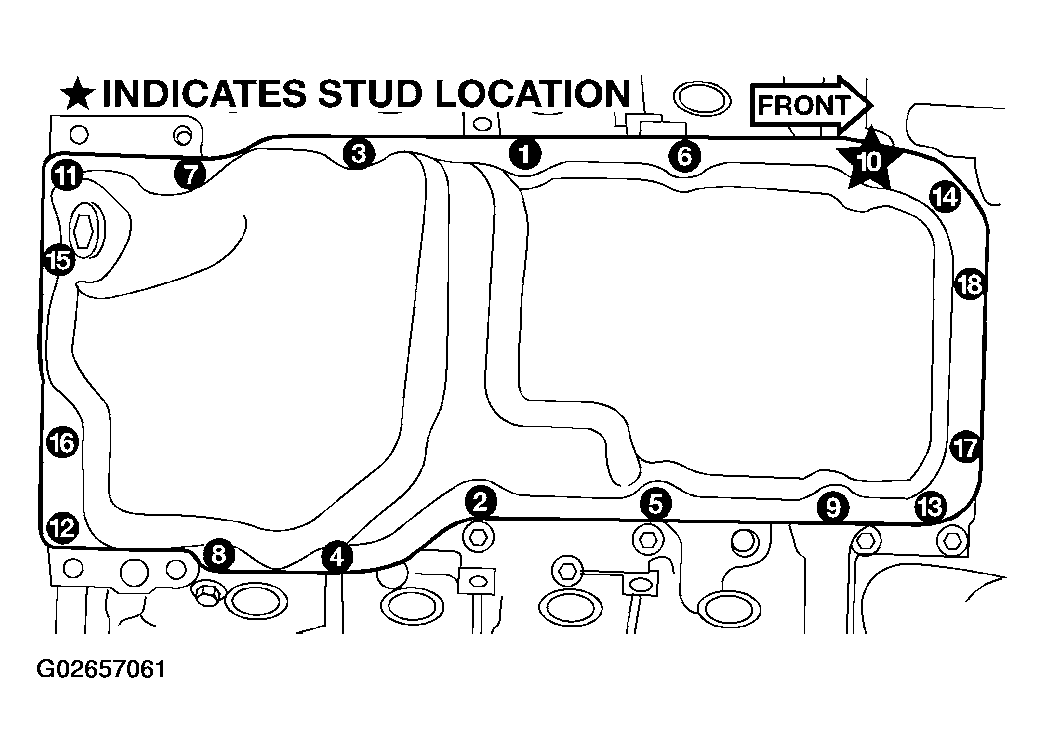

  3. Position the oil pan and install the mounting bolts. Tighten the mounting bolts to 15 N.m (11 ft. lbs.) in the sequence shown (Figure).
  4. Install structural dust cover (Refer to ENGINE/ENGINE BLOCK/STRUCTURAL COVER -INSTALLATION ).
  5. Install oil filter.
  6. Install front axle. Refer to DIFFERENTIAL AND DRIVELINE.
  7. Lower vehicle.
  8. Fill engine oil.
  9. Start engine check for leaks.
