Structural Cover: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The structural cover must be installed as described in the following steps. Failure to do so will cause severe damage to the cover.
  1. Position the structural cover in the vehicle.
  2. Install all four bolts retaining the cover-to-engine. DO NOT tighten the bolts at this time.
  3. Install the four cover-to-transmission bolts. Do NOT tighten at this time.
    CAUTION: The structural cover must be held tightly against both the engine and the transmission bell housing during tightening sequence. Failure to do so may cause damage to the cover.
  4. Starting with the two rear cover-to-engine bolts, tighten bolts (1) (Fig 1) to 54 N.m (40 ft. lbs.), then tighten bolts (2) (Fig 1) and (3) to 54 N.m ( 40 ft. lbs.) in the sequence shown.

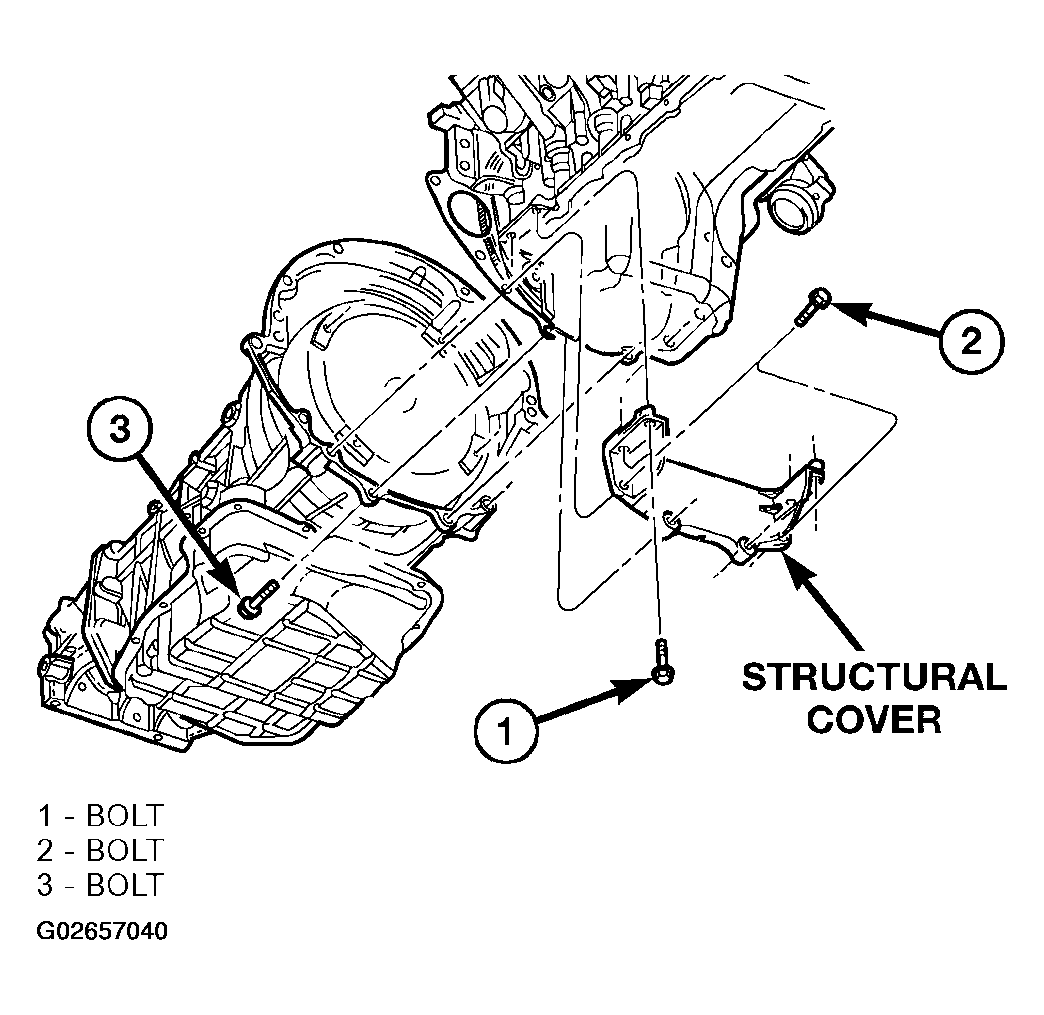

    Fig 1: Installing Structural Cover
    G02657040Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the exhaust pipe on left hand exhaust manifold.
  6. Tighten exhaust manifold-to-exhaust pipe retaining bolts to 20-26 N.m (15-20 ft. lbs.).
