Oil Pan: Installation: Installation-4X2

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the oil pan gasket mating surface of the bedplate and oil pan.
  2. Position the oil pan gasket and pickup tube with new o-ring. Install the mounting bolt and nuts. Tighten bolt and nuts to 28 N.m (20 ft. lbs.).

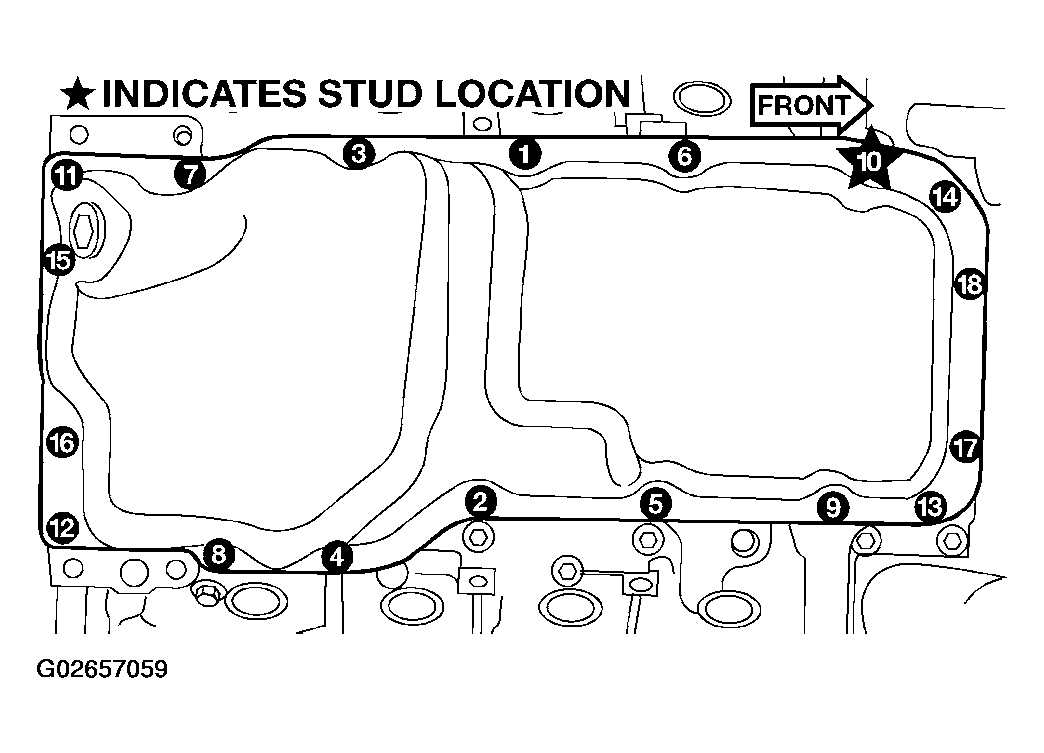

  3. Position the oil pan and install the mounting bolts. Tighten the mounting bolts to 15 N.m (11 ft. lbs.) in the sequence shown (Figure).
  4. Raise the engine and remove the blocks of wood.

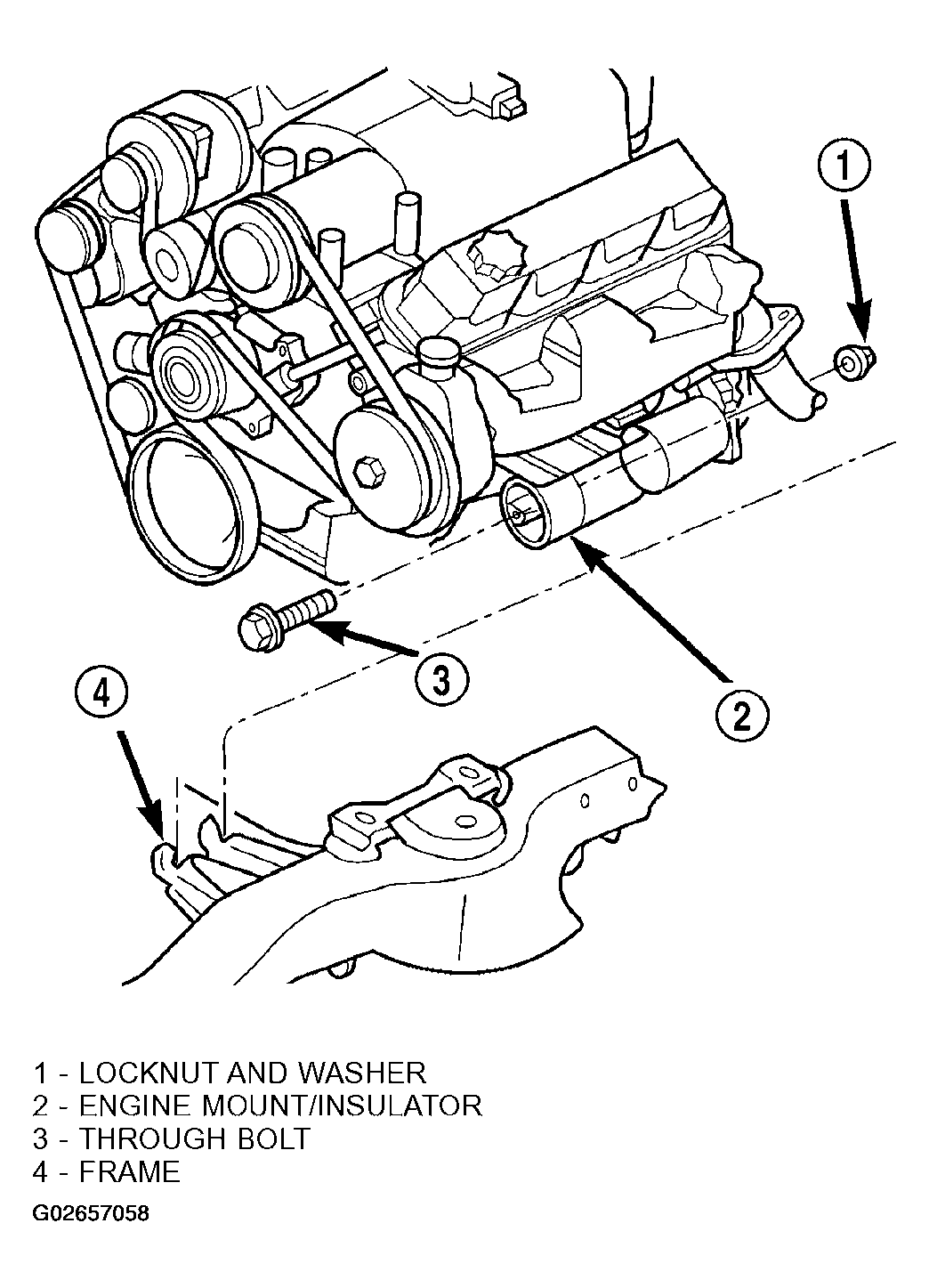

  5. Lower engine and install both the left and right side engine mount through bolts (Figure). Tighten the nuts to 68 N.m (50 ft. lbs.).
  6. Remove jack and install oil filter.
  7. Install structural dust cover (Refer to ENGINE/ENGINE BLOCK/STRUCTURAL COVER -INSTALLATION ).
  8. Install exhaust pipe onto exhaust manifolds.
  9. Lower vehicle.
  10. Install intake manifold (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD INSTALLATION ).
  11. Install throttle body resonator and air inlet hose.
  12. Install upper fan shroud.
  13. Fill cooling system (Refer to STANDARD PROCEDURE-REFILLING COOLING SYSTEM - 4.7L ).
  14. Fill engine oil.
  15. Start engine and check for leaks.
