Removal-Left Cylinder Head

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative cable from the battery.
  2. Raise the vehicle on a hoist.
  3. Disconnect the exhaust pipe at the left side exhaust manifold.
  4. Drain the engine coolant. Refer to STANDARD PROCEDURE-DRAINING COOLING SYSTEM 4.7L .
  5. Lower the vehicle.
  6. Remove the intake manifold (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD REMOVAL ).
  7. Remove the cylinder head cover (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S)-REMOVAL ).
  8. Remove the fan shroud and fan blade assembly.
  9. Remove accessory drive belt (Refer to DRIVE BELTS ).
  10. Remove the power steering pump and set aside.
  11. Rotate the crankshaft until the damper timing mark is aligned with TDC indicator mark (Fig 1).

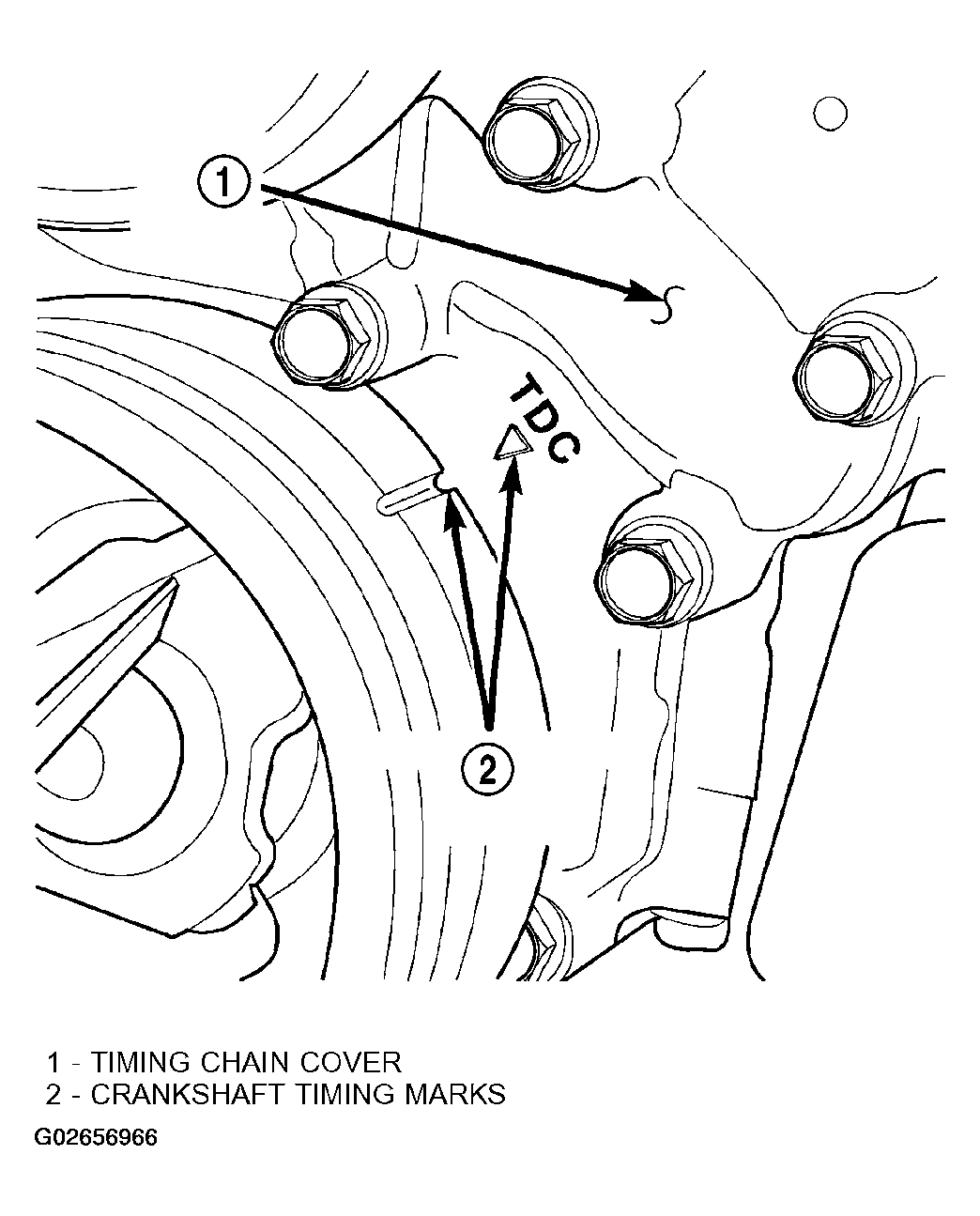

    Fig 1: Locating Engine Top Dead Center (TDC) Indicator Mark
    G02656966Courtesy of DAIMLERCHRYSLER CORP.
  12. Verify the V8 mark on the camshaft sprocket is at the 12 o'clock position (Fig 2). Rotate the crankshaft one turn if necessary.

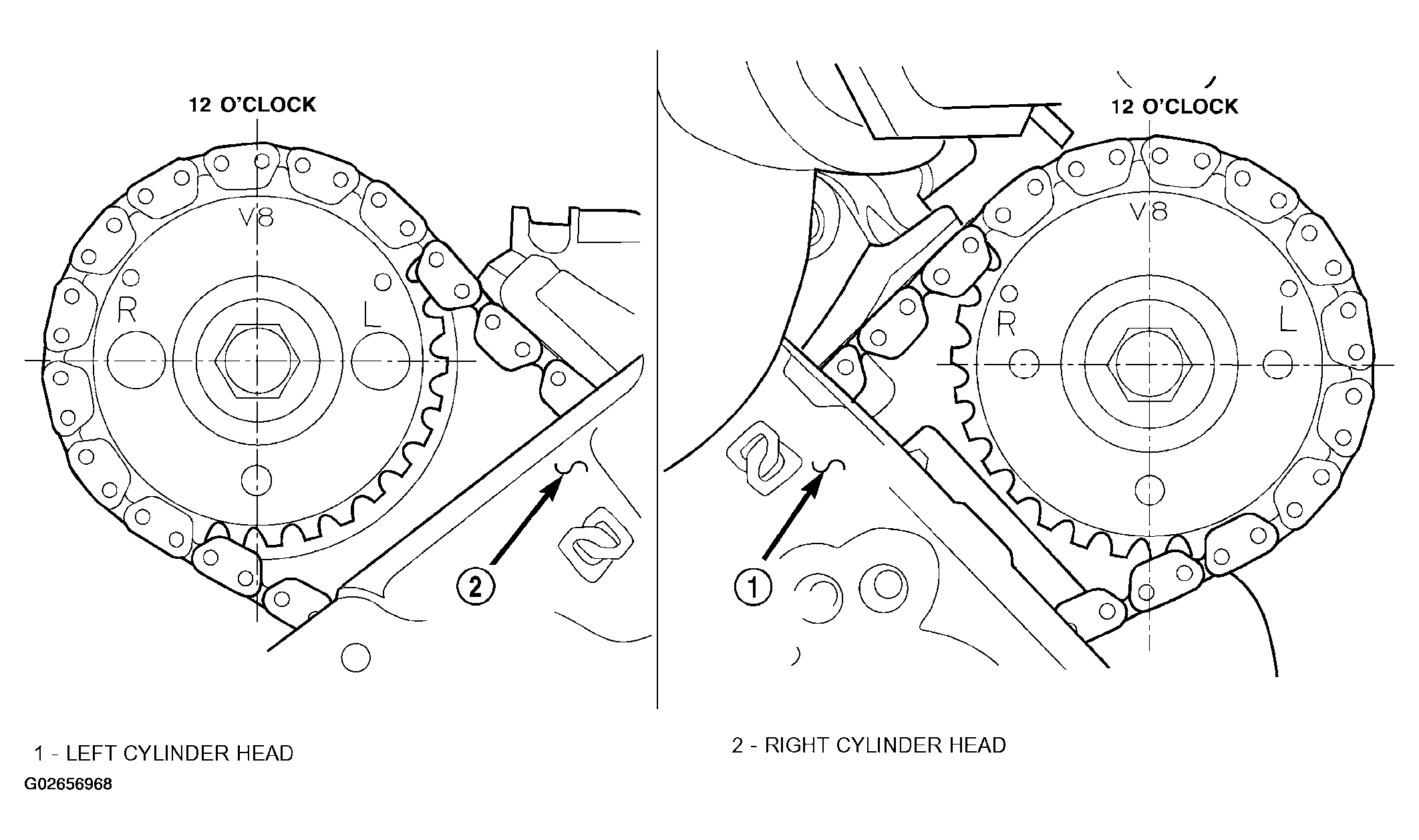

    Fig 2: Identifying Camshaft Sprocket V8 Marks
    G02656968Courtesy of DAIMLERCHRYSLER CORP.
  13. Remove the crankshaft damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER -REMOVAL ).
  14. Remove the timing chain cover (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S)-REMOVAL ).
  15. Lock the secondary timing chains to the idler sprocket using Special Tool 8515 (Fig 3).

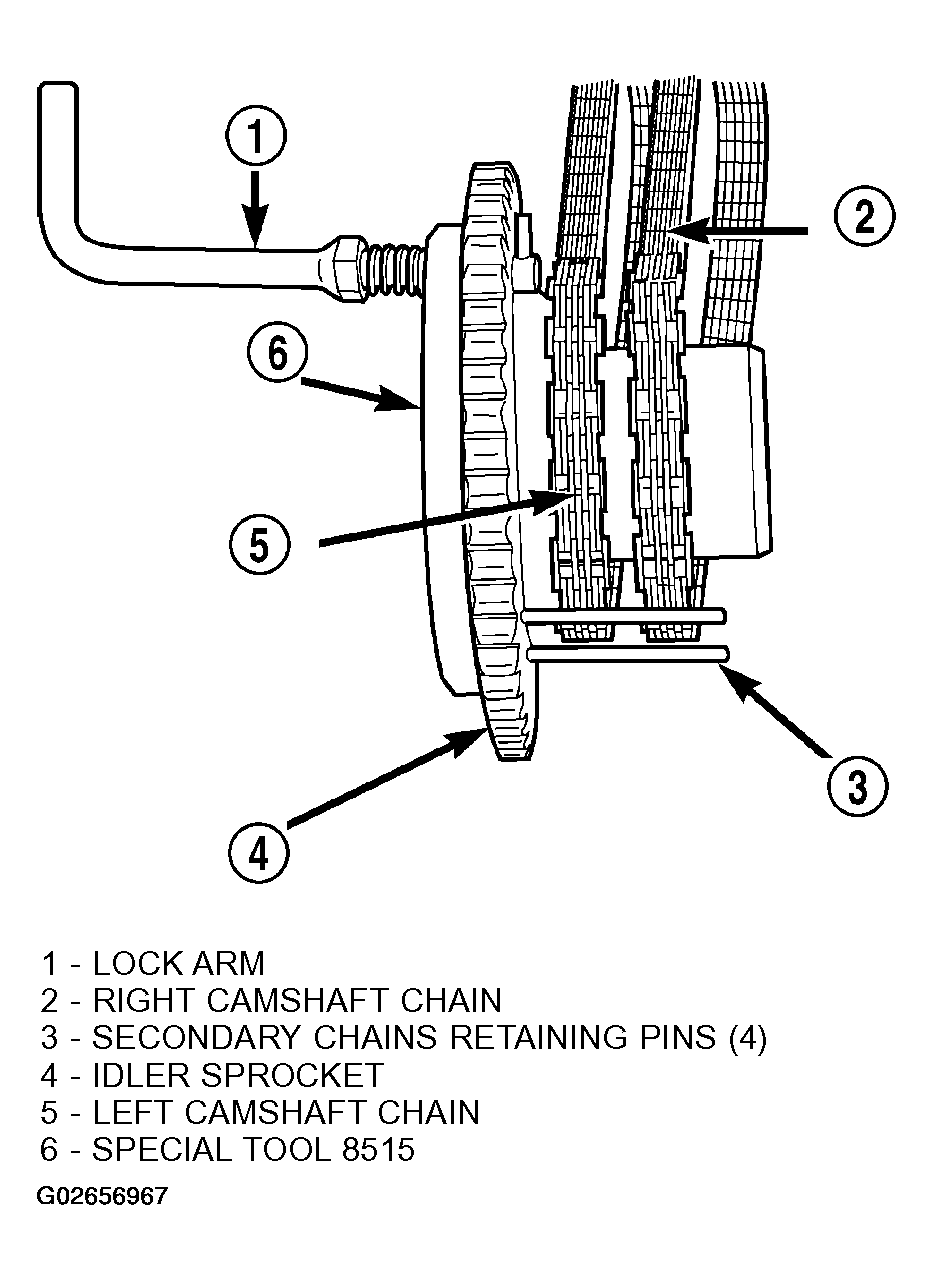

    Fig 3: Using Special Tool 8515 To Hold Chains To Idler Sprocket
    G02656967Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: Mark the secondary timing chain prior to removal to aid in installation.
  16. Mark the secondary timing chain, one link on each side of the V8 mark on the camshaft drive gear (Fig 2).
  17. Remove the left side secondary chain ten-sioner (Refer to 9-ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS-REMOVAL ).
  18. Remove the cylinder head access plug (Fig 4).
    Fig 4: Identifying Right And Left Cylinder Head Access Plugs
    G02656969Courtesy of DAIMLERCHRYSLER CORP.
  19. Remove the left side secondary chain guide (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS-REMOVAL ).
  20. Remove the retaining bolt and the camshaft drive gear.
    CAUTION: Do not allow the engine to rotate. Severe damage to the valve train can occur.
    CAUTION: Do not overlook the four smaller bolts at the front of the cylinder head. Do not attempt to remove the cylinder head without removing these four bolts.
    NOTE: The cylinder head is attached to the cylinder block with fourteen bolts.
  21. Remove the cylinder head retaining bolts.
  22. Remove the cylinder head and gasket. Discard the gasket.
    CAUTION: Do not lay the cylinder head on its gasket sealing surface, due to the design of the cylinder head gasket any distortion to the cylinder head sealing surface may prevent the gasket from properly sealing resulting in leaks.
