Timing Belt/Chain And Sprockets: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative cable.
  2. Drain cooling system (Refer to STANDARD PROCEDURE--DRAINING COOLING SYSTEM 3.9L/5.9L ).
  3. Remove timing chain cover (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S)-REMOVAL  ).
  4. Rotate crankshaft to align timing marks (Fig 1 ) to #1 TDC.

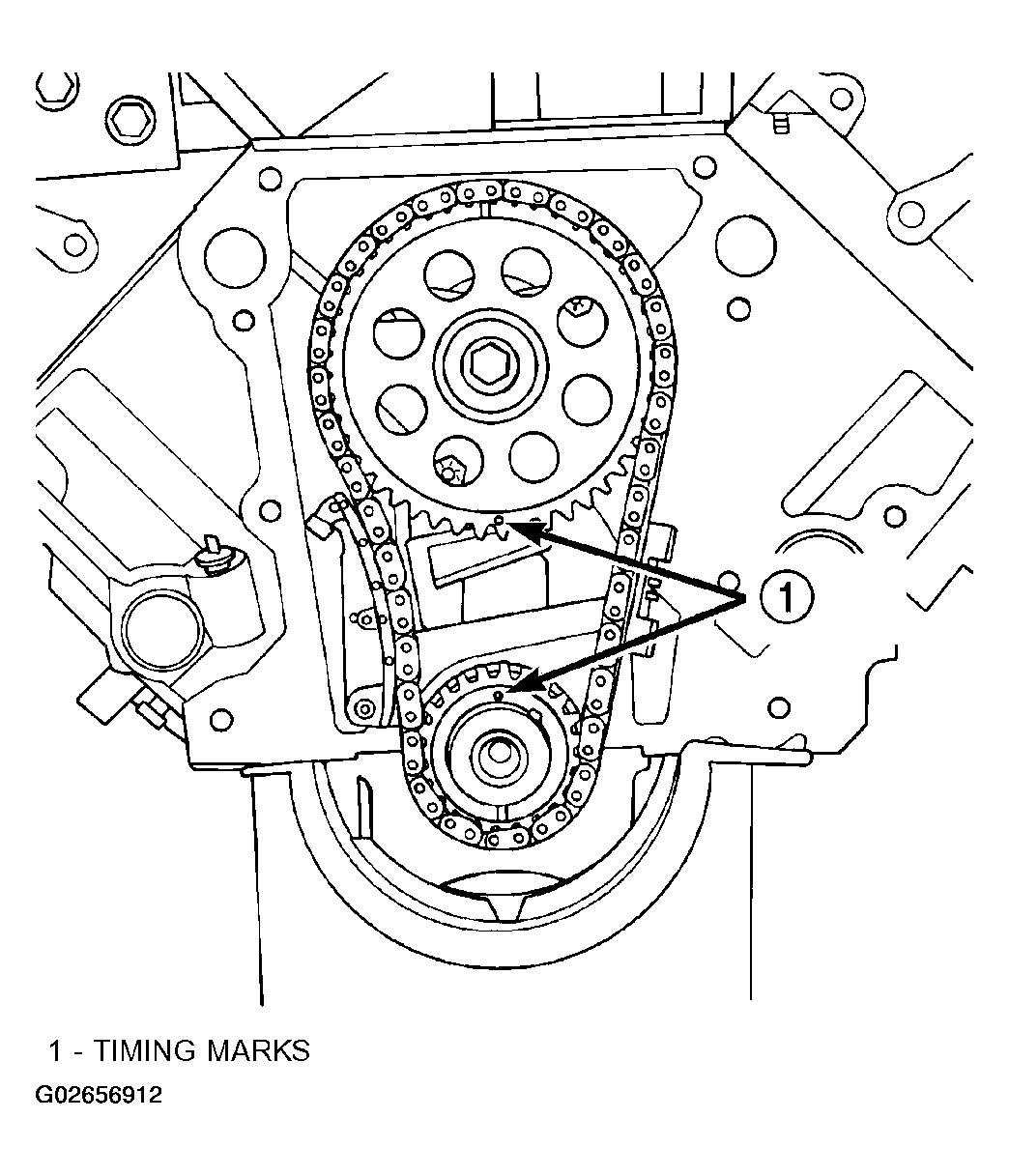

    Fig 1: Aligning Timing Marks
    G02656912Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove camshaft sprocket attaching bolt and remove timing chain with crankshaft and camshaft sprockets.
  6. Slip crankshaft sprocket onto crankshaft and compress tensioner shoe by placing a large screwdriver between crankshaft sprocket and tensioner shoe (Fig 2 ). Compress shoe until hole in shoe lines up with hole in bracket. Slide a suitable pin into the holes (Fig 2 ) and remove screwdriver.

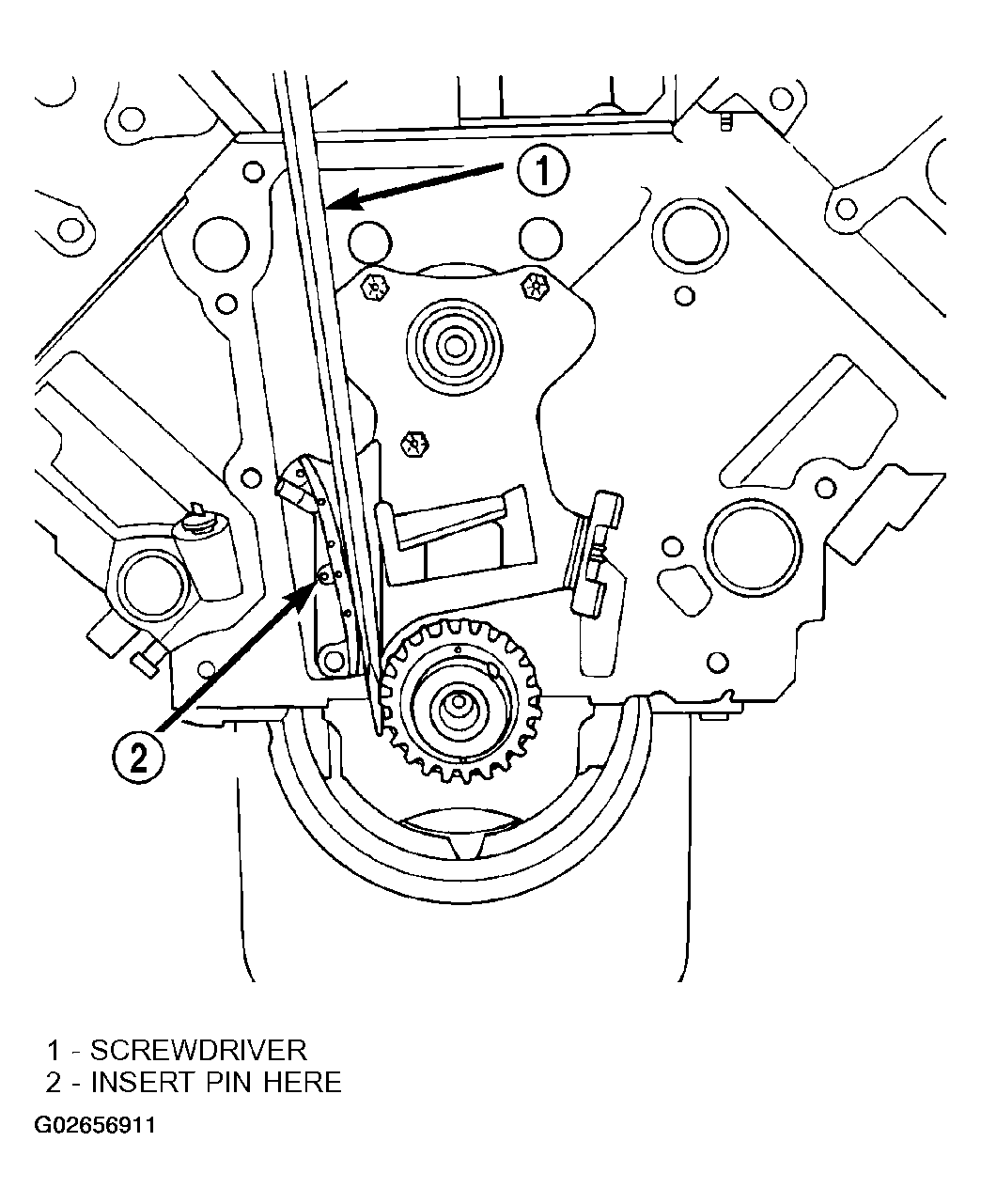

    Fig 2: Compressing Tensioner For Chain Installation
    G02656911Courtesy of DAIMLERCHRYSLER CORP.
  7. If tensioner assembly is to be replaced, remove the three tensioner to block bolts and remove tensioner assembly.
