Standard Procedure-Draining Cooling System 3.9L/5.9L Engine

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: DO NOT REMOVE CYLINDER BLOCK DRAIN PLUGS OR LOOSEN RADIATOR DRAINCOCK WITH SYSTEM HOT AND UNDER PRESSURE. SERIOUS BURNS FROM COOLANT CAN OCCUR.

DO NOT WASTE reusable coolant. If solution is clean, drain coolant into a clean container for reuse.

  1. Remove radiator pressure cap.
  2. Loosen radiator petcock.
  3. Remove cylinder block drain plugs. Refer to (Fig 1).

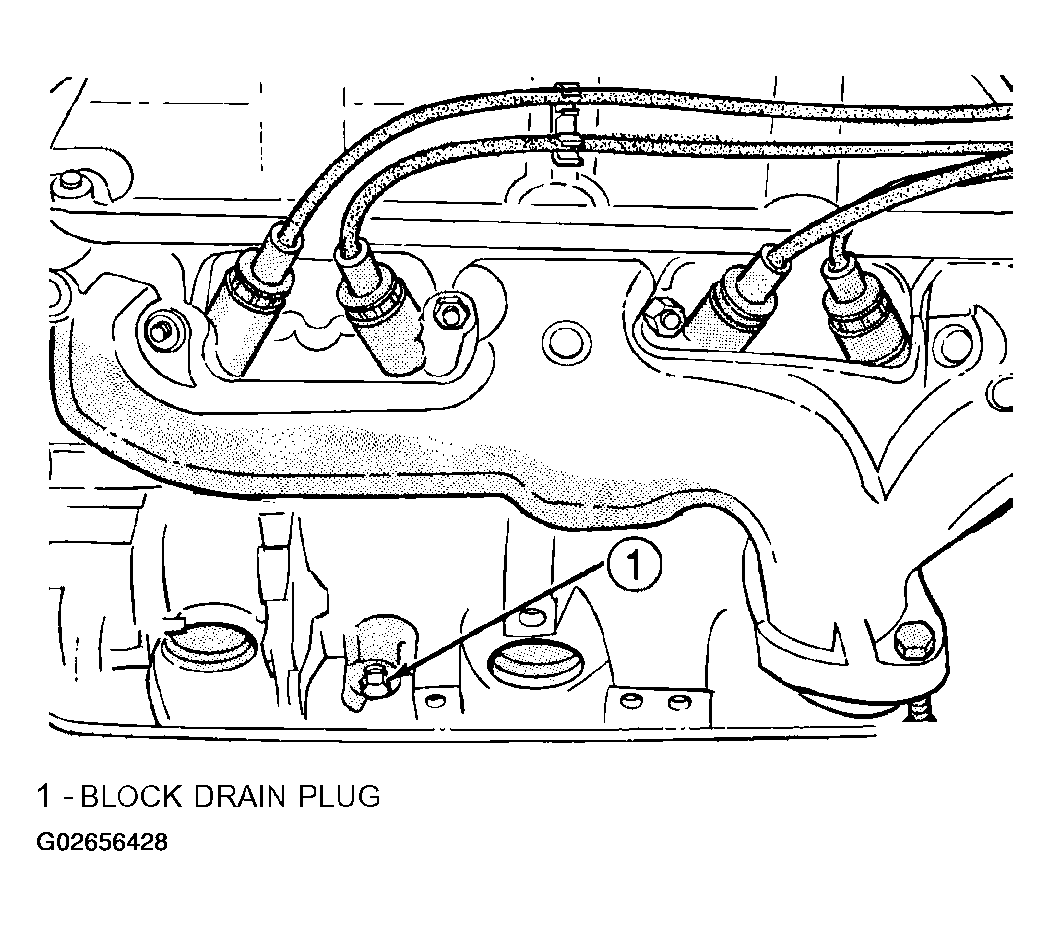

Fig 1: Locating Cylinder Block Drain Plug
G02656428Courtesy of DAIMLERCHRYSLER CORP.
