Crankshaft Oil Seal-Front: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Place the smaller diameter of the oil seal over Front Oil Seal Installation Tool 6635 (Fig 1 ). Seat the oil seal in the groove of the tool.

Fig 1: Placing Oil Seal On Installation Tool 6635
Courtesy of DAIMLERCHRYSLER CORP.
Position the seal and tool onto the crankshaft (Fig 2 ).

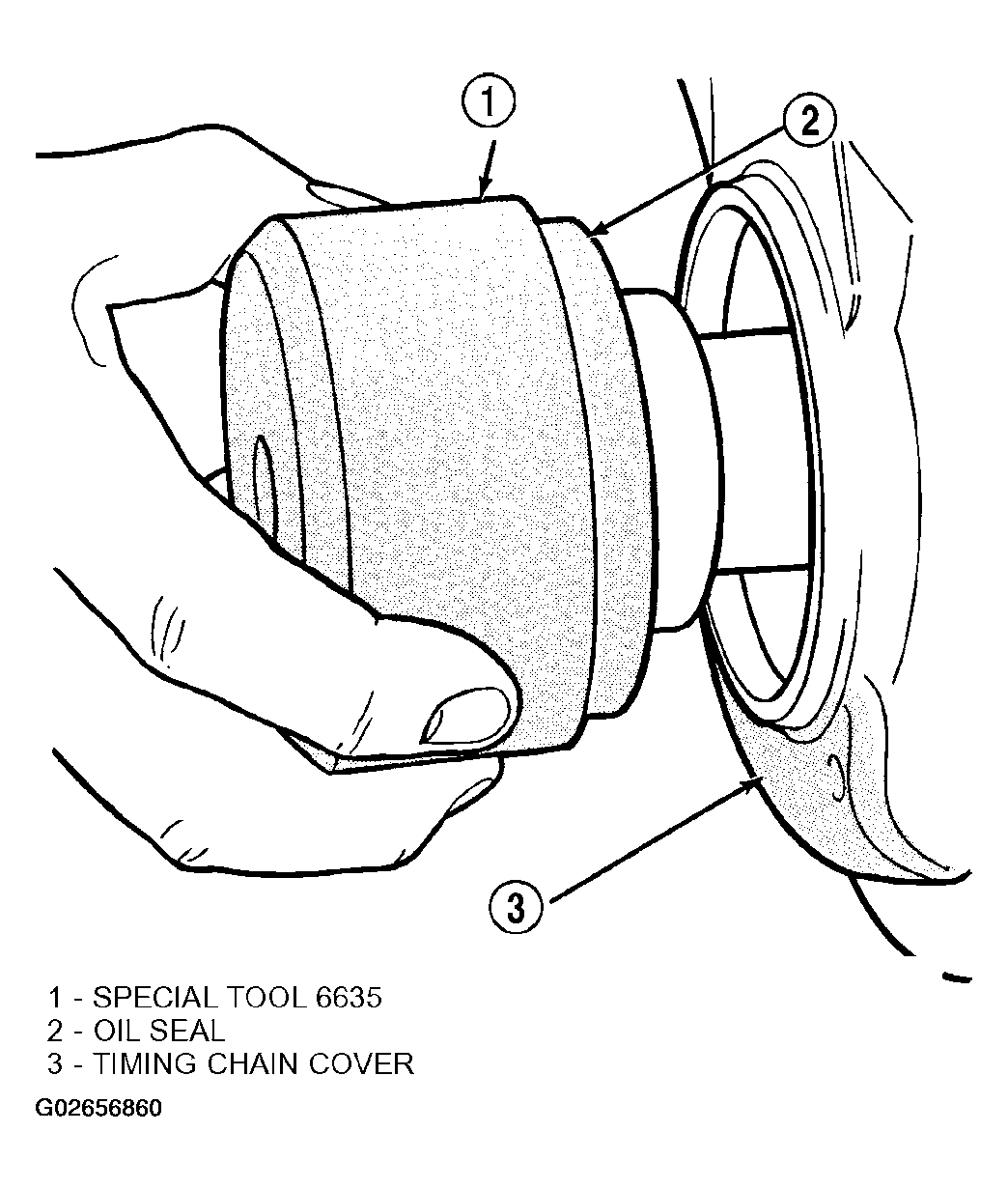

Fig 2: Positioning Tool And Seal Onto Crankshaft
Courtesy of DAIMLERCHRYSLER CORP.
Using the vibration damper bolt, tighten the bolt to draw the seal into position on the crankshaft (Fig 3 ).

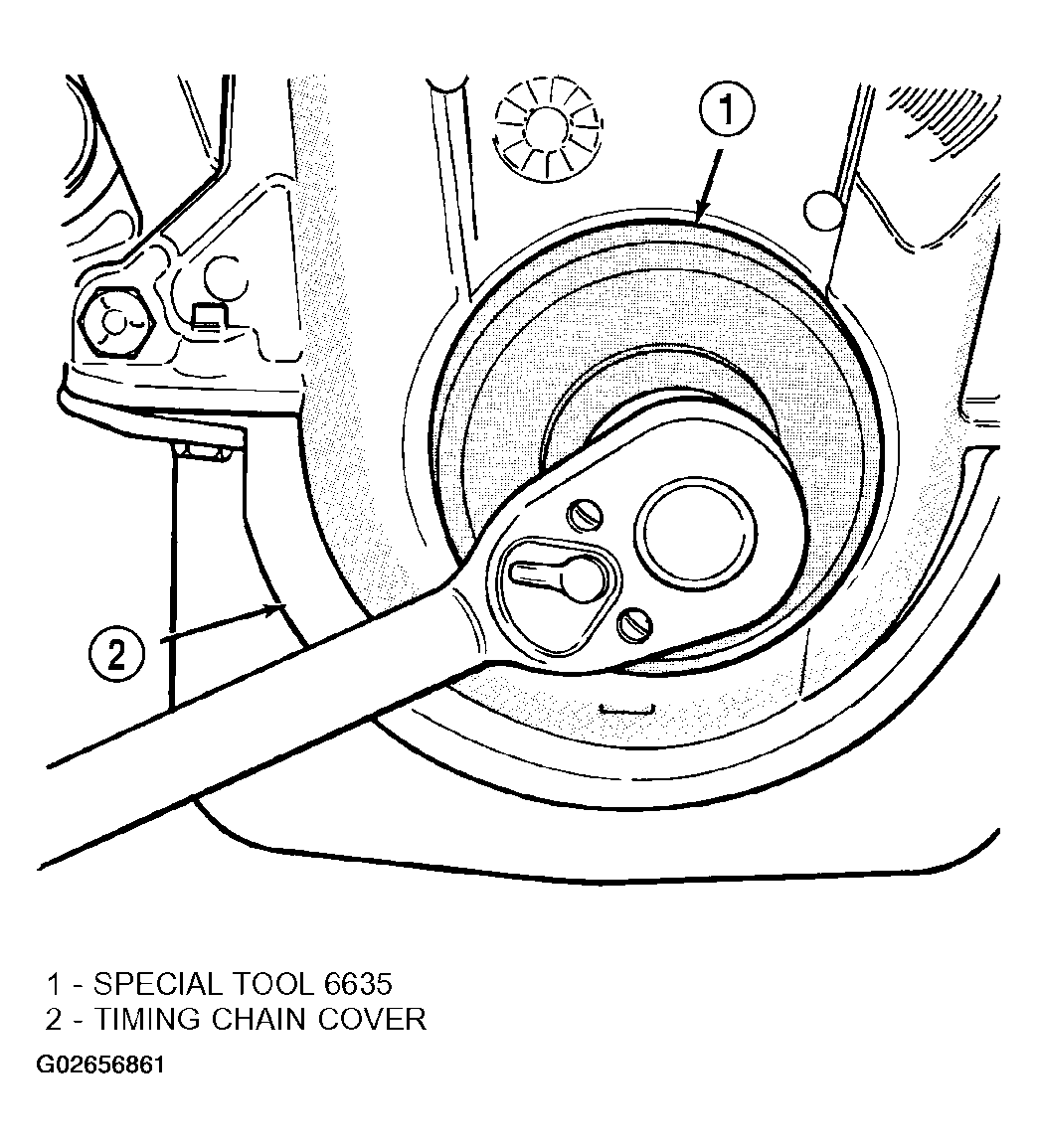

Fig 3: Installing Oil Seal
Courtesy of DAIMLERCHRYSLER CORP.
Remove the vibration damper bolt and seal installation tool.
Inspect the seal flange on the vibration damper.
Install the vibration damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER-INSTALLATION ).
Connect the negative cable to the battery.
