Vibration Damper: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the vibration damper onto the crankshaft.
  2. Place installing tool, part of Puller Tool Set C-3688, in position and press the vibration damper onto the crankshaft (Fig 1 ).

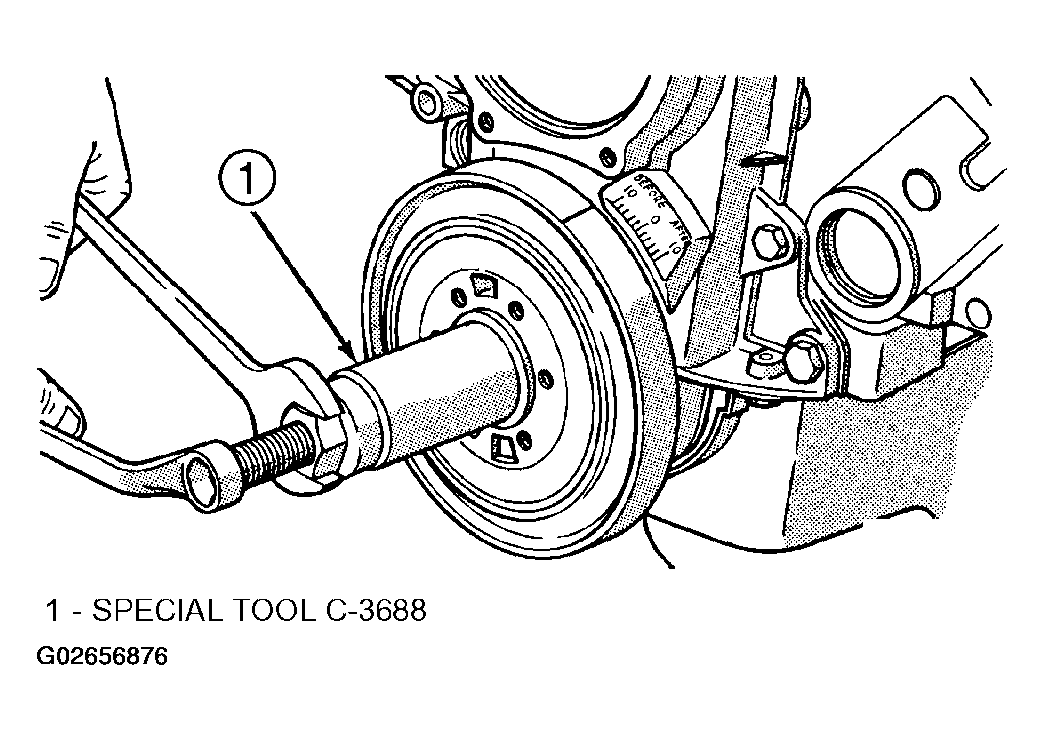

    Fig 1: Installing Vibration Damper
    G02656876Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the crankshaft bolt and washer. Tighten the bolt to 244 N-m (180 ft. lbs.) torque.
  4. Install the crankshaft pulley. Tighten the pulley bolts to 23 N-m (200 in. lbs.) torque.
  5. Install the serpentine belt (Refer to DRIVE BELTS ).
  6. Install viscous fan drive and fan.
  7. Install the fan shroud.
  8. Connect the negative cable to the battery.
