Removal & Installation (4-door Model)

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Move appropriate front seat to forward position. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Lift lower seat belt anchor cover and remove anchor bolt. Remove seat belt shoulder anchor cover and bolt. See Fig 1. Remove upper and lower B-pillar trim panels. Remove seat belt web guide retaining screws and web guide. Disconnect seat belt pretensioner/retractor electrical connectors. Remove seat belt retractor mounting bolt and pretensioner/retractor assembly.
  3. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . DO NOT connect negative battery cable at this time. Perform air bag system check to ensure air bag system is functioning properly. See AIR BAG SYSTEM CHECK  under SYSTEM OPERATION CHECK.

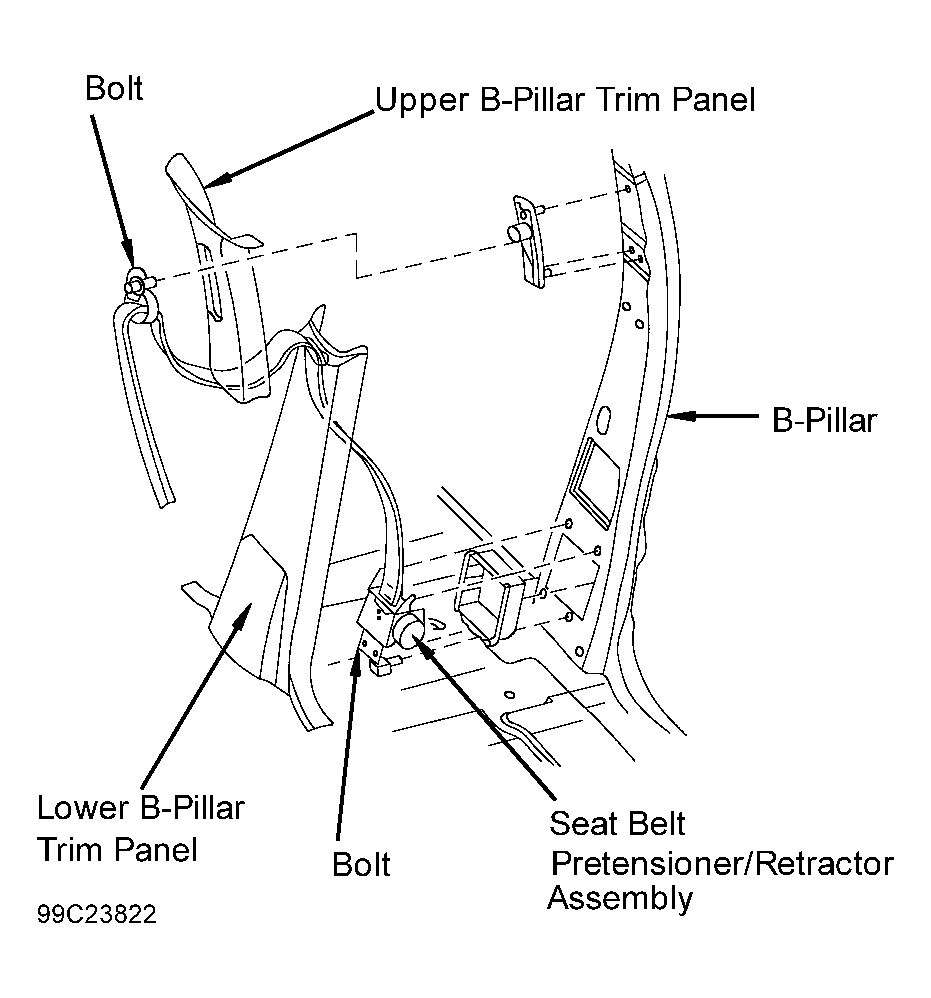

Fig 1: Identifying Seat Belt Pretensioner
G99C23822Courtesy of DAIMLERCHRYSLER CORP.
